UTS0104S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 4P SQ FLANGE SOCKET RECEPTACLE SIZE 10 CONN HSG RCPT 4POS PNL MNT FEM 4 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 10 with Female Contacts RECEPTACLE, SIZE10, 4WAY, SKT UTSSQFLRCPT10-4 CONN HSG RCPT 4POS WALL MNT SKT Panel Mount Socket UTS Trim Trio UTS Poles=4 Female Housing size10, UTS0104S, Souriau Souriau 4路 面板安装 直向 连接器 插座 , 母触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 500 V ac/dc | 最大额定电流 | 13A |
机械参数
| 重量 | 0.013 | 包装方式 | Bulk |
| 外壳尺寸 | 10 | 方向 | Keyed |
| 外壳样式 | Square Flange | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Panel Mount, Flange |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 外壳材料（壳体） | Thermoplastic |
| 插入角度 | 10-4 | 第一触头极性 | Female |
| 触点数 | 4 | 位数 | 4 |
| 外壳尺寸-插件 | 10-4 | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | UTS | 产品特性 | Cap (Cover), Dust |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles |
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | +105°C |
文档与媒体
相关型号
UTS710CCRR
Souriau
Standard Circular Connector Receptacle Ring Shell Size 10, Red CONN RCPT CODING RING SIZE10 RED RECEPTACLE COLOR CODING SIZE 10 - RED connectoraccessory,uts-series,optionalcolorcodedring,receptsize10,red Coding ring for receptacles size 10, UTS710CCRR, Souriau Souriau 红色 连接器环,适合外壳尺寸 10
UTS710CCRY
Souriau
Standard Circular Connector Receptacle Ring Shell Sz 10, Yellow CONN RCPT CODING RING SIZE10 YEL RECEPTACLE COLOR CODING SIZE 10 - YELLOW connectoraccessory,uts-series,optionalcolorcodedring,receptsize10,yellow Coding ring for receptacles size 10, UTS710CCRY, Souriau
UTS10DCG
Souriau
Standard Circular Connector Receptacle Dust Cap Shell Size 10 CONN RCPT SEALING CAP SIZE 10 UTS RECEPTACLE DUSTCAP - SIZE 10 Connector Accessories Receptacle Sealing Cap Shell Size 10 connectoraccessory,dustcapforsize10uts-seriesreceptacle Cap for receptacles size 10, UTS10DCG, Souriau
UTS710CCRG
Souriau
Standard Circular Connector Receptacle Ring Shell Size 10, Green CONN RCPT CODING RING SIZE10 GRN RECEPTACLE COLOR CODING SIZE 10 - GREEN connectoraccessory,uts-series,optionalcolorcodedring,receptsize10,green Coding ring for receptacles size 10, UTS710CCRG, Souriau
UTS6JC104P
Souriau
Standard Circular Connector 4P Straight Pin Plug Backshell Size 10 CONN PLUG CABLE 4X1.6 MALE 4 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 10 with Male Contacts connector,plasticcirc,size10,strplugw/bkshl,for4size16pincont,sealed Coupling Plug UTS Trim Trio UTS 4P Male 10, UTS6JC104P, Souriau Souriau 4路 电缆安装 直向 连接器 插头 , 公触点
UTS0104P
Souriau
Standard Circular Connector 4P SQ FLANGE PIN RECEPTACLE SIZE 10 CONN HSNG RCPT 4POS PNL MNT MALE 4 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 10 with Male Contacts UTS,SQFLGRCPT Panel Mount Plug UTS Trim Trio UTS Poles=4 Male Housing size10, UTS0104P, Souriau Souriau 4路 面板安装 直向 连接器 插座 , 公触点

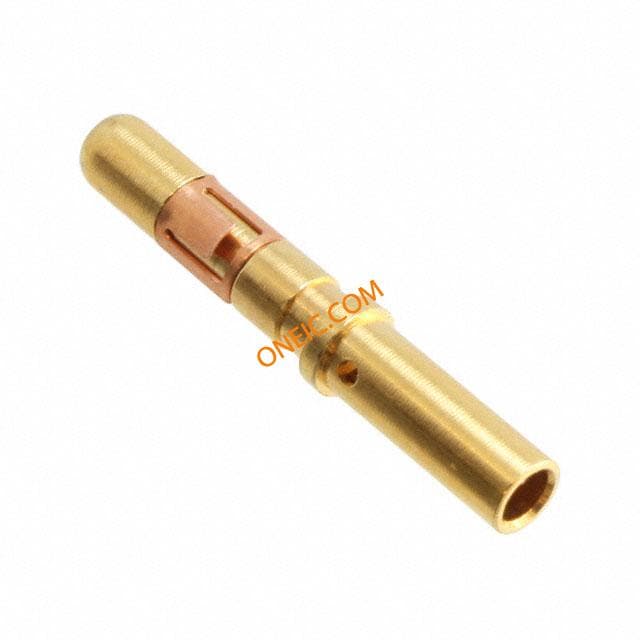

RC16M23K
