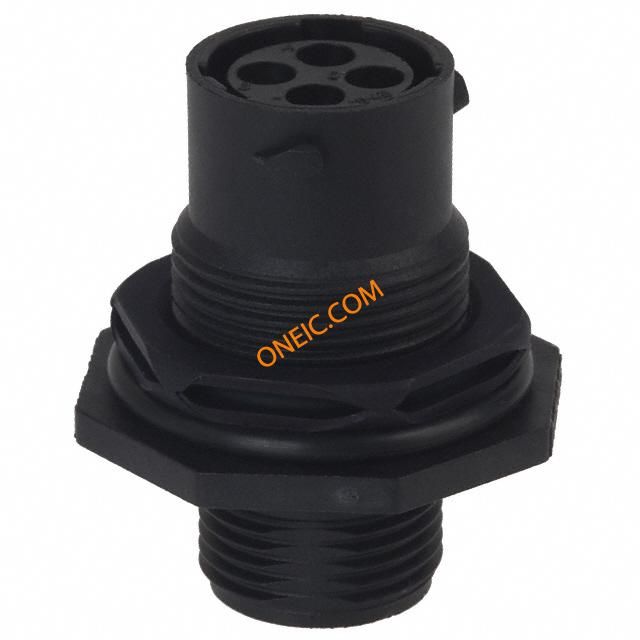

UTS7104S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 4P Strt Socket Plug Jam Nut Size 10 CONN RCPT 4X1.6 FEMALE JAM NUT 4 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 10 with Female Contacts CIRCULAR CONN, RECEPTACLE, 4WAY, JAM NUT connector,plasticcirc,size10,jamnutrecept,for4size16socketcont,sealed CONN HSG RCPT 4POS JAM NUT SKT Panel Mount Sockets UTS Trim Trio UTS 4P Female 10, UTS7104S, Souriau Souriau 4路 面板安装 直向 连接器 插座 , 母触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1280 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Not Applicable | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 125 V ac | 最大额定电流 | 13A |
机械参数
| 重量 | 0.01 | 包装方式 | Bulk |
| 外壳尺寸 | 10 | 方向 | Keyed |
| 外壳样式 | Jam Nut | 端接方式 | Crimp |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Bulkhead - Front Side Nut | 连接器类型 | Receptacle for Female Contacts |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳材料（壳体） | Thermoplastic | 插入角度 | 10-4 |
| 本体材料 | :Thermoplastic | 第一触头极性 | Female |
| 连接器颜色 | :Black | 触点数 | 4 |
| 位数 | 4 | 外壳尺寸-插件 | 10-4 |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | :Jam Nut |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | UTS | 产品特性 | Cap (Cover), Dust |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles |
环境参数
| 插拔次数 | :250 | NEMA 机架尺寸 | :IP68, IP69K |
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | +105°C |
