点击放大查看

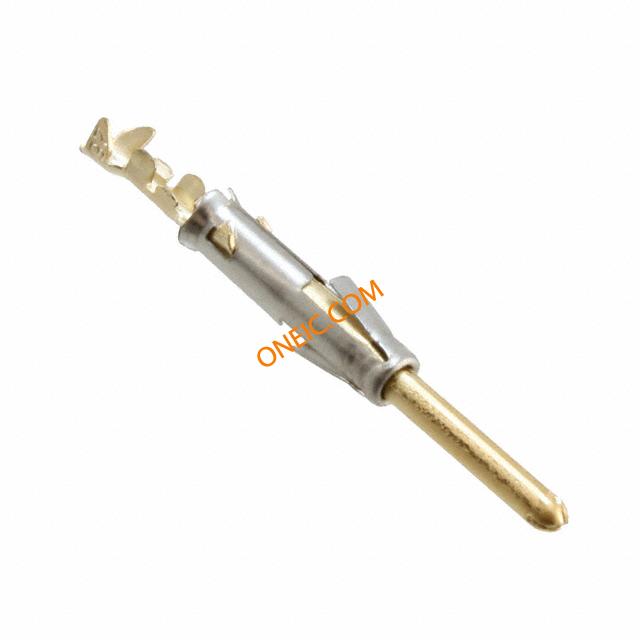

SM24ML-1D70
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Contacts | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 6mΩ | 最大额定电流 | 13 A |
机械参数
| 尺寸 | 16 | 包装方式 | Loose Piece |
| 导线线规 | 24-26 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Rectangular |
| 接触镀层 | Gold Over Nickel | 触头材料 | Copper Alloy |
| 总长度 | 28 | 端接排数 | 压接 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 接触件端接 | Crimp | 接触镀层厚度 | Flash |
| 线规或范围 - mm² | 26 → 24 AWG | ||
产品信息
| 类型 | Stamped | 连接器性别 | PIN |
| 系列 | SMS Qikmate|G-Bantamate|UT-Bantam... | ||
