点击放大查看

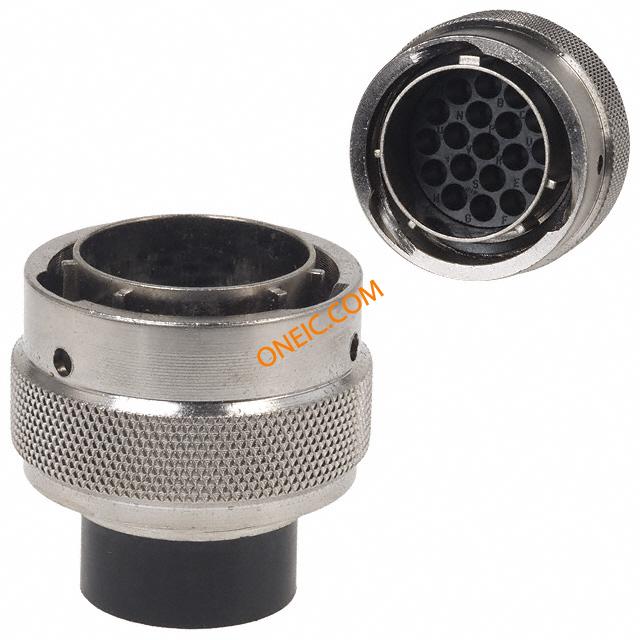

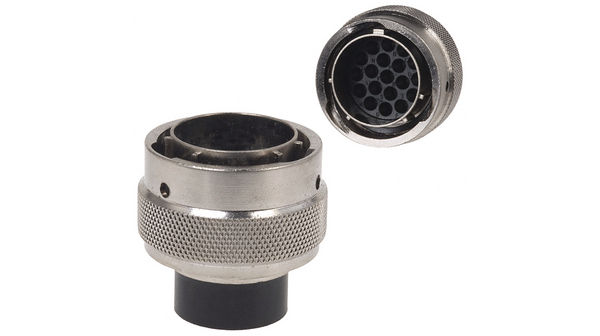

UT061619PH
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 19P Strt Pin Plug Size 16 Conn Metal Circular PIN 19 POS Crimp ST Cable Mount 19 Terminal 1 Port CONN PLUG CABLE 19POS MALE PIN HOUSING, FREE, 19WAY Cable plug UT0 19-pin Trim Trio UT0 19P Male 16, UT061619PH, Souriau |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1039 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 测试电压 | :2000V | 额定电压 | 250 V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.02603 | 直径 | 32.45 |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 16 | 方向 | N (Normal) |
| 端接方式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | 19Signal | 安装类型 | Cable Mount |
| 外壳镀层 | Nickel | 连接器类型 | Plug for Male Contacts |
| 紧固类型 | Bayonet Lock | 外壳材料（壳体） | Zinc Alloy |
| 插入角度 | 16-19 | 本体材料 | :Zinc Alloy |
| 总长度 | 33 | 第一触头极性 | Without Pin Contacts |
| 触点数 | 19 | 位数 | 19 |
| 外壳尺寸-插件 | 16-19 | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 第一连接器安装类型 | :Cable | 外壳尺寸-插入件（转换至） | 16-19 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Circular |
| 连接器性别 | PL | 系列 | UT0 |
| 产品特性 | Shielded | 产品子类型 | Cable Plugs |
环境参数
| 插拔次数 | :500 | NEMA 机架尺寸 | :IP67, IP68, IP69K |
| 防护等级 | IP 67 | 工作温度 | :+105°C |
文档与媒体
相关型号
UT001619SH
Souriau
Standard Circular Connector 19P Sckt Receptacle Wall Mount Size 16 Conn Metal Circular SKT 19 POS Crimp ST Wall Mount 19 Terminal 1 Port Bag CONN RCPT FEMALE 19POS WALL MNT UTO01619SH female square flange receptacle, IP67 and 48h salt spray Souriau UT0 系列 19路 壁挂式 直向 圆形连接器 插座 , 母触点, 卡口式接合
UT071619SH
Souriau
Standard Circular Connector 19P Sckt Receptacle Jam Nut Size 16 CONN RCPT FEMALE 19POS JAM NUT RECEPTACLE, FEMALE, SIZE16, 19WAY Souriau 19路 面板安装 连接器 插座 , 母触芯, 外壳尺寸16
UT016AC
Souriau
Standard Circular Connector Cable Clamp Size 16 With Strain Relief CONN CABLE CLAMP METAL #16 MetalCircularConnector UTO-UTOW cable clamp,s/relief,size 16
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格

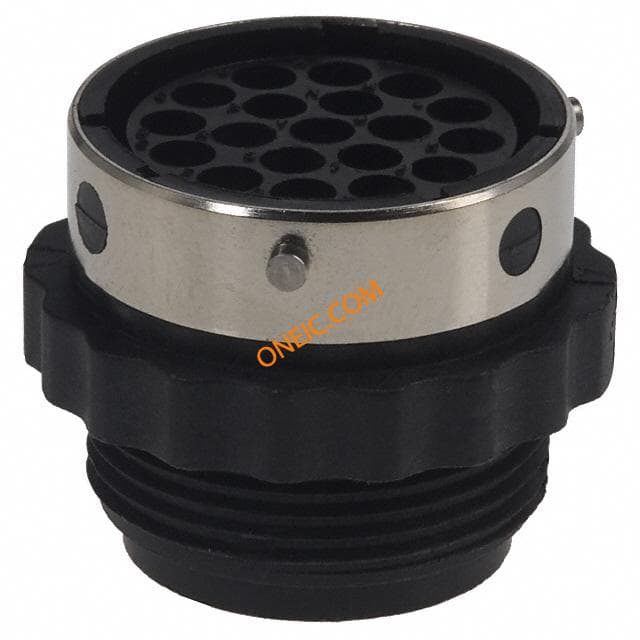

UTG116-19S
Souriau
Standard Circular Connector 19P Sckt Receptacle Cable Mount Size 16 CONN RCPT CABLE FEMALE 19POS CONNECTOR, CIRCULAR, RCPT, SZ16-19, 8POS, PANEL METALOKBANTAMFREEHANGINGRECEPTACLE
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP

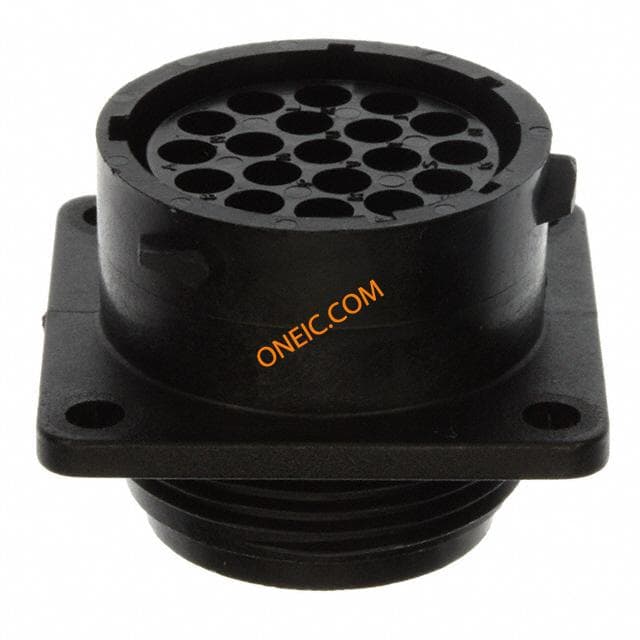

UTP01619SH
Souriau
Standard Circular Connector 19P Sckt Receptacle Wall Mount Size 16 CONN RCPT FEMALE 19POS WALL MNT
SM24M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG GOLD
SM20ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 20-22AWG TIN Tin plate crimp pin contact,22-20awg connectorcomponent,stampedandformedcrimpcontact,size16,for22-20awgwire Contact;Pin;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格
SM24ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimppincontact,size16,26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldFlashAll
SM14ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 14AWG TIN Souriau G-Bantamate, MBG, SMS Qikmate, UT-Bantam, UTG, UTGS, UTP SeriesSize 16 Tin Plated Crimp Pin Connector, 14AWG connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 14 AWG 线规格
SM20M-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG TIN tapeandreelcontacts

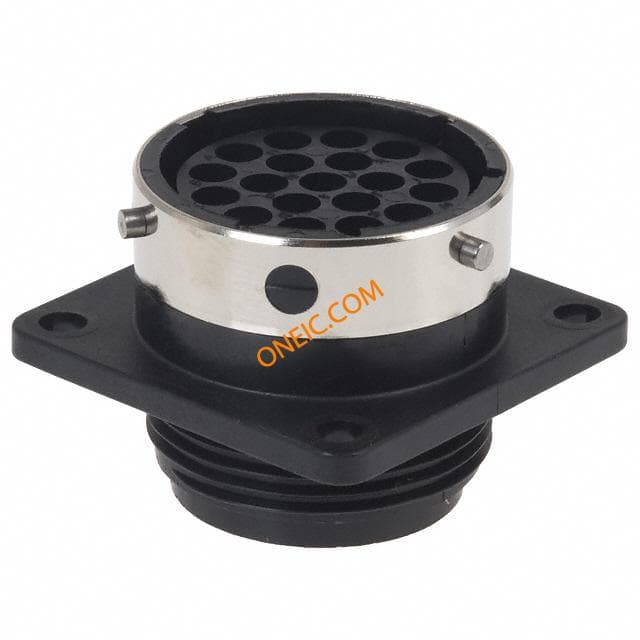

UTG01619S
SOURIAU
Conn CPC With Metal Coupling SKT 19 POS Crimp ST Wall Mount 19 Terminal 1 Port Bag CONN RCPT FEMALE 19POS WALL MT RECEPTACLE, SIZE16, 19WAY, SKT Conn;Circ;Socket;16ShellSz;FemaleInsert;19#16SocketCnts;PnlMnt;UTG CONN HSG RCPT 19POS WALL MNT SKT
SM14ML-1S6
Souriau Connection Technology
CONTACT PIN CRIMP 14AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;GoldFlashAll
SM16ML-1D70
Souriau Connection Technology
CONTACT PIN CRIMP 16-18AWG GOLD connector component;stamped and formed crimp pin cont;size 16;for 18-16awg wire connectorcomponent,stampedandformedcrimppincont,size16,for18-16awgwire Contact;Pin;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSMSer;GoldPlate

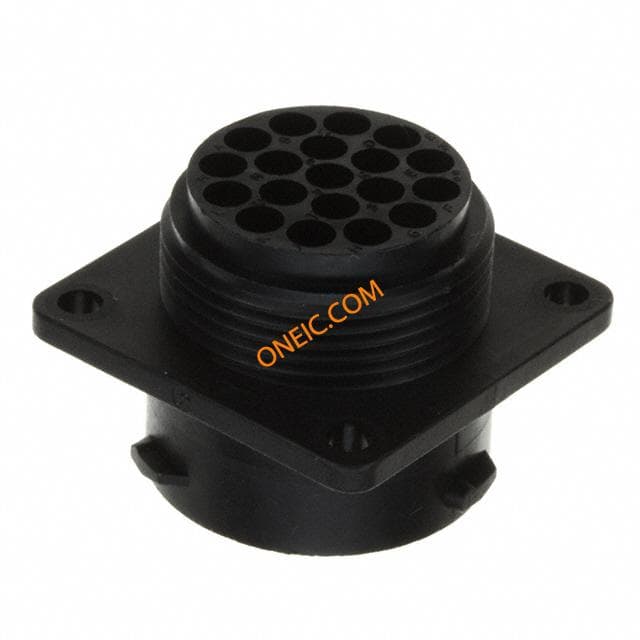

UTP01619S
