点击放大查看

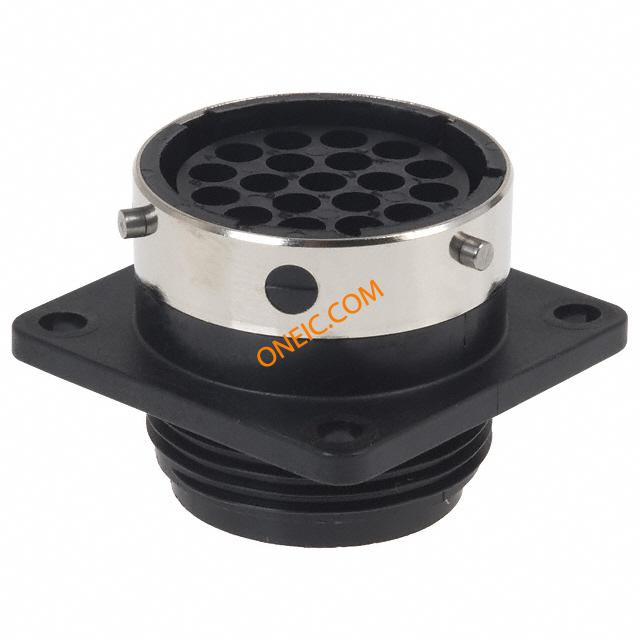

UTG01619S
| 制造商 | SOURIAU SAS |
| 描述 | Conn CPC With Metal Coupling SKT 19 POS Crimp ST Wall Mount 19 Terminal 1 Port Bag CONN RCPT FEMALE 19POS WALL MT RECEPTACLE, SIZE16, 19WAY, SKT Conn;Circ;Socket;16ShellSz;FemaleInsert;19#16SocketCnts;PnlMnt;UTG CONN HSG RCPT 19POS WALL MNT SKT |
| 分类 |
商业参数
| 其他名称 | SOU1110 | 标准包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | :750V | 工作电压 | :750V |
| 最大额定电流 | :13A | 绝缘电阻 | :5000Mohm |
机械参数
| 深度 | 31 mm | 高度 | 31 mm |
| 重量 | 0.01544 | 包装方式 | Bag |
| 出线方向 | No | 方向 | Keyed |
| 端接方式 | Crimp | 触点形式 | 19Signal |
| 触点尺寸 | 16 | 触头类型 | 19Signal |
| 安装类型 | Wall Mount | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Wall |
| 壳体镀层 | :Nickel | 插入角度 | :16-19 |
| 本体材料 | :Glass Reinforced Thermoplastic | 总长度 | 24.3 mm |
| 第一触头极性 | SKT | 触点数 | 19 |
| 面板开孔形状 | :28.1mm | 位数 | 19 |
| 外壳尺寸-插件 | 16-19 | 外壳材料及表面处理 | Thermoplastic, Glass Filled |
| 第一连接器安装类型 | :Panel | 外壳尺寸-插入件（转换至） | 16-19 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC With Metal Coupling |
| 连接器性别 | RCP | 系列 | :Metalok Bantam |
| 射频系列/标准 | UTG | ||
环境参数
| NEMA 机架尺寸 | :IP65 | 工作温度 | -55C to 125C |
