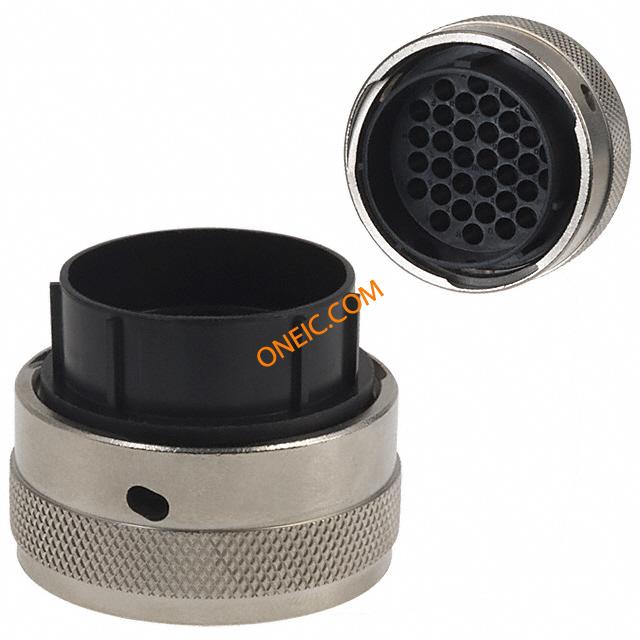

UTG61619PN
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 19P Strt Pin Plug Shell Size 16 Conn Metalok Bantam PIN 19 POS Crimp ST Cable Mount 19 Terminal 1 Port CONN PLUG CABLE MALE 19POS CIRCULAR CONNECTOR, PLUG, 16-19, CABLE Conn.;Circ.;Plug;16ShellSize;MaleInsert;19#16PinContacts;UTG |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1088 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | :750V | 工作电压 | :750V |
| 最大额定电流 | :13A | 绝缘电阻 | :5000Mohm |
机械参数
| 重量 | 0.03284 | 直径 | 31.2 mm |
| 包装方式 | Bulk | 外壳尺寸 | 16 |
| 方向 | Keyed | 端接方式 | Crimp |
| 触点形式 | 19Signal | 触点尺寸 | 16 |
| 触头类型 | 19Signal | 安装类型 | Cable Mount |
| 连接器类型 | Plug for Male Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Wire | 壳体镀层 | :Nickel |
| 外壳材料（壳体） | Thermoplastic | 插入角度 | 16-19 |
| 本体材料 | :Glass Reinforced Thermoplastic | 总长度 | 31.8 mm |
| 第一触头极性 | PIN | 触点数 | 19 |
| 位数 | 19 | 外壳尺寸-插件 | 16-19 |
| 外壳材料及表面处理 | Thermoplastic, Glass Filled | 第一连接器安装类型 | :Cable |
| 外壳尺寸-插入件（转换至） | 16-19 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Metalok Bantam |
| 连接器性别 | PL | 系列 | UTG |
| 产品子类型 | Cable Plugs | 射频系列/标准 | UTG |
环境参数
| 插拔次数 | :500 | NEMA 机架尺寸 | :IP65 |
| 工作温度 | -55C to 125C | ||
