UT001619SH
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 19P Sckt Receptacle Wall Mount Size 16 Conn Metal Circular SKT 19 POS Crimp ST Wall Mount 19 Terminal 1 Port Bag CONN RCPT FEMALE 19POS WALL MNT UTO01619SH female square flange receptacle, IP67 and 48h salt spray Souriau UT0 系列 19路 壁挂式 直向 圆形连接器 插座 , 母触点, 卡口式接合 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1006 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
电气参数
| 额定电压 | 250 V | ||
机械参数
| 深度 | 31 mm | 高度 | 31 mm |
| 重量 | 0.027 | 包装方式 | Bag |
| 出线方向 | No | 外壳尺寸 | 16 |
| 方向 | N (Normal) | 外壳样式 | Square Flange |
| 端接方式 | Crimp | 触点形式 | 19Signal |
| 触点尺寸 | 16 | 触头类型 | 19Signal |
| 安装类型 | Wall Mount | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Wall | 外壳材料（壳体） | Zinc Alloy |
| 插入角度 | 16-19 | 总长度 | 24.3 mm |
| 第一触头极性 | Without Socket Contacts | 触点数 | 19 |
| 位数 | 19 | 外壳尺寸-插件 | 16-19 |
| 外壳材料及表面处理 | Zinc, Nickel Plated | 外壳尺寸-插入件（转换至） | 16-19 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Circular |
| 连接器性别 | RCP | 系列 | UT0 |
| 产品特性 | Shielded | 产品子类型 | Receptacles |
| 射频系列/标准 | UT0 | ||
环境参数
| 防护等级 | IP 67 | 工作温度 | -40C to 105C |
文档与媒体
相关型号
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau
UT061619PH
Souriau
Standard Circular Connector 19P Strt Pin Plug Size 16 Conn Metal Circular PIN 19 POS Crimp ST Cable Mount 19 Terminal 1 Port CONN PLUG CABLE 19POS MALE PIN HOUSING, FREE, 19WAY Cable plug UT0 19-pin Trim Trio UT0 19P Male 16, UT061619PH, Souriau
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate
SC16ML-1D70
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD connector component;stamped and formed crimp socket cont;size 16;18-16awg wire connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;GoldPlate

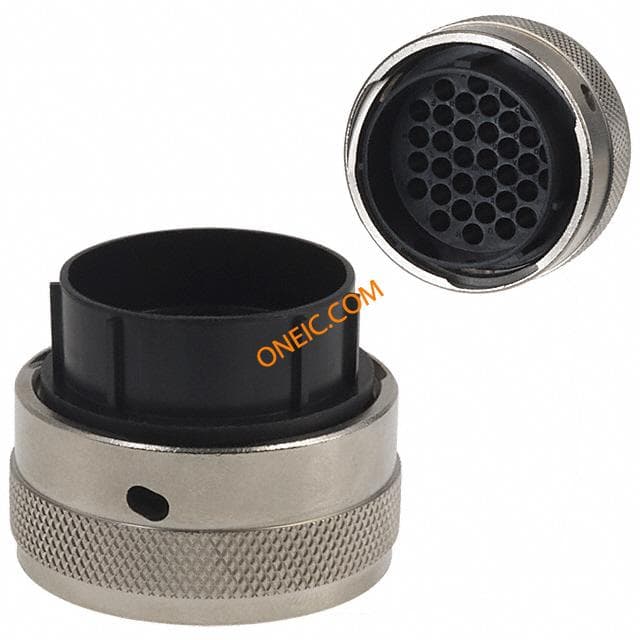

UTG61619PN
