点击放大查看

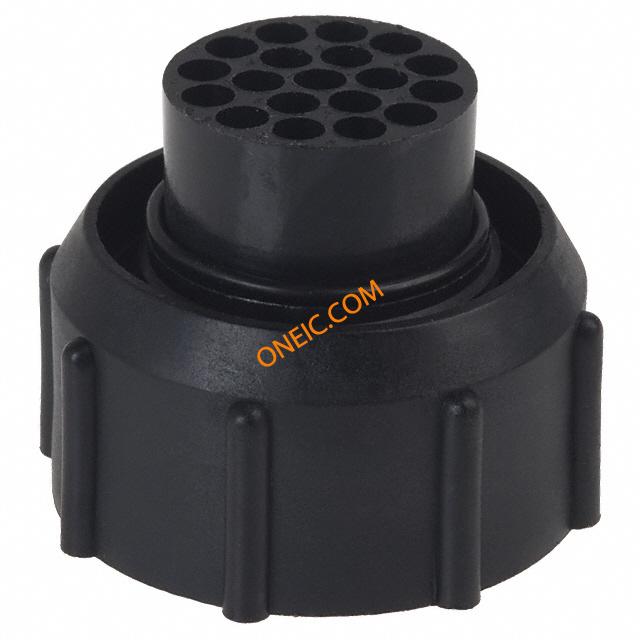

UTP61619P
| 制造商 | SOURIAU SAS |
| 描述 | Conn CPC PIN 19 POS ST Cable Mount 19 Terminal 1 Port CONN PLUG CABLE MALE 19POS 19 Way Male Cable Mount Connector,Male Contacts,Shell Size 16 PLUG, FREE, 19WAY connector,circularplastic,strcableplug,size16,for19size16pincontact Souriau 19路 电缆安装 连接器 卡口耦合 插头 , 公触点, 外壳尺寸16 |
| 分类 |
商业参数
| 其他名称 | SOU1162 | 标准包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | :750V | 工作电压 | :750V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 深度 | 1.6 mm | 高度 | 1.6 mm |
| 重量 | 0.02184 | 直径 | Not Required mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 16 | 方向 | Keyed |
| 触点形式 | 19Signal | 触点尺寸 | 16 |
| 触头类型 | 19Signal | 安装类型 | Cable Mount |
| 连接器类型 | Plug for Male Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Cable | 插入角度 | :16-19 |
| 本体材料 | :Glass Filled Thermoplastic | 总长度 | 31.8 mm |
| 第一触头极性 | PIN | 连接器颜色 | :Black |
| 触点数 | 19 | 位数 | 19 |
| 外壳尺寸-插件 | 16-19 | 外壳材料及表面处理 | Thermoplastic, Glass Filled |
| 第一连接器安装类型 | :Cable | 外壳尺寸-插入件（转换至） | 16-19 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | :UTP |
| 射频系列/标准 | UTP | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | +125°C |
