点击放大查看

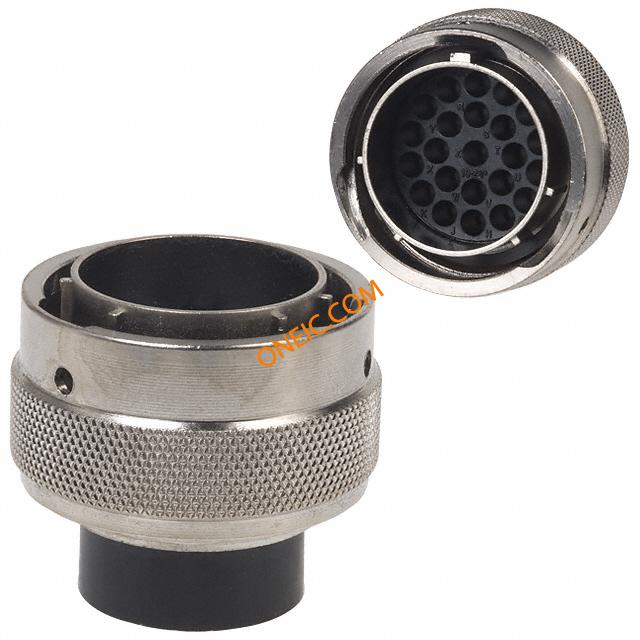

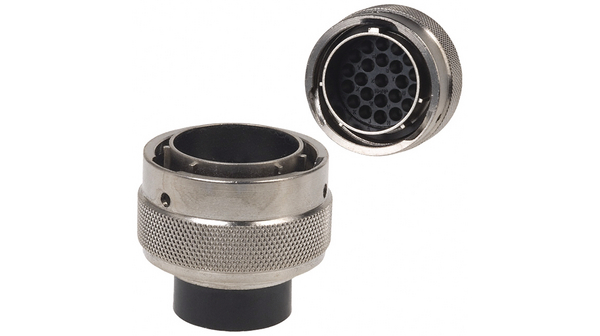

UT061823PH
| 制造商 | SOURIAU SAS |
| 描述 | Conn Metal Circular PIN 23 POS Crimp ST Cable Mount 23 Terminal 1 Port CONN PLUG CABLE 23POS MALE Standard Circular Connector 23P Strt Pin Plug Size 18 PIN HOUSING, FREE, 23WAY CONN HSG PLUG 23POS INLINE PIN Cable plug UT0 23-pin Trim Trio UT0 23P Male 18, UT061823PH, Souriau |
| 分类 |
商业参数
| 商标名 | Trim Trio | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 测试电压 | :2000V | 额定电压 | 250 V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.03093 | 直径 | 35.25 |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 18 | 方向 | N (Normal) |
| 端接方式 | Crimp | 触点形式 | 23Signal |
| 触点尺寸 | 16 | 触头类型 | 23Signal |
| 安装类型 | Cable Mount | 外壳镀层 | Nickel |
| 连接器类型 | Plug for Male Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Cable | 外壳材料（壳体） | Zinc Alloy |
| 插入角度 | 18-23 | 本体材料 | :Zinc Alloy |
| 总长度 | 33 mm | 第一触头极性 | PIN |
| 触点数 | 23 | 位数 | 23 |
| 外壳尺寸-插件 | 18-23 | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 第一连接器安装类型 | :Cable | 外壳尺寸-插入件（转换至） | 18-23 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Circular |
| 连接器性别 | PL | 系列 | UT0 |
| 产品特性 | Shielded | 产品子类型 | Cable Plugs |
| 射频系列/标准 | UT0 | ||
环境参数
| 插拔次数 | :500 | NEMA 机架尺寸 | :IP67, IP68, IP69K |
| 防护等级 | IP67/69K - Dust Tight, Waterproof | 工作温度 | -40C to 105C |
文档与媒体
相关型号
UT018AC
Souriau
Standard Circular Connector Cable Clamp Size 18 With Strain Relief CONN CABLE CLAMP METAL #18 HOOD, METAL, STRAIN RELIEF, SIZE 18 UTO-UTOW cable clamp,strain relief,
UT071823SH
Souriau
Standard Circular Connector 23P Sckt Receptacle Jam Nut Size 18 CONN RCPT FEMALE 23POS JAM NUT
UT001823SH
Souriau
Standard Circular Connector 23P Sckt Receptacle Wall Mount Size 18 CONN RCPT FEMALE 23POS WALL MNT UTO01823SH female square flange receptacle, IP67 and 48h salt spray Souriau UT0 系列 23路 壁挂式 直向 圆形连接器 插座 , 母触点, 卡口式接合
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts
SM16M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 16 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 16-18AWG TIN CIRCULAR CONTACT, PIN, 16AWG, CRIMP Male #16 Stamped and formed crimp contact 2PCSTRIPHYFPIN#18-16
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate

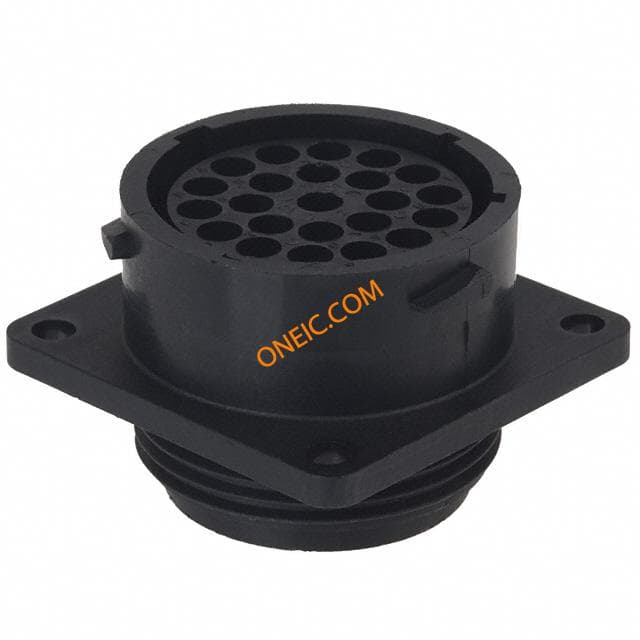

UTP01823S
Souriau
Standard Circular Connector 23P Sckt Receptacle Wall Mount Size 18 CONN RCPT FEMALE 23POS WALL MNT SOCKET, PANEL MOUNT, 23WAY connector,plasticcircular,wallreceptaclesize18,for23size16socketcontact

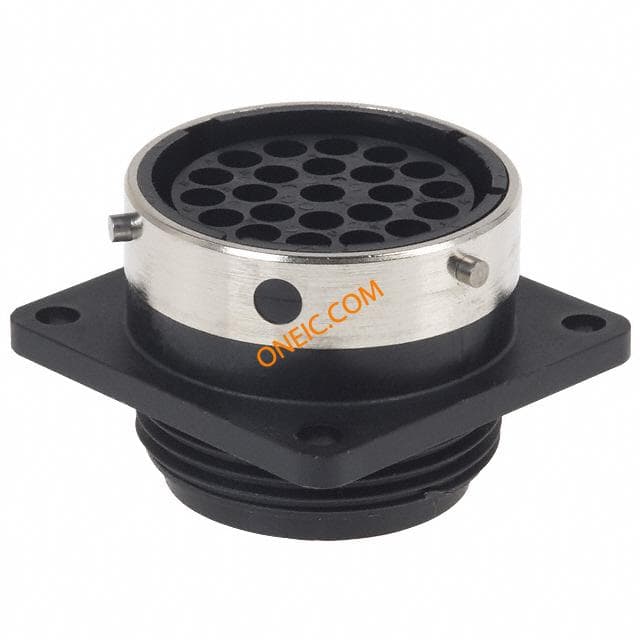

UTG018-23S
