点击放大查看

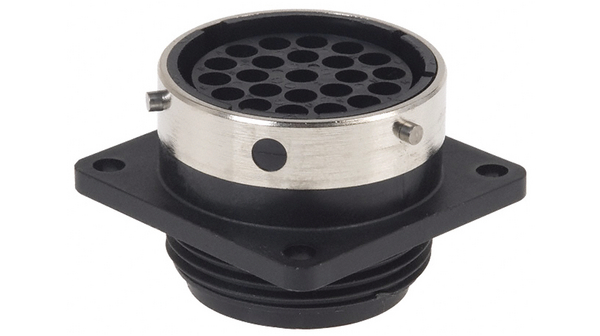

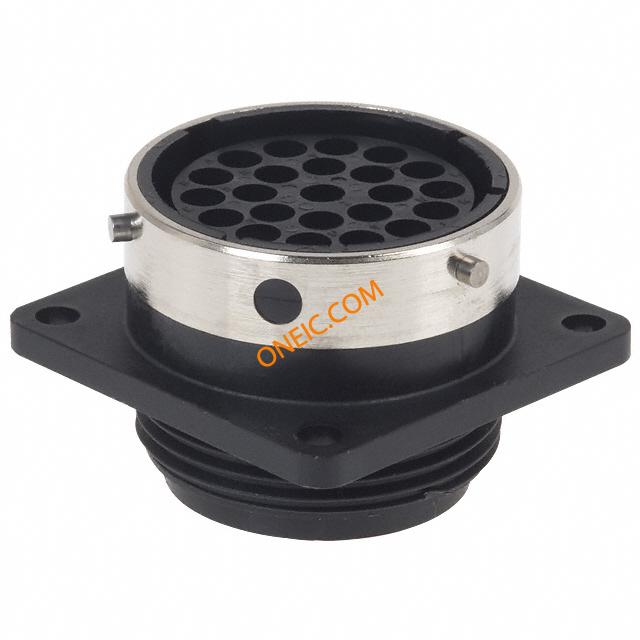

UTG018-23S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 23P Sckt Receptacle Wall Mount Size 18 Conn CPC With Metal Coupling SKT 23 POS Crimp ST Wall Mount 23 Terminal 1 Port Bag CONN RCPT FEMALE 23POS WALL MT connector,plasticcircular,metalcouplingring,wallrecept,size18,for23socket Female receptacle Trim Trio 23-pin Trim Trio UTG 23P Female 18, UTG018-23S, Souriau |
| 分类 |
商业参数
| 商标名 | Trim Trio | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 33.1 | 额定电压 | 500 |
| 极数 | 23 | 最大额定电流 | 13 A |
机械参数
| 深度 | 33.3 | 高度 | 33.3 |
| 包装方式 | Bag | 出线方向 | No |
| 外壳尺寸 | 18 | 方向 | Keyed |
| 外壳样式 | Square Flange | 端接方式 | Crimp |
| 触点尺寸 | 16 | 触头类型 | 23Signal |
| 安装类型 | Wall Mount | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Wall |
| 外壳材料（壳体） | Thermoplastic | 连接器样式 | with flange |
| 插入角度 | 18-23 | 锁定特性 | Bayonet locking |
| 触头材料 | CuNi+Au | 壳体材料 | Metal |
| 总长度 | 24.3 | 端接样式 | Crimp Connection |
| 第一触头极性 | SKT | 外径 | 28.5 |
| 触点数 | 23 | 位数 | 23 |
| 外壳尺寸-插件 | 18-23 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Thermoplastic, Glass Filled | 外壳尺寸-插入件（转换至） | 18-23 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC With Metal Coupling |
| 连接器性别 | RCP | 系列 | UTG |
| 产品子类型 | Receptacles | 放大器类型 | 24.3 |
环境参数
| 工作温度 | -55...+125 °C | ||
