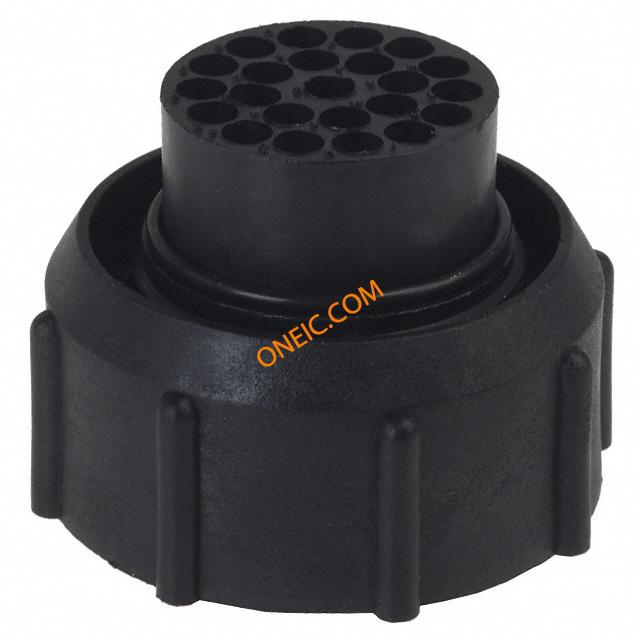

点击放大查看
UTP61823P
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 23P Strt Pin Plug Shell Size 18 CONN PLUG CABLE MALE 23POS 23 Way Male Cable Mount Connector,Male Contacts,Shell Size 18 PLUG, FREE, 23WAY connector,circularplastic,strcableplug,size18,for23size16pincontact Souriau 23路 电缆安装 连接器 卡口耦合 插头 , 公触点, 外壳尺寸18 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1164 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | No | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | :750V | 工作电压 | :750V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.026 | 包装方式 | Bulk |
| 外壳尺寸 | 18 | 方向 | Keyed |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug for Male Contacts |
| 紧固类型 | Bayonet Lock | 外壳材料（壳体） | Thermoplastic |
| 插入角度 | :18-23 | 本体材料 | :Glass Filled Thermoplastic |
| 第一触头极性 | Without Pin Contacts | 连接器颜色 | :Black |
| 触点数 | 23 | 位数 | 23 |
| 外壳尺寸-插件 | 18-23 | 外壳材料及表面处理 | Thermoplastic, Glass Filled |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Male |
| 系列 | UTP | 产品子类型 | Cable Plugs |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | +125°C |
