点击放大查看

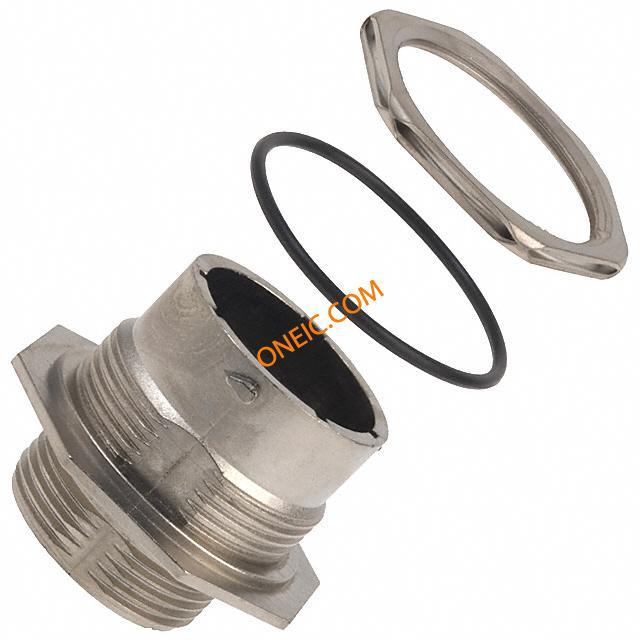

UT071823PH
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 23P Pin Receptacle Jam Nut Size 18 CONN RCPT MALE 23POS JAM NUT |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1025 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 额定电压 | 250 V | ||
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 18 |
| 方向 | N (Normal) | 外壳样式 | Jam Nut |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Bulkhead - Front Side Nut | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 外壳材料（壳体） | Zinc Alloy |
| 插入角度 | 18-23 | 第一触头极性 | Without Pin Contacts |
| 触点数 | 23 | 位数 | 23 |
| 外壳尺寸-插件 | 18-23 | 外壳材料及表面处理 | Zinc, Nickel Plated |
产品信息
| 备注 | Contacts Not Provided | 系列 | UT0 |
| 产品特性 | Shielded | 产品子类型 | Receptacles |
环境参数
| 防护等级 | IP 67 | ||
文档与媒体
相关型号
UT061823SH
Souriau
Standard Circular Connector 23P Strt Socket Plug Size 18 CONN PLUG CABLE 23POS FEMALE Conn Metal Circular SKT 23 POS Crimp ST Cable Mount 23 Terminal 1 Port SOCKET HOUSING, FREE, 23WAY Cable socket UT0 23-pin Trim Trio UT0 23P Female 18, UT061823SH, Souriau Souriau UT0 系列 23路 电缆安装 直向 圆形连接器 插头 , 母触点, 卡口式接合
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD

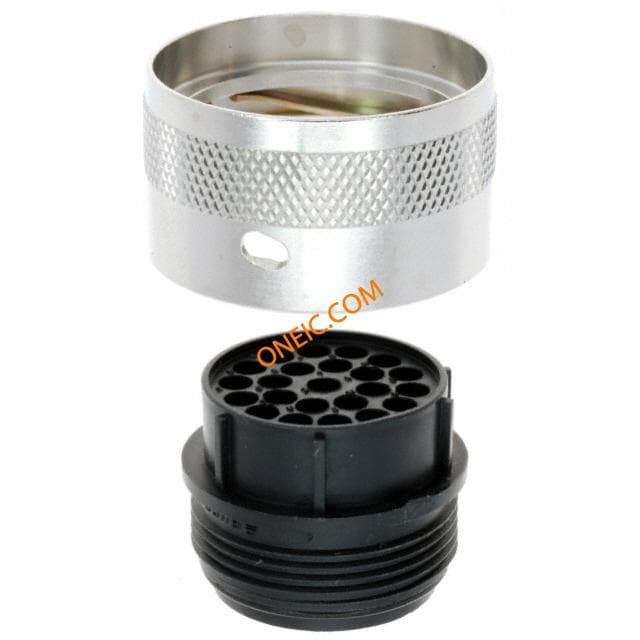

UTG618-23SN
