点击放大查看

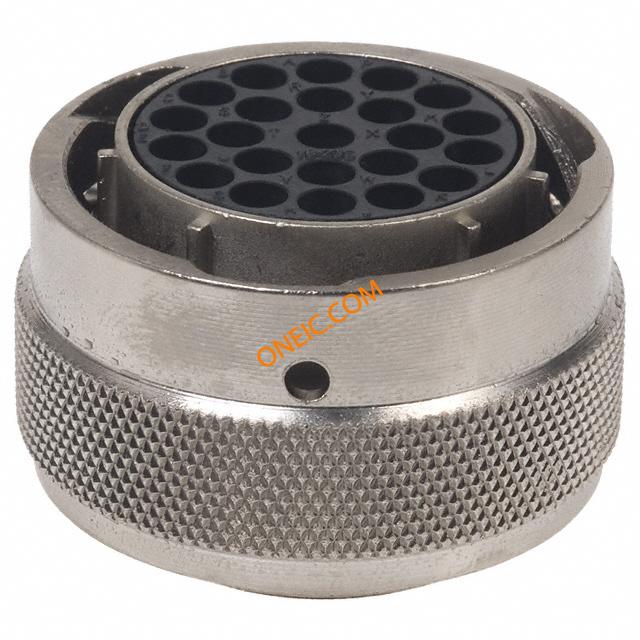

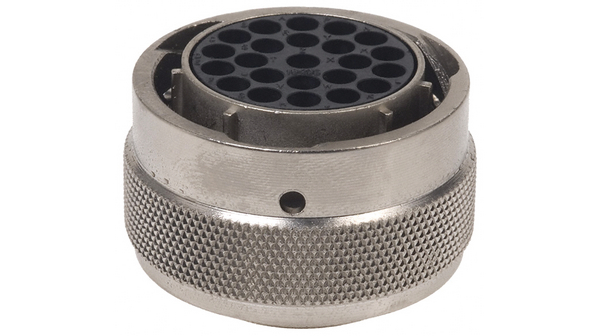

UT061823SH
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 23P Strt Socket Plug Size 18 CONN PLUG CABLE 23POS FEMALE Conn Metal Circular SKT 23 POS Crimp ST Cable Mount 23 Terminal 1 Port SOCKET HOUSING, FREE, 23WAY Cable socket UT0 23-pin Trim Trio UT0 23P Female 18, UT061823SH, Souriau Souriau UT0 系列 23路 电缆安装 直向 圆形连接器 插头 , 母触点, 卡口式接合 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1040 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 材料阻燃等级 | :UL94V-0 |
电气参数
| 测试电压 | :2000V | 额定电压 | 250 V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.03089 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 18 |
| 方向 | N (Normal) | 端接方式 | Crimp |
| 触点形式 | 23Signal | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Nickel | 连接器类型 | Plug for Female Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Cable |
| 外壳材料（壳体） | Zinc Alloy | 插入角度 | 18-23 |
| 本体材料 | :Zinc Alloy | 总长度 | 27.3 mm |
| 第一触头极性 | Without Socket Contacts | 触点数 | 23 |
| 位数 | 23 | 外壳尺寸-插件 | 18-23 |
| 外壳材料及表面处理 | Zinc, Nickel Plated | 第一连接器安装类型 | :Cable |
| 外壳尺寸-插入件（转换至） | 18-23 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Circular |
| 连接器性别 | PL | 系列 | UT0 |
| 产品特性 | Shielded | 产品子类型 | Cable Plugs |
| 射频系列/标准 | UT0 | ||
环境参数
| 插拔次数 | :500 | NEMA 机架尺寸 | :IP67, IP68, IP69K |
| 防护等级 | IP 67 | 工作温度 | -40C to 105C |
