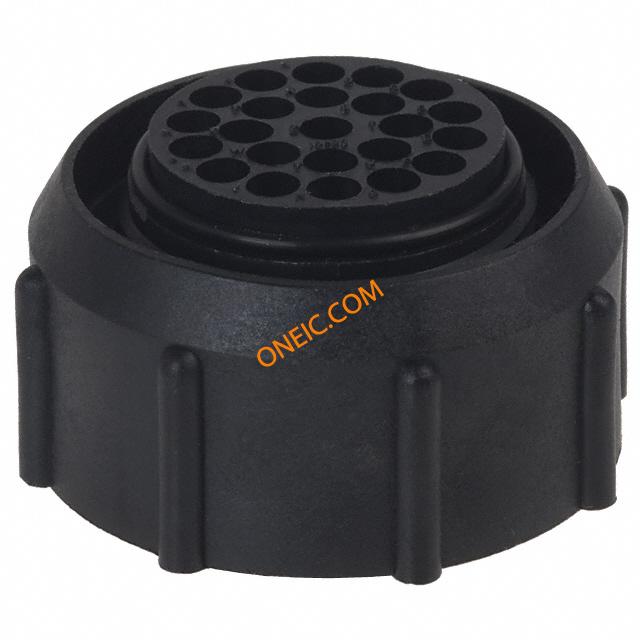

UTP61823S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 23P Strt Socket Plug Shell Size 18 CONN PLUG CABLE FEMALE 23POS connector,circularplastic,strcableplug,size18,for23size16socketcontact |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1163 |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 18 |
| 方向 | Keyed | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Bayonet Lock |
| 外壳材料（壳体） | Thermoplastic | 第一触头极性 | Without Socket Contacts |
| 配接方向 | Bayonet | 触点数 | 23 |
| 位数 | 23 | 外壳尺寸-插件 | 18-23 |
| 外壳材料及表面处理 | Thermoplastic, Glass Filled | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | UTP |
| 产品子类型 | Cable Plugs | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | ||
