点击放大查看

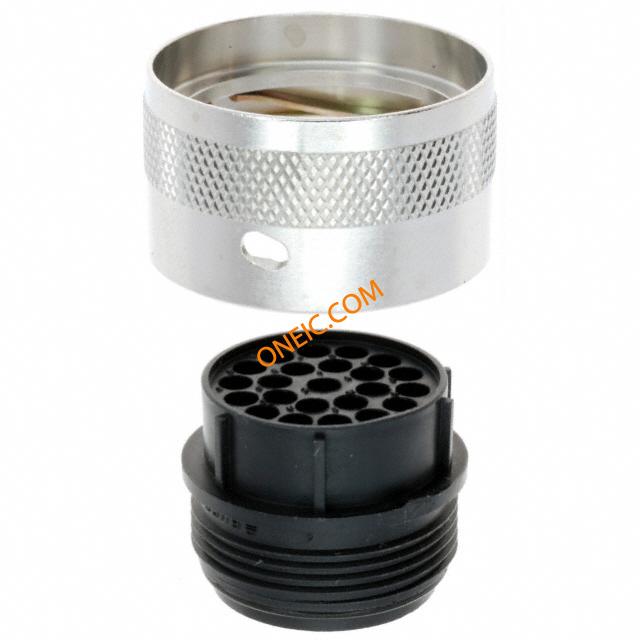

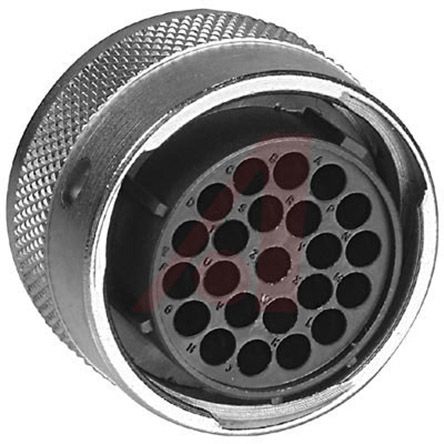

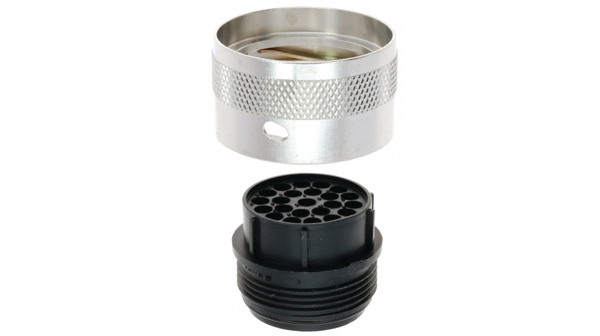

UTG618-23SN
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 23P Strt Socket Plug Shell Size 18 Conn Metalok Bantam SKT 23 POS Crimp ST Cable Mount 23 Terminal 1 Port CONN PLUG CABLE FEMALE 23POS connector;plastic circular;metal coupling ring;str plug;size 18;for 23 socket co connector,plasticcircular,metalcouplingring,strplug,size18,for23socketco Cable socket, Trim Trio 23-pin Trim Trio UTG 23P Female 18, UTG618-23SN, Souriau Souriau UTG 系列 23路 电缆安装 直向 连接器 插头 , 母触点, 插入式接合 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 2 kV | 极数 | 23 |
| 最大额定电流 | 13 A | ||
机械参数
| 外形尺寸(长x宽) | 18 | 直径 | 34.3 |
| 包装方式 | Bulk | 壳体颜色 | 23.7 |
| 外壳尺寸 | 18 | 方向 | Keyed |
| 端接方式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | 23Signal | 安装类型 | Cable Mount |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Wire | 外壳材料（壳体） | Thermoplastic |
| 连接器样式 | straight | 插入角度 | 18-23 |
| 锁定特性 | Bayonet locking | 触头材料 | CuNi+Au |
| 壳体材料 | Metal | 总长度 | 23.9 |
| 端接排数 | 焊接 | 端接样式 | Crimp Connection |
| 第一触头极性 | SKT | 外径 | 24 |
| 触点数 | 23 | 位数 | 23 |
| 外壳尺寸-插件 | 18-23 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Thermoplastic, Glass Filled | 外壳尺寸-插入件（转换至） | 18-23 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Metalok Bantam |
| 连接器性别 | PL | 系列 | UTG |
| 产品子类型 | Cable Plugs | 放大器类型 | 34.3 |
环境参数
| 防护等级 | IP65 | 工作温度 | -55...+125 °C |
