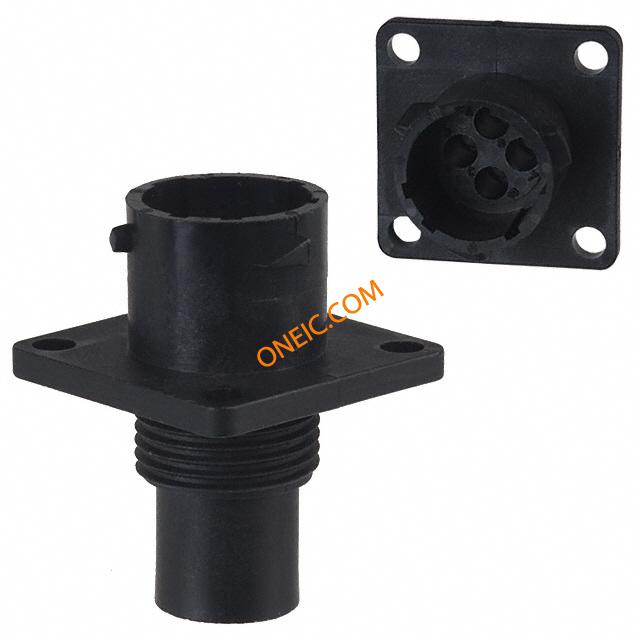

点击放大查看
UTP0104P
| 制造商 | SOURIAU SAS |
| 描述 | CONN RCPT MALE 4POS WALL MNT PLUG, PANEL, 4WAY connector,plasticcircular,wallreceptacle,size10,for4size16pincontact |
| 分类 |
商业参数
| 其他名称 | SOU1140 | 标准包装数量 | 50 |
合规参数
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | :750V | 工作电压 | :750V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.016 | 包装方式 | Bulk |
| 方向 | Keyed | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Panel Mount, Flange |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Bayonet Lock |
| 插入角度 | :10-4 | 本体材料 | :Glass Filled Thermoplastic |
| 第一触头极性 | :Pin | 连接器颜色 | :Black |
| 面板开孔形状 | :17.3mm | 位数 | 4 |
| 外壳尺寸-插件 | 10-4 | 外壳材料及表面处理 | Thermoplastic, Glass Filled |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Receptacle |
| 系列 | :UTP | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | :125°C |
