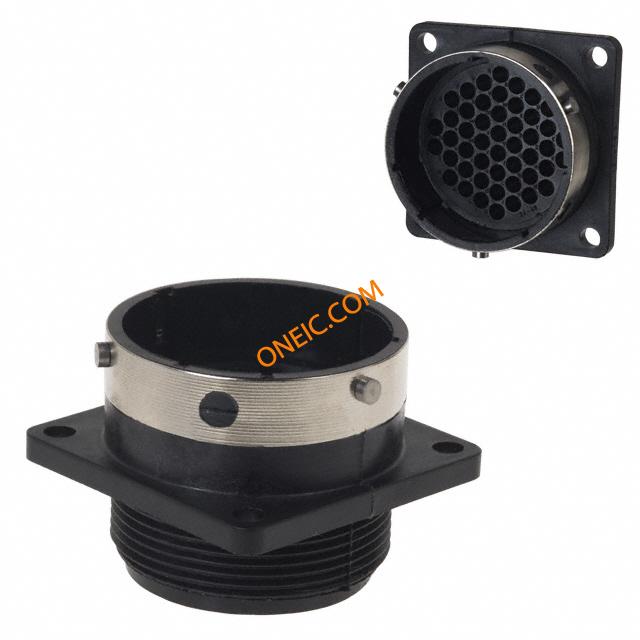

UTG02448P

制造商	SOURIAU SAS
描述	Conn CPC With Metal Coupling PIN 48 POS Crimp ST Wall Mount 48 Terminal 1 Port Bag CONN RCPT MALE 48POS WALL MT RECEPTACLE, SIZE24, 48WAY, PIN Conn.;Circ.;Socket;24ShellSize;MaleInsert;48#16PinCnts;PnlMnt;UTG
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

SOU1119

标准包装数量

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
海关税号	85369010	材料阻燃等级	:UL94V-0

电气参数

额定电压	:750V	工作电压	:750V
最大额定电流	:13A	绝缘电阻	:5000Mohm

机械参数

深度	42.9	高度	42.9
重量	0.036	包装方式	Bag
出线方向	No	方向	Keyed
端接方式	Crimp	触点尺寸	16
触头类型	48Signal	安装类型	Wall Mount
连接器类型	Receptacle for Male Contacts	紧固类型	Bayonet Lock
壳体镀层	:Nickel	插入角度	:24-48
本体材料	:Glass Reinforced Thermoplastic	总长度	33.3
第一触头极性	PIN	触点数	48
面板开孔形状	:40.9mm	位数	48
外壳尺寸-插件	24-48	外壳材料及表面处理	Thermoplastic, Glass Filled
第一连接器安装类型	:Panel	外壳尺寸-插入件（转换至）	24-48

产品信息

备注	Contacts Not Provided	类型	CPC With Metal Coupling
连接器性别	RCP	系列	:Metalok Bantam

环境参数

NEMA 机架尺寸

:IP65

工作温度

:125°C

文档与媒体

PDF 文档

16, 20 Size Series Overview

PDF 文档

UTG Series

PDF 文档

1675691.pdf
