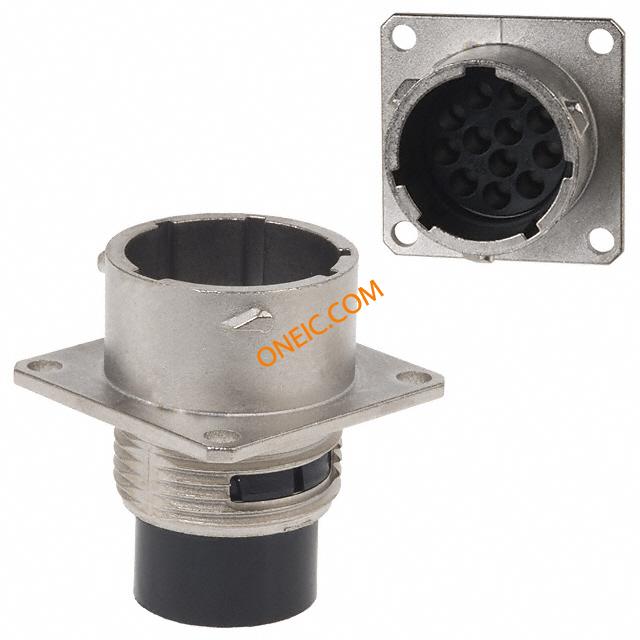

UT001412PH
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 12P Pin Receptacle Wall Mount Size 14 CONN RCPT MALE 12POS WALL MNT connector;metal circular;wall recept;for 12 size 16 pin cont;ip68/ip69k sealing UTO01412PH male square flange receptacle, IP67 and 48h salt spray connector,metalcircular,wallrecept,for12size16pincont,ip68/ip69ksealing |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1005 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 250 V | ||
机械参数
| 重量 | 0.023 | 包装方式 | Bulk |
| 外壳尺寸 | 14 | 方向 | N (Normal) |
| 外壳样式 | Square Flange | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Panel Mount, Flange |
| 外壳镀层 | Nickel | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Wall |
| 外壳材料（壳体） | Zinc Alloy | 插入角度 | 14-12 |
| 第一触头极性 | Without Pin Contacts | 触点数 | 12 |
| 位数 | 12 | 外壳尺寸-插件 | 14-12 |
| 外壳材料及表面处理 | Zinc, Nickel Plated | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | UT0 |
| 产品特性 | Shielded | 产品子类型 | Receptacles |
环境参数
| 防护等级 | IP 67 | ||
文档与媒体
相关型号
UT061412SH
Souriau
Standard Circular Connector 12P Strt Socket Plug Size 14 CONN PLUG CABLE 12POS FEMALE Conn Metal Circular SKT 12 POS Crimp ST Cable Mount 12 Terminal 1 Port SOCKET HOUSING, FREE, 12WAY connector,metalcircular,strplug,for12size16socketcont,ip68/ip69ksealing Cable socket UT0 12-pin Trim Trio UT0 12P Female 14, UT061412SH, Souriau Souriau 12路 电缆安装 连接器 插头 ,母触芯, 外壳尺寸14
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP
SM16ML1S31
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 16 AWG Contact Sz 16 CONTACT PIN CRIMP 16-18AWG GOLD CONTACT, PIN, S&F, 16-18 AWG, PK 25 Contact;Pin;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp pin Male 18...16 AWG, SM16ML1S31, Souriau
SM24M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG GOLD
SM20M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG GOLD 2PCSTRIPHYFPIN#22-20
SM20ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 20-22AWG TIN Tin plate crimp pin contact,22-20awg connectorcomponent,stampedandformedcrimpcontact,size16,for22-20awgwire Contact;Pin;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格

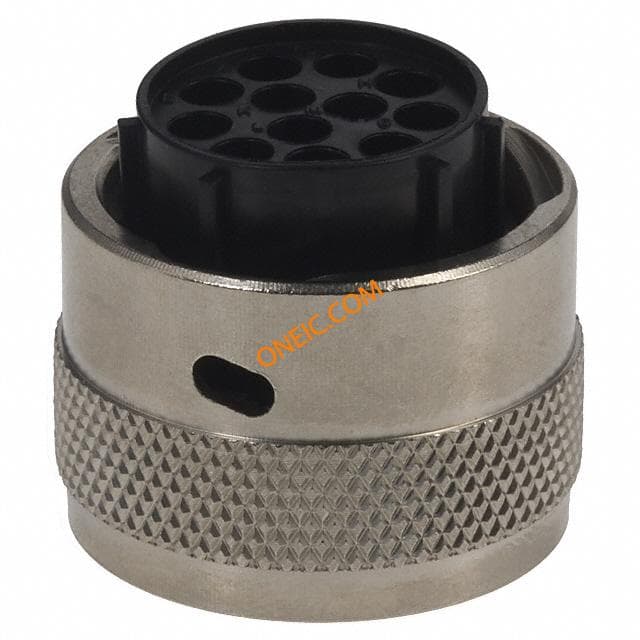

UTG614-12SN
SOURIAU
Conn Metalok Bantam SKT 12 POS Crimp ST Cable Mount 12 Terminal 1 Port CONN PLUG CABLE FEMALE 12POS connector;plastic circular;metal coupling ring;str plug;size 14;for 12 socket co connector,plasticcircular,metalcouplingring,strplug,size14,for12socketco CONN HSG PLUG 12POS CABLE SKT Cable socket, Trim Trio 12-pin Trim Trio UTG 12P Female 14, UTG614-12SN, Souriau Souriau UTG 系列 12路 电缆安装 直向 连接器 插头 , 母触点, 插入式接合
SM24ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimppincontact,size16,26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldFlashAll
SM14ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 14AWG TIN Souriau G-Bantamate, MBG, SMS Qikmate, UT-Bantam, UTG, UTGS, UTP SeriesSize 16 Tin Plated Crimp Pin Connector, 14AWG connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 14 AWG 线规格
SM20M-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG TIN tapeandreelcontacts
SM20ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for22-20awgwire Contact;Pin;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSMSer;GoldFlashAll
SM16ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 16-18AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for18-16awgwire connectorcomp,size16stamped&formedcrimppincont,for18-16awgwire,gold
SM14ML-1S6
Souriau Connection Technology
CONTACT PIN CRIMP 14AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;GoldFlashAll
SM16ML-1D70
Souriau Connection Technology
CONTACT PIN CRIMP 16-18AWG GOLD connector component;stamped and formed crimp pin cont;size 16;for 18-16awg wire connectorcomponent,stampedandformedcrimppincont,size16,for18-16awgwire Contact;Pin;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSMSer;GoldPlate

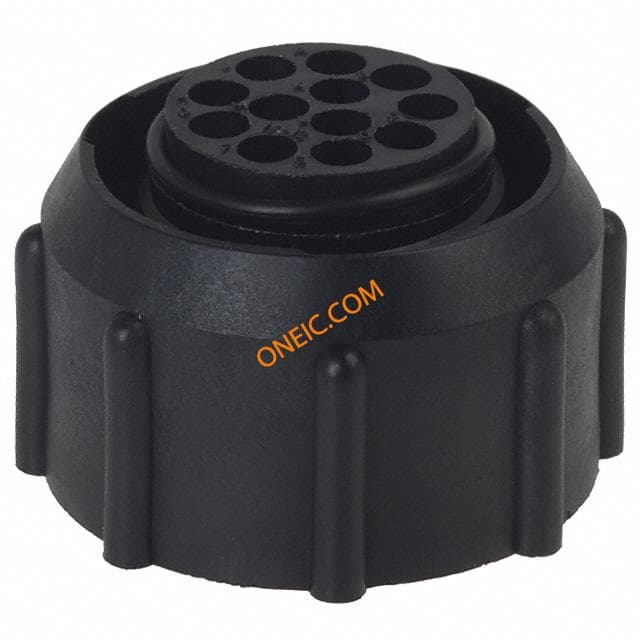

UTP61412S
