点击放大查看

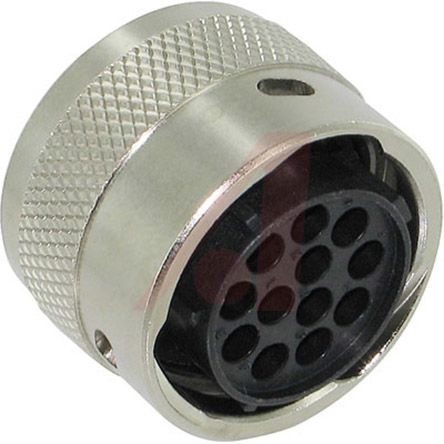

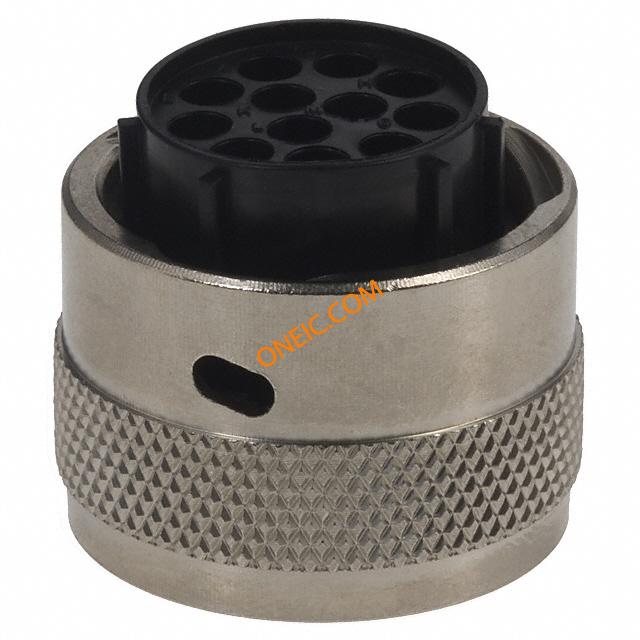

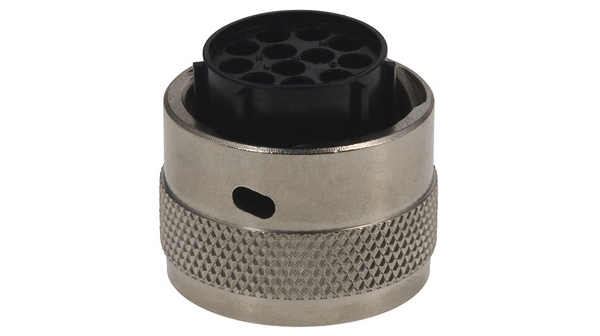

UTG614-12SN
| 制造商 | SOURIAU SAS |
| 描述 | Conn Metalok Bantam SKT 12 POS Crimp ST Cable Mount 12 Terminal 1 Port CONN PLUG CABLE FEMALE 12POS connector;plastic circular;metal coupling ring;str plug;size 14;for 12 socket co connector,plasticcircular,metalcouplingring,strplug,size14,for12socketco CONN HSG PLUG 12POS CABLE SKT Cable socket, Trim Trio 12-pin Trim Trio UTG 12P Female 14, UTG614-12SN, Souriau Souriau UTG 系列 12路 电缆安装 直向 连接器 插头 , 母触点, 插入式接合 |
| 分类 |
商业参数
| 标准包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 500 | 极数 | 12 |
| 最大额定电流 | 13 A | ||
机械参数
| 外形尺寸(长x宽) | 14 | 直径 | 28 |
| 包装方式 | Bulk | 壳体颜色 | 23.7 |
| 外壳尺寸 | 14 | 方向 | Keyed |
| 端接方式 | Crimp | 触点形式 | Crimp |
| 触点尺寸 | 16 | 触头类型 | 12Signal |
| 安装类型 | Cable Mount | 连接器类型 | Plug for Female Contacts |
| 紧固类型 | Bayonet Lock | 连接器样式 | straight |
| 锁定特性 | Bayonet locking | 触头材料 | CuNi+Au |
| 壳体材料 | Metal | 总长度 | 23.9 |
| 端接排数 | 焊接 | 端接样式 | Crimp Connection |
| 第一触头极性 | SKT | 外径 | 18.3 |
| 触点数 | 12 | 位数 | 12 |
| 外壳尺寸-插件 | 14-12 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Thermoplastic, Glass Filled | 外壳尺寸-插入件（转换至） | 14-12 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Metalok Bantam |
| 连接器性别 | PL | 系列 | Trim Trio® UTG |
| 放大器类型 | 28 | 输出配置 | Free Hanging (In-Line) |
环境参数
| 防护等级 | IP65 | 工作温度 | -55...+125 °C |
文档与媒体
相关型号
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau
UT001412PH
Souriau
Standard Circular Connector 12P Pin Receptacle Wall Mount Size 14 CONN RCPT MALE 12POS WALL MNT connector;metal circular;wall recept;for 12 size 16 pin cont;ip68/ip69k sealing UTO01412PH male square flange receptacle, IP67 and 48h salt spray connector,metalcircular,wallrecept,for12size16pincont,ip68/ip69ksealing
UT071412PH
Souriau
Standard Circular Connector 12P Pin Receptacle Jam Nut Size 14 CONN RCPT MALE 12POS JAM NUT RECEPTACLE, MALE, SIZE14, 12WAY connector,metalcirc,jamnutrecept,for12size16pincont,ip68/ip69ksealing Souriau 12路 面板安装 连接器 插座 , 公触点, 外壳尺寸14

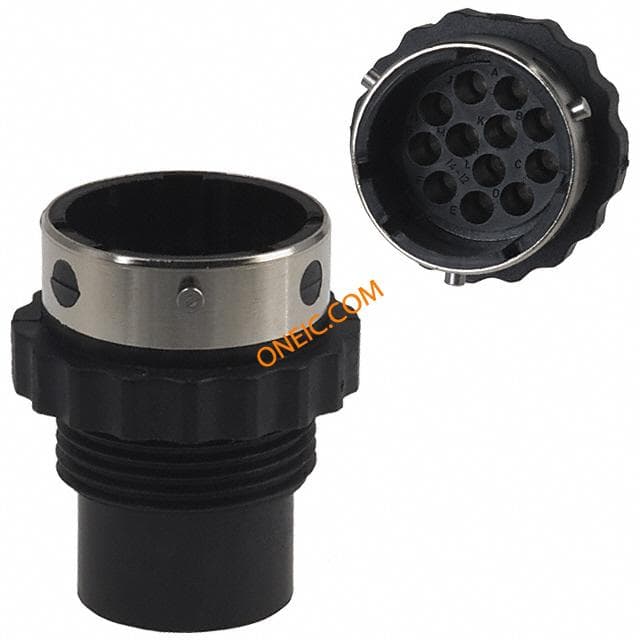

UTG114-12P
Souriau
Standard Circular Connector 12P Pin Receptacle Cable Mount Size 14 CONN RCPT CABLE MALES 12POS
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate
SC16ML-1D70
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD connector component;stamped and formed crimp socket cont;size 16;18-16awg wire connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;GoldPlate
SC16M11S6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG GOLD CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP
SC20ML-1S6
Souriau
Standard Circular Contacts Trim Trio Socket 20 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size16,22-20awgwire Contact;Socket;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSCSer;GoldFlashAll
SC16M1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG TIN CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP Female #16 Stamped and formed crimp contact tapeandreelcontacts
SC16ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 16-18AWG TIN G-Bantamate, MBG, SMS Qikmate, Series Size 16 13A Female Circular Connector Contact, Crimp,Wire size 18 to 16AWG connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;TinPlate Souriau 13A 母 压接端接 圆形 连接器 触芯, 18 → 16 AWG 线规格
SC24M1TK6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 24-26AWG TIN Pin & Socket Connectors Trim Trio Socket 24 AWG Contact Sz 16 CIRCULAR CONTACT, SKT, 26-24AWG, CRIMP tapeandreelcontacts
SC14M-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 14AWG GOLD
RC16M23K
SOURIAU
Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD VGE1 Series Size 16 13A Female Circular Connector Contact, Crimp,Wire size 20 to 16AWG Headers & Wire Housings Crimp Socket Contact 16-20 AWG RC16M23K CRIMP SOCKET, 20-16AWG connectorcomp,size16machinedcrimpsocketcont,for20-16awgwire,gold/nickel Crimp socket green 13 A Female, RC16M23K, Souriau Souriau VGE1 系列 13A 母 压接端接 圆形 连接器 触芯, 20 → 16 AWG 线规格
SC20M-1TK6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 20-22AWG TIN tapeandreelcontacts
SC14ML-1TK6
SOURIAU
Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 14AWG TIN G-Bantamate, MBG, SMS Qikmate, Series Size 16 13A Female Circular Connector Contact, Crimp,Wire size 14AWG connectorcomponent,stampedandformedcrimpsocketcont,size16,for14awgwire Contact;Socket;Stamped;Sz16;Crimp;14AWG;TrimTrioSCSer;TinPlate Souriau 13A 母 压接端接 圆形 连接器 触芯, 14 AWG 线规格
SC24M-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 24-26AWG GOLD
SC14ML-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 14AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size16,for14awgwire Contact;Socket;Stamped;Sz16;Crimp;14AWG;TrimTrioSCSer;GoldFlashAll
SC16M-1S6
Souriau Connection Technology
CONTACT SKT CRIMP 16-18AWG GOLD

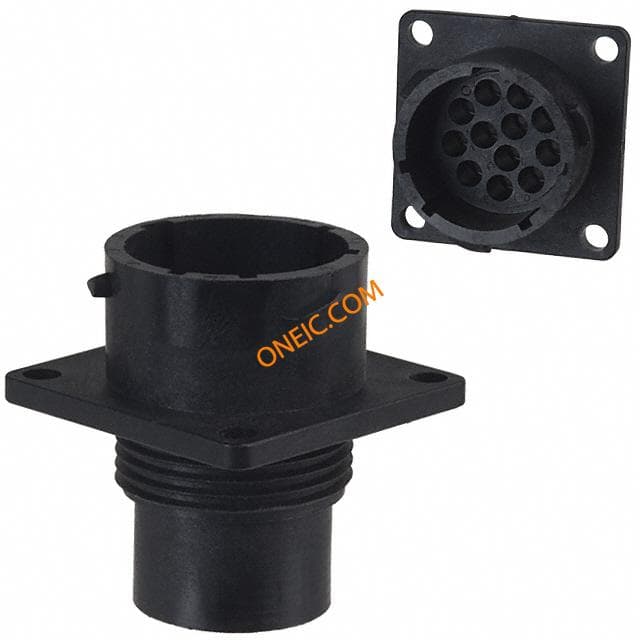

UTP01412P
