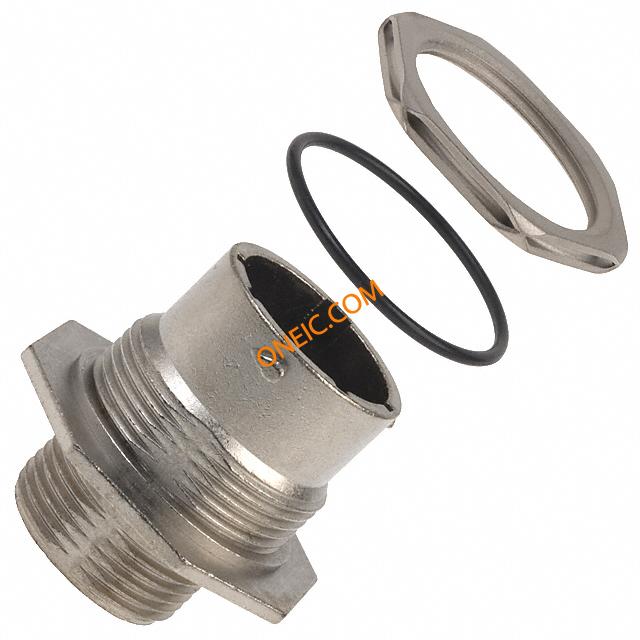

UT071412PH
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 12P Pin Receptacle Jam Nut Size 14 CONN RCPT MALE 12POS JAM NUT RECEPTACLE, MALE, SIZE14, 12WAY connector,metalcirc,jamnutrecept,for12size16pincont,ip68/ip69ksealing Souriau 12路 面板安装 连接器 插座 , 公触点, 外壳尺寸14 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1021 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250 V | ||
机械参数
| 重量 | 0.02 | 包装方式 | Bulk |
| 外壳尺寸 | 14 | 方向 | N (Normal) |
| 外壳样式 | Jam Nut | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Panel Mount, Bulkhead - Front Side Nut |
| 外壳镀层 | Nickel | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Panel |
| 外壳材料（壳体） | Zinc Alloy | 插入角度 | 14-12 |
| 本体材料 | :Aluminium | 第一触头极性 | Without Pin Contacts |
| 触点数 | 12 | 位数 | 12 |
| 外壳尺寸-插件 | 14-12 | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Plug |
| 系列 | UT0 | 产品特性 | Shielded |
| 产品子类型 | Receptacles | ||
环境参数
| 防护等级 | IP 67 | ||
