点击放大查看

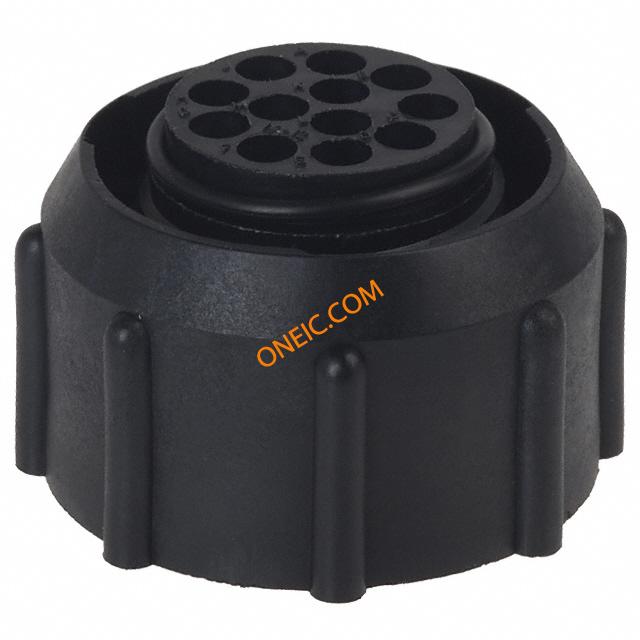

UTP61412S
| 制造商 | SOURIAU SAS |
| 描述 | CONN PLUG CABLE FEMALE 12POS Conn CPC SKT 12 POS ST Cable Mount 12 Terminal 1 Port SOCKET, FREE, 12WAY connector,circularplastic,strcableplug,size14,for12size16socketcontact |
| 分类 |
商业参数
| 其他名称 | SOU1159 | 标准包装数量 | 50 |
合规参数
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | :750V | 工作电压 | :750V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.01867 | 直径 | 34.5 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | Keyed | 触点形式 | 12Signal |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug for Female Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Cable |
| 插入角度 | :14-12 | 本体材料 | :Glass Filled Thermoplastic |
| 总长度 | 23.9 mm | 第一触头极性 | SKT |
| 连接器颜色 | :Black | 触点数 | 12 POS |
| 位数 | 12 | 外壳尺寸-插件 | 14-12 |
| 外壳材料及表面处理 | Thermoplastic, Glass Filled | 第一连接器安装类型 | :Cable |
| 外壳尺寸-插入件（转换至） | 14-12 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | :UTP |
| 射频系列/标准 | UTP | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -55C to 125C |
