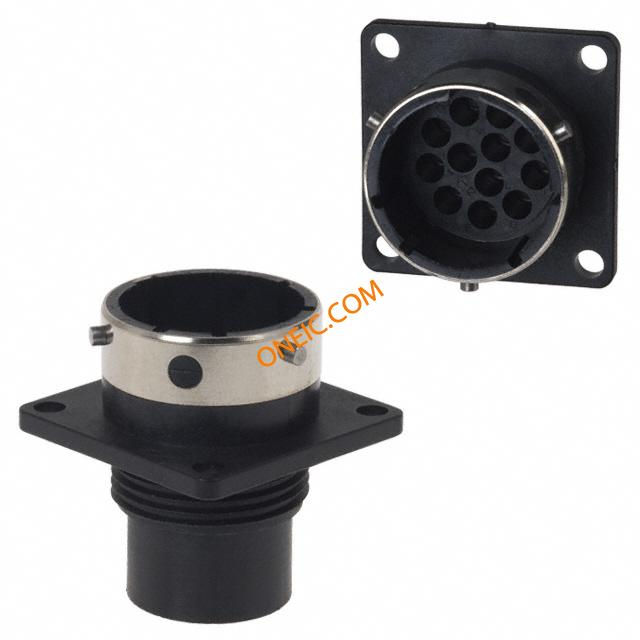

UTG01412P
| 制造商 | SOURIAU SAS |
| 描述 | CONN RCPT MALE 12POS WALL MT Conn CPC With Metal Coupling PIN 12 POS Crimp ST Wall Mount 12 Terminal 1 Port Bag CIRCULAR CONN, RECEPTACLE, 12 WAY, PANEL Conn.;Circ.;Socket;14ShellSize;MaleInsert;12#16PinCnts;PnlMnt;UTG |
| 分类 |
商业参数
| 其他名称 | SOU1109 | 标准包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant Part | 海关税号 | 85369010 |
| 抗辐射加固 | No | 材料阻燃等级 | :UL94V-0 |
电气参数
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 深度 | 28.6 mm | 高度 | 28.6 mm |
| 重量 | 0.01326 | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 端接方式 | Crimp | 触点形式 | 12Signal |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Flange | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Wall |
| 插入角度 | :14-12 | 本体材料 | :Glass Filled Thermoplastic |
| 总长度 | 31.7 mm | 第一触头极性 | PIN |
| 触点数 | 12 POS | 位数 | 12 |
| 外壳尺寸-插件 | 14-12 | 外壳材料及表面处理 | Thermoplastic, Glass Filled |
| 第一连接器安装类型 | :Panel | 外壳尺寸-插入件（转换至） | 14-12 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | RCP |
| 系列 | :UTG | 射频系列/标准 | UTG |
环境参数
| NEMA 机架尺寸 | :IP65 | 工作温度 | -55C to 125C |
文档与媒体
