点击放大查看

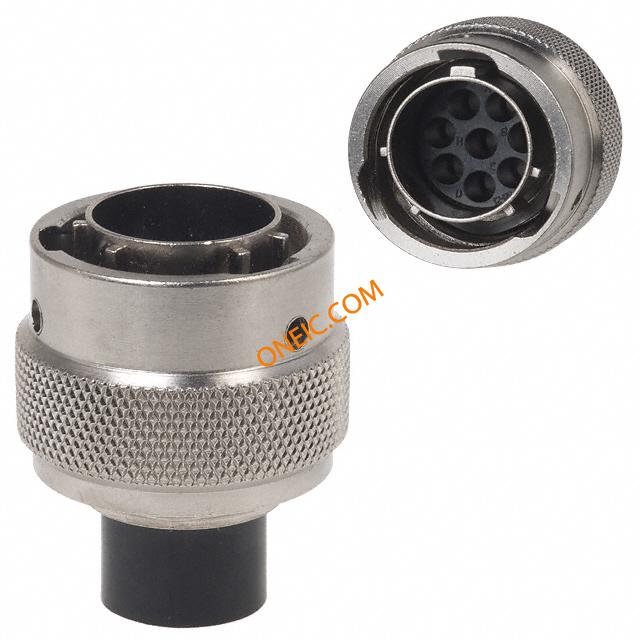

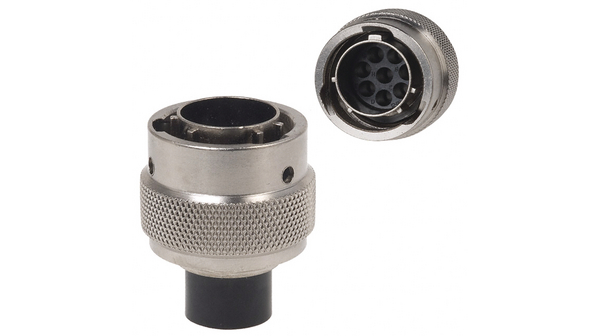

UT06128PH
| 制造商 | SOURIAU SAS |
| 描述 | CONN PLUG CABLE 8POS MALE Standard Circular Connector 8P Strt Pin Plug Size 12 CIRCULAR CONNECTOR, PLUG, 12-8, CABLE CONN HSG PLUG 8POS INLINE PIN connector,metalcircular,strplug,for8size16pincontact,ip68/ip69ksealing Cable plug UT0 8-pin Trim Trio UT0 8P Male 12, UT06128PH, Souriau |
| 分类 |
商业参数
| 商标名 | Trim Trio | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 测试电压 | :2000V | 额定电压 | 250 V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.01781 | 包装方式 | Bulk |
| 外壳尺寸 | 12 | 方向 | N (Normal) |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Nickel |
| 连接器类型 | Plug for Male Contacts | 紧固类型 | Bayonet Lock |
| 外壳材料（壳体） | Zinc Alloy | 插入角度 | 12-8 |
| 本体材料 | :Zinc Alloy | 第一触头极性 | Without Pin Contacts |
| 触点数 | 8 | 位数 | 8 |
| 外壳尺寸-插件 | 12-8 | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Plug |
| 系列 | UT0 | 产品特性 | Shielded |
| 产品子类型 | Cable Plugs | ||
环境参数
| 插拔次数 | :500 | NEMA 机架尺寸 | :IP67, IP69K |
| 防护等级 | IP67/69K - Dust Tight, Waterproof | 工作温度 | :+105°C |
文档与媒体
相关型号
UT07128SH
Souriau
Standard Circular Connector 8P Sckt Receptacle Jam Nut Size 12 Conn Metal Circular SKT 8 POS Crimp ST Jam Nut 8 Terminal 1 Port CONN RCPT FEMALE 8POS JAM NUT RECEPTACLE, FEMALE, SIZE12, 8WAY connector,metalcirc,jamnutrecept,for8size16socketcont,ip68/ip69sealing Souriau 8路 面板安装 连接器 插座 ,母触芯, 外壳尺寸12
UT00128SH
Souriau
Standard Circular Connector 8P Sckt Receptacle Wall Mount Size 12 CONN RCPT FEMALE 8POS WALL MNT UTO0128SH female square flange receptacle, IP67 and 48h salt spray connector,metalcirc,wallrecept,for8size16socketcont,ip68/ip69ksealing
UT012AC
Souriau
Standard Circular Connector Cable Clamp Size 12 With Strain Relief Connector Accessories Metal Cable Clamp With Strain Relief Shell Size 12 CONN CABLE CLAMP METAL #12 HOOD, METAL, STRAIN RELIEF, SIZE 12 UTO-UTOW cable clamp,strain relief,
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格

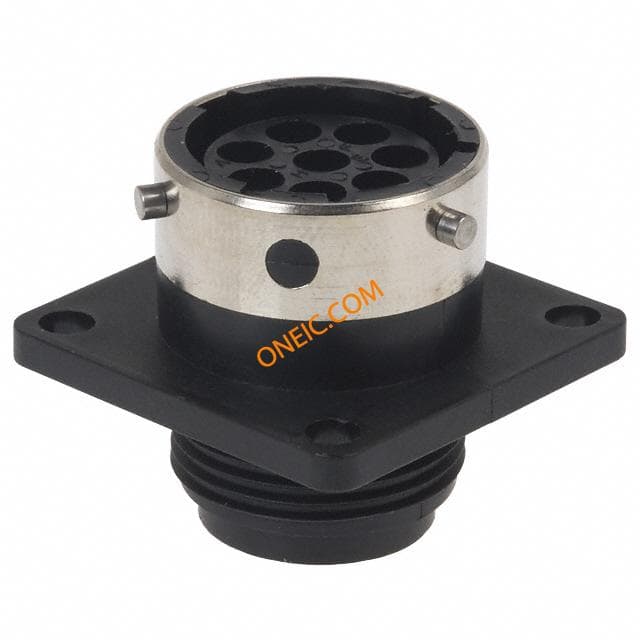

UTG012-8S
Souriau
Standard Circular Connector 8P Socket Receptacle Wall Mount Size 12 CONN RCPT FEMALE 8POS WALL MT connector,plasticcircular,metalcouplingring,wallrecept,size12,for8socket CONN HSG RCPT 8POS WALL MNT SKT Female receptacle Trim Trio 8-pin Trim Trio UTG 8P Female 12, UTG012-8S, Souriau
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD

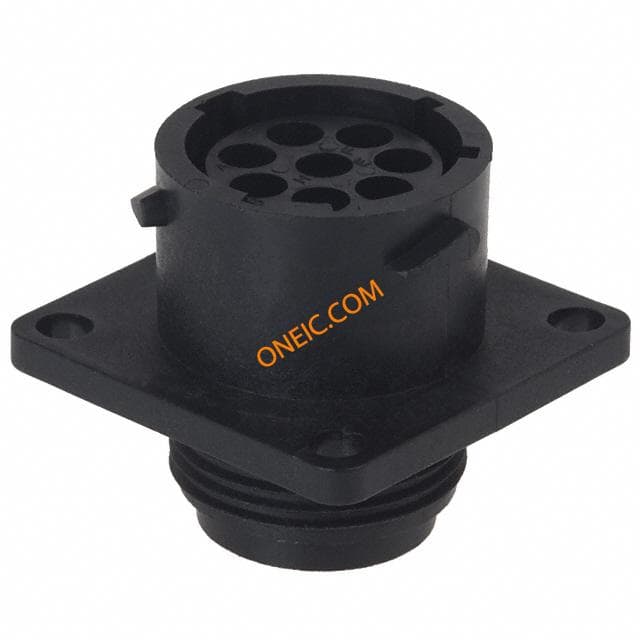

UTP0128S
