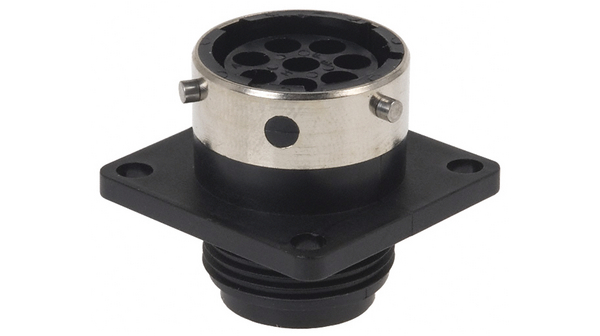

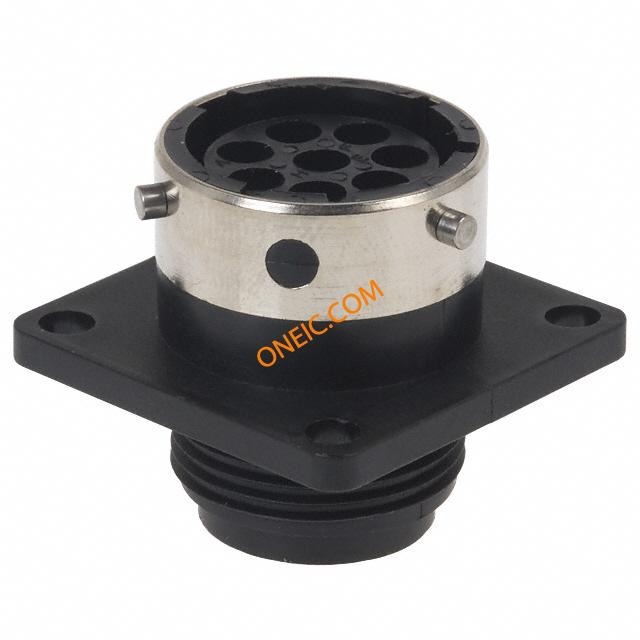

UTG012-8S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 8P Socket Receptacle Wall Mount Size 12 CONN RCPT FEMALE 8POS WALL MT connector,plasticcircular,metalcouplingring,wallrecept,size12,for8socket CONN HSG RCPT 8POS WALL MNT SKT Female receptacle Trim Trio 8-pin Trim Trio UTG 8P Female 12, UTG012-8S, Souriau |
| 分类 |
商业参数
| 商标名 | Trim Trio | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 频率 | 26.2 | 额定电压 | 500 |
| 极数 | 8 | 最大额定电流 | 13 A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 12 |
| 方向 | Keyed | 外壳样式 | Square Flange |
| 触点形式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Panel Mount, Flange |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Wall | 外壳材料（壳体） | Thermoplastic |
| 连接器样式 | with flange | 插入角度 | 12-8 |
| 锁定特性 | Bayonet locking | 触头材料 | CuNi+Au |
| 壳体材料 | Metal | 端接样式 | Crimp Connection |
| 第一触头极性 | Without Socket Contacts | 外径 | 19 |
| 触点数 | 8 | 位数 | 8 |
| 外壳尺寸-插件 | 12-8 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Thermoplastic, Glass Filled | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | UTG |
| 产品子类型 | Receptacles | 放大器类型 | 24.3 |
| 输出配置 | Panel Mount, Flange | ||
环境参数
| 工作温度 | -55...+125 °C | ||
