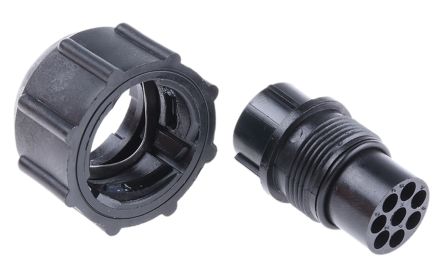

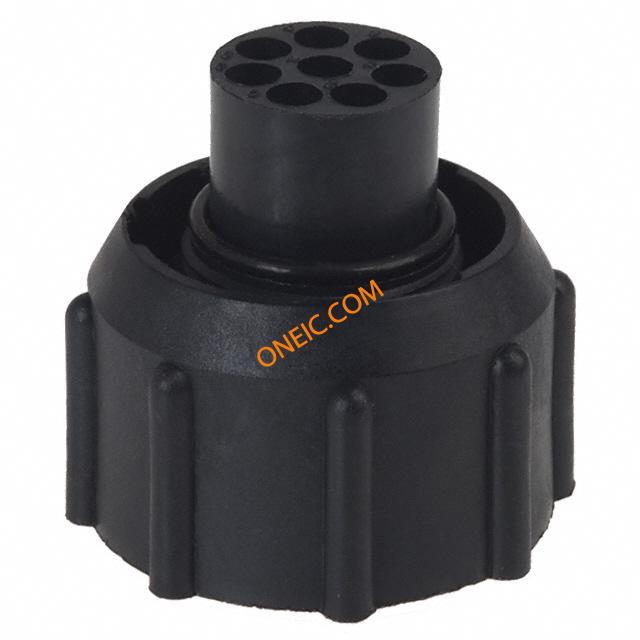

UTP6128P
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 8P Straight Pin Plug Shell Size 12 Conn CPC PIN 8 POS ST Cable Mount 8 Terminal 1 Port CONN PLUG CABLE MALE 8POS 8 Way Male Cable Mount Connector,Male Contacts,Shell Size 12 PLUG, FREE, 8WAY connector,circularplastic,strcableplug,size12,for8size16socketcontact Souriau 8路 电缆安装 连接器 卡口耦合 插头 , 公触点, 外壳尺寸12 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1158 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | :750V | 工作电压 | :750V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.01561 | 直径 | 31.4 |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 12 | 方向 | Keyed |
| 触点尺寸 | 16 | 触头类型 | 8Signal |
| 安装类型 | Cable Mount | 连接器类型 | Plug for Male Contacts |
| 紧固类型 | Bayonet Lock | 外壳材料（壳体） | Thermoplastic |
| 插入角度 | 12-8 | 本体材料 | :Glass Filled Thermoplastic |
| 总长度 | 31.8 | 第一触头极性 | PIN |
| 连接器颜色 | :Black | 触点数 | 8 |
| 位数 | 8 | 外壳尺寸-插件 | 12-8 |
| 外壳材料及表面处理 | Thermoplastic, Glass Filled | 第一连接器安装类型 | :Cable |
| 外壳尺寸-插入件（转换至） | 12-8 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | UTP |
| 产品子类型 | Cable Plugs | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | +125°C |
文档与媒体
相关型号
UT07128SH
Souriau
Standard Circular Connector 8P Sckt Receptacle Jam Nut Size 12 Conn Metal Circular SKT 8 POS Crimp ST Jam Nut 8 Terminal 1 Port CONN RCPT FEMALE 8POS JAM NUT RECEPTACLE, FEMALE, SIZE12, 8WAY connector,metalcirc,jamnutrecept,for8size16socketcont,ip68/ip69sealing Souriau 8路 面板安装 连接器 插座 ,母触芯, 外壳尺寸12
UT00128SH
Souriau
Standard Circular Connector 8P Sckt Receptacle Wall Mount Size 12 CONN RCPT FEMALE 8POS WALL MNT UTO0128SH female square flange receptacle, IP67 and 48h salt spray connector,metalcirc,wallrecept,for8size16socketcont,ip68/ip69ksealing
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格

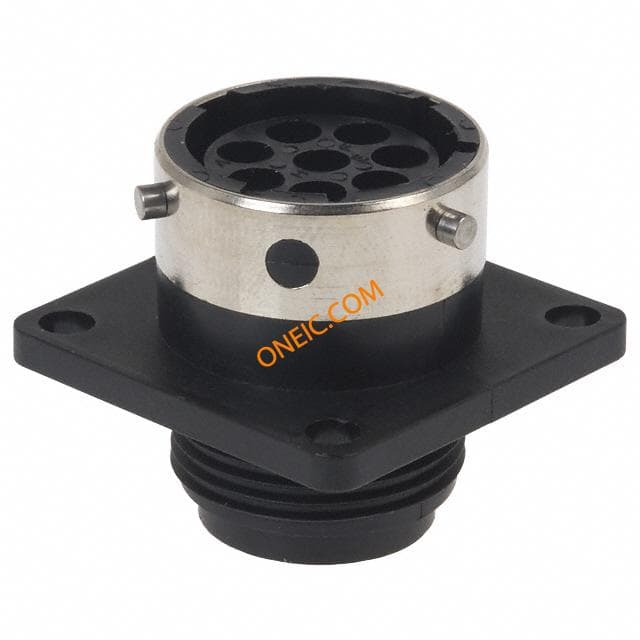

UTG012-8S
Souriau
Standard Circular Connector 8P Socket Receptacle Wall Mount Size 12 CONN RCPT FEMALE 8POS WALL MT connector,plasticcircular,metalcouplingring,wallrecept,size12,for8socket CONN HSG RCPT 8POS WALL MNT SKT Female receptacle Trim Trio 8-pin Trim Trio UTG 8P Female 12, UTG012-8S, Souriau
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD

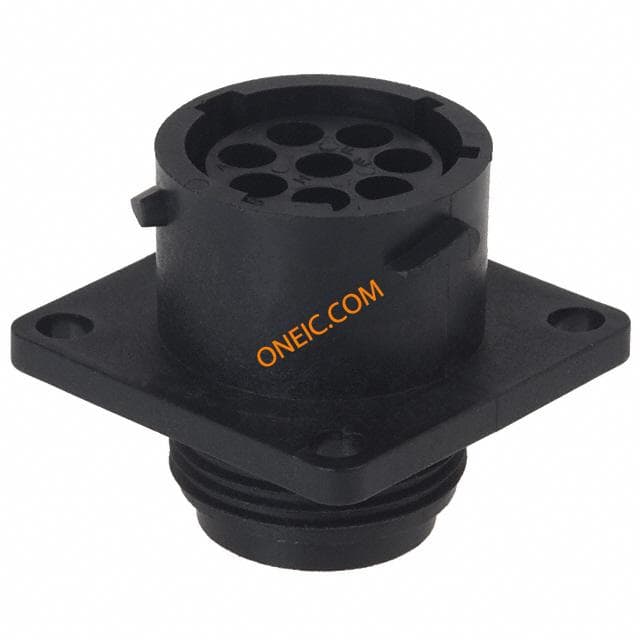

UTP0128S
Souriau
Standard Circular Connector 8P Socket Receptacle Wall Mount Size 12 Conn CPC SKT 8 POS ST Wall Mount 8 Terminal 1 Port CONN RCPT FEMALE 8POS WALL MNT 8 Way Female Wall Mount Connector,Female Contacts,Shell Size 12 SOCKET, PANEL MOUNT, 8WAY connector,plasticcircular,wallreceptacle,size12,for8size16socketcontact Souriau 8路 壁挂式 连接器 卡口耦合 插座 ,母触芯, 外壳尺寸12
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts
SM16M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 16 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 16-18AWG TIN CIRCULAR CONTACT, PIN, 16AWG, CRIMP Male #16 Stamped and formed crimp contact 2PCSTRIPHYFPIN#18-16
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP

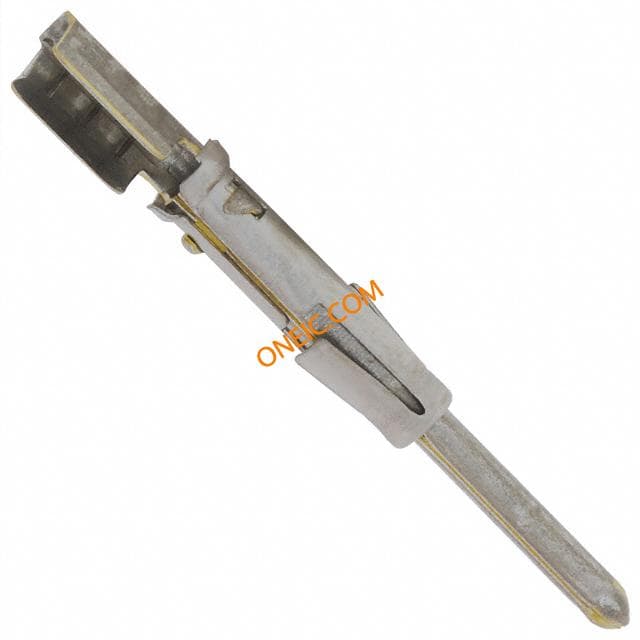

SM16ML-1TK6
