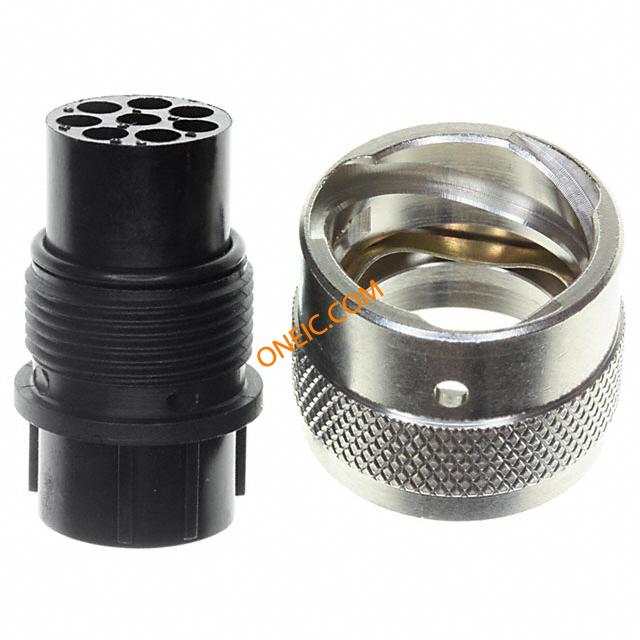

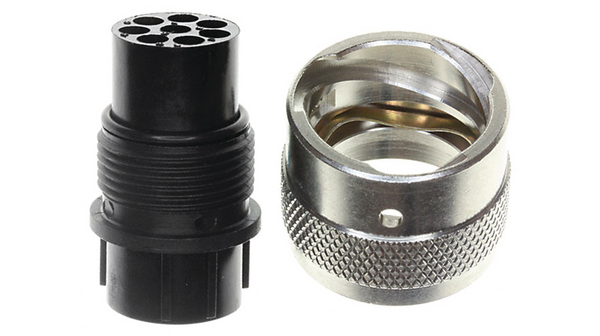

UTG612-8PN

点击放大查看

UTG612-8PN

制造商
SOURIAU SAS
描述Standard Circular Connector 8P Straight Pin Plug Shell Size 12 Conn Metalok Bantam PIN 8 POS Crimp ST Cable Mount 8 Terminal 1 Port CONN PLUG CABLE MALE 8POS connector,plasticcircular,metalcouplingring,strplug,size12,for8pincont Cable plug, Trim Trio 8-pin Male 12, UTG612-8PN, Souriau
分类
连接器解决方案圆形连接器标准圆形连接器
对参数有疑问？问 AI 助手

商业参数

商标名Trim Trio产品类别Standard Circular Connector
标准包装数量50工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
抗辐射加固No

电气参数

额定电压2 kV极数8
最大额定电流13 A

机械参数

直径24.8 mm包装方式Bulk
壳体颜色31.8外壳尺寸12
方向Keyed端接方式Crimp
触点形式8Signal触点尺寸16
触头类型8Signal安装类型Cable Mount
连接器类型Plug for Male Contacts紧固类型Bayonet Lock
安装样式Wire外壳材料（壳体）Thermoplastic
连接器样式straight插入角度12-8
锁定特性Bayonet locking触头材料CuNi+Au
壳体材料Metal总长度31.8 mm
端接样式Crimp Connection第一触头极性PIN
外径15.1触点数8
位数8外壳尺寸-插件12-8
第一连接器极性Male外壳材料及表面处理Thermoplastic, Glass Filled
外壳尺寸-插入件（转换至）12-8

产品信息

备注Contacts Not Provided类型Metalok Bantam
连接器性别PL系列UTG
产品子类型Cable Plugs放大器类型24.8
射频系列/标准UTG

环境参数

工作温度-55C to 125C

文档与媒体

PDF 文档
16, 20 Size Series Overview
PDF 文档
UTG Series
PDF 文档
utg_plastic_connector_with_metal_.pdf
