点击放大查看

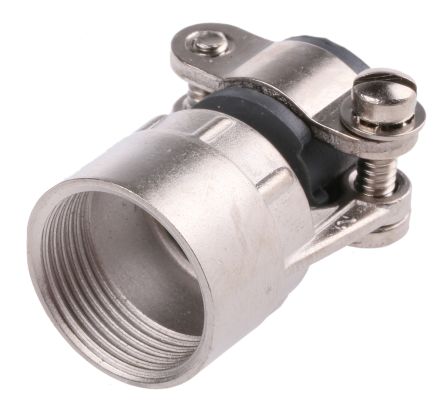

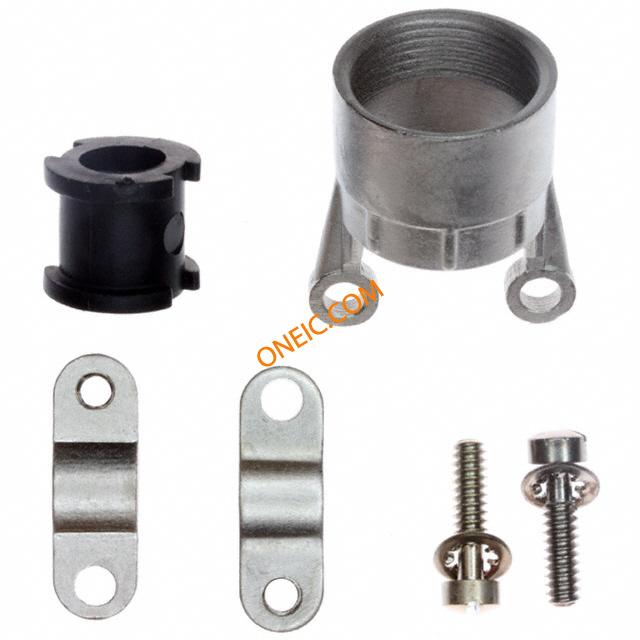

UT012AC
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector Cable Clamp Size 12 With Strain Relief Connector Accessories Metal Cable Clamp With Strain Relief Shell Size 12 CONN CABLE CLAMP METAL #12 HOOD, METAL, STRAIN RELIEF, SIZE 12 UTO-UTOW cable clamp,strain relief, |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1049 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
机械参数
| 深度 | 25 | 重量 | 9.03 |
| 直径 | 0.764" (19.4mm) | 外壳尺寸 | 12 |
| 螺纹尺寸 | 11/16-24 | 电缆开口 | 0.323" (8.20mm) |
| 外壳镀层 | Nickel | 外壳材料（壳体） | Zinc Alloy |
| 总长度 | 31.5 | 连接器颜色 | :Brushed Aluminium |
| 外壳尺寸-插件 | 12 | 绝缘材料 - 材质 | :Aluminium Alloy |
| 外径-未扩张 | :8.2mm | ||
产品信息
| 类型 | Clamp | 系列 | UT0 |
| 产品特性 | Strain Relief | 产品子类型 | Cable Clamps with Strain Relief |
| 附件类型 | Cable Clamp | 适用产品/相关产品 | :Circular Connectors |
