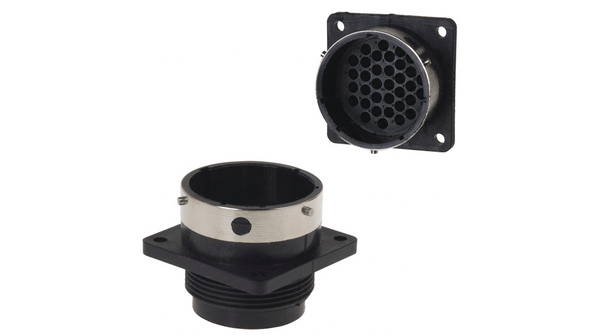

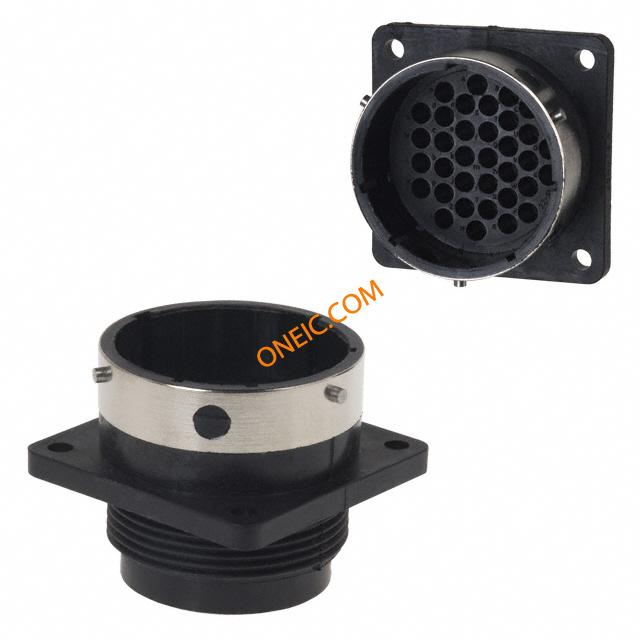

UTG022-35P

点击放大查看

UTG022-35P

制造商
SOURIAU SAS
描述Standard Circular Connector 35P Pin Receptacle Wall Mount Size 22 CONN RCPT MALE 35POS WALL MT Conn CPC With Metal Coupling PIN 35 POS Crimp ST Wall Mount 35 Terminal 1 Port Bag connector,plasticcircular,metalcouplingring,wallrecept,size22,for35pinco Male receptacle, Trim Trio 35-pin Trim Trio UTG 35P Male 22, UTG022-35P, Souriau
分类
连接器解决方案圆形连接器标准圆形连接器
对参数有疑问？问 AI 助手

商业参数

商标名Trim Trio产品类别Standard Circular Connector
标准包装数量25工厂包装数量25

合规参数

RoHSRoHS Compliant抗辐射加固No

电气参数

频率39.3额定电压500
极数35最大额定电流13 A

机械参数

深度39.7 mm高度39.7 mm
直径Not Required mm包装方式Bulk
出线方向No外壳尺寸22
方向Keyed外壳样式Square Flange
端接方式Crimp触点形式35Signal
触点尺寸16触头类型Crimp
安装类型Panel Mount, Flange连接器类型Receptacle for Male Contacts
紧固类型Bayonet Lock安装样式Wall
外壳材料（壳体）Thermoplastic连接器样式with flange
插入角度22-35锁定特性Bayonet locking
触头材料CuNi+Au壳体材料Metal
总长度33.3 mm端接样式Crimp Connection
第一触头极性Without Pin Contacts外径34.9
触点数35位数35
外壳尺寸-插件22-35第一连接器极性Male
外壳材料及表面处理Thermoplastic, Glass Filled外壳尺寸-插入件（转换至）22-35

产品信息

备注Contacts Not Provided连接器性别RCP
系列UTG产品子类型Receptacles
放大器类型33.3射频系列/标准UTG

环境参数

工作温度-55C to 125C

文档与媒体

PDF 文档
16, 20 Size Series Overview
PDF 文档
UTG Series
PDF 文档
168658.pdf
PDF 文档
utg_plastic_connector_with_metal_.pdf

相关型号

UT062235SH

UT062235SH

Souriau

Standard Circular Connector 35P Strt Socket Plug Size 22 CONN PLUG CABLE 35POS FEMALE SOCKET HOUSING, FREE, 35WAY Cable socket UT0 35-pin Trim Trio UT0 35P Female 22, UT062235SH, Souriau Souriau UT0 系列 35路 电缆安装 直向 圆形连接器 插头 , 母触点, 卡口式接合

¥207.2810
详情
SM24ML-1TK6

SM24ML-1TK6

Souriau

Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格

¥1.7680
详情

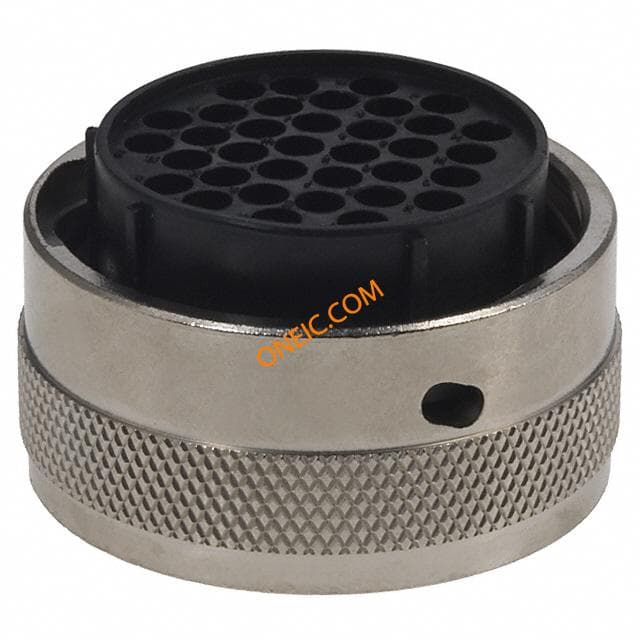

UTG622-35SN
