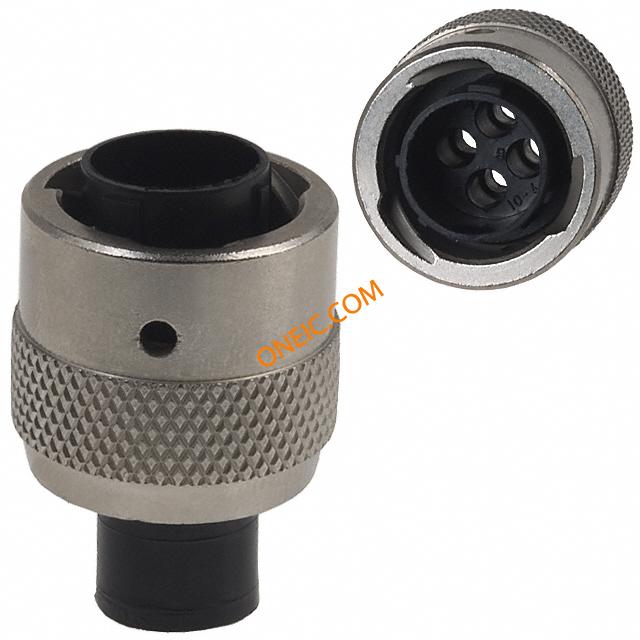

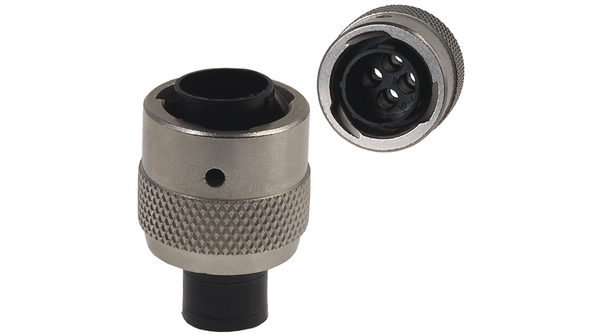

UTG610-4PN
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 4P Straight Pin Plug Shell Size 10 Conn Metalok Bantam PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CONN PLUG CABLE MALE 4POS connector,plasticcircular,metalcouplingring,strplug,size10,for4pincont Cable plug, Trim Trio 4-pin Male 10, UTG610-4PN, Souriau |
| 分类 |
商业参数
| 商标名 | Trim Trio | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 2 kV | 极数 | 4 |
| 最大额定电流 | 13 A | ||
机械参数
| 直径 | 21.6 | 包装方式 | Bulk |
| 壳体颜色 | 31.8 | 外壳尺寸 | 10 |
| 方向 | Keyed | 端接方式 | Crimp |
| 触点尺寸 | 16 | 触头类型 | 4Signal |
| 安装类型 | Cable Mount | 连接器类型 | Plug for Male Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Wire |
| 外壳材料（壳体） | Thermoplastic | 连接器样式 | straight |
| 插入角度 | 10-4 | 锁定特性 | Bayonet locking |
| 触头材料 | CuNi+Au | 壳体材料 | Metal |
| 总长度 | 31.8 | 端接样式 | Crimp Connection |
| 第一触头极性 | PIN | 外径 | 12.2 |
| 触点数 | 4 | 位数 | 4 |
| 外壳尺寸-插件 | 10-4 | 第一连接器极性 | Male |
| 外壳材料及表面处理 | Thermoplastic, Glass Filled | 外壳尺寸-插入件（转换至） | 10-4 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Metalok Bantam |
| 连接器性别 | PL | 系列 | UTG |
| 产品子类型 | Cable Plugs | 放大器类型 | 21.6 |
环境参数
| 工作温度 | -55...+125 °C | ||
文档与媒体
相关型号
UT00104SH
Souriau
Standard Circular Connector 4P Sckt Receptacle Wall Mount Size 10 Conn Metal Circular SKT 4 POS Crimp ST Wall Mount 4 Terminal 1 Port Bag CONN RCPT FEMALE 4POS WALL MNT connector;metal circ;wall recept;for 4 size 16 socket cont;ip68/ip69k sealing UTO0104SH female square flange receptacle, IP67 and 48h salt spray connector,metalcirc,wallrecept,for4size16socketcont,ip68/ip69ksealing
UT07104SH
Souriau
Standard Circular Connector 4P Sckt Receptacle Jam Nut Size 10 CONN RCPT FEMALE 4POS JAM NUT Conn Metal Circular SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Bag connector,metalcirc,jamnutrecept,for4size16socketcont,ip68/ip69ksealing
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts

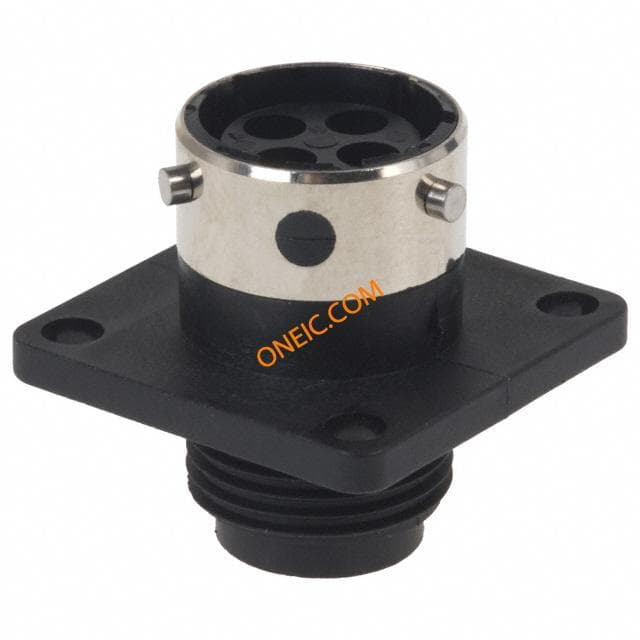

UTG010-4S
Souriau
Standard Circular Connector 4P Socket Receptacle Wall Mount Size 10 Conn CPC With Metal Coupling SKT 4 POS Crimp ST Wall Mount 4 Terminal 1 Port Bag CONN RCPT FEMALE 4POS WALL MT connector,plasticcircular,metalcouplingring,wallrecept,size10,for4socket CONN HSG RCPT 4POS WALL MNT SKT Female receptacle Trim Trio 4-pin Trim Trio UTG 4P Female 10, UTG010-4S, Souriau
SM16M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 16 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 16-18AWG TIN CIRCULAR CONTACT, PIN, 16AWG, CRIMP Male #16 Stamped and formed crimp contact 2PCSTRIPHYFPIN#18-16
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP

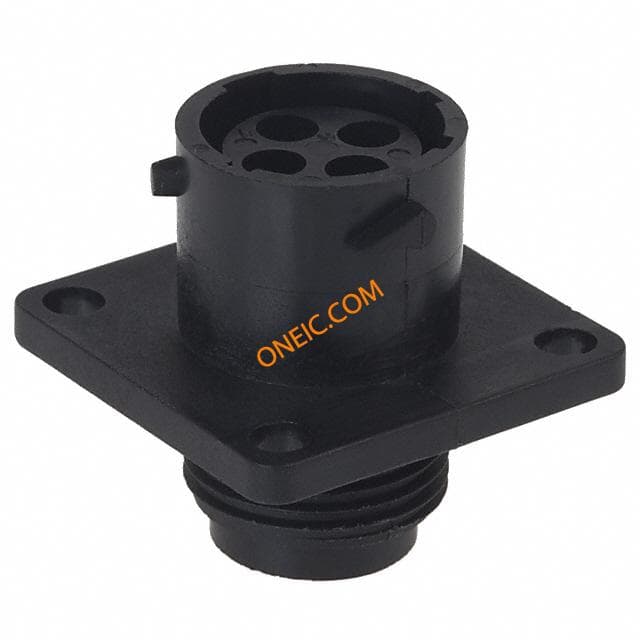

UTP0104S
