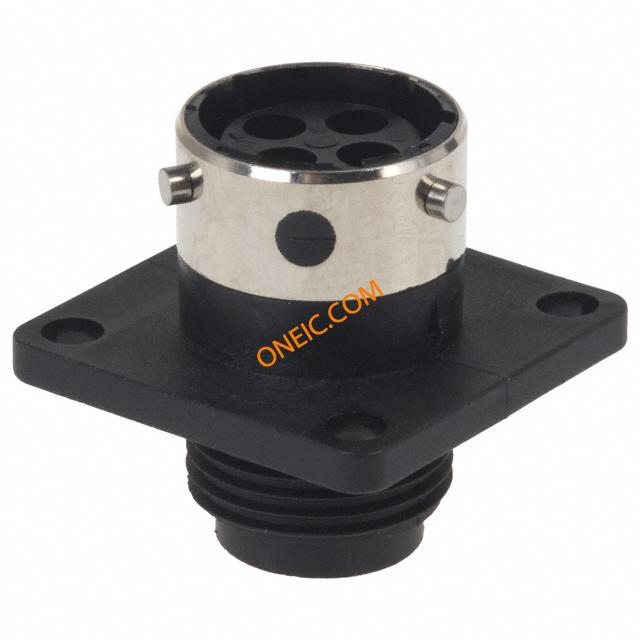

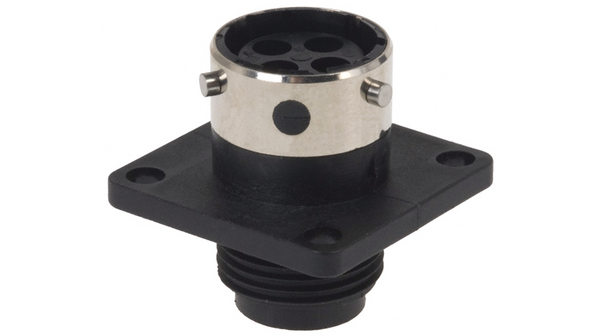

UTG010-4S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 4P Socket Receptacle Wall Mount Size 10 Conn CPC With Metal Coupling SKT 4 POS Crimp ST Wall Mount 4 Terminal 1 Port Bag CONN RCPT FEMALE 4POS WALL MT connector,plasticcircular,metalcouplingring,wallrecept,size10,for4socket CONN HSG RCPT 4POS WALL MNT SKT Female receptacle Trim Trio 4-pin Trim Trio UTG 4P Female 10, UTG010-4S, Souriau |
| 分类 |
商业参数
| 商标名 | Trim Trio | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 23.8 | 额定电压 | 500 |
| 极数 | 4 | 最大额定电流 | 13 A |
机械参数
| 深度 | 23.8 | 高度 | 23.8 |
| 包装方式 | Bag | 出线方向 | No |
| 外壳尺寸 | 10 | 方向 | Keyed |
| 外壳样式 | Square Flange | 端接方式 | Crimp |
| 触点形式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | 4Signal | 安装类型 | Wall Mount |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Wall | 外壳材料（壳体） | Thermoplastic |
| 连接器样式 | with flange | 插入角度 | 10-4 |
| 锁定特性 | Bayonet locking | 触头材料 | CuNi+Au |
| 壳体材料 | Metal | 总长度 | 24.3 |
| 端接样式 | Crimp Connection | 第一触头极性 | SKT |
| 外径 | 15 | 触点数 | 4 |
| 位数 | 4 | 外壳尺寸-插件 | 10-4 |
| 第一连接器极性 | Female | 外壳材料及表面处理 | Thermoplastic, Glass Filled |
| 外壳尺寸-插入件（转换至） | 10-4 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC With Metal Coupling |
| 连接器性别 | RCP | 系列 | UTG |
| 产品子类型 | Receptacles | 放大器类型 | 24.3 |
| 输出配置 | Panel Mount, Flange | ||
环境参数
| 工作温度 | -55...+125 °C | ||
文档与媒体
相关型号
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau
UT06104PH
Souriau
Standard Circular Connector 4P Straight Pin Plug Size 10 CONN PLUG CABLE 4POS MALE PIN HOUSING, FREE, 4WAY CONN HSG PLUG 4POS INLINE PIN connector,metalcircular,strplug,for4size16pincontact,ip68/ip69ksealing Cable plug UT0 4-pin Trim Trio UT0 4P Male 10, UT06104PH, Souriau
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate

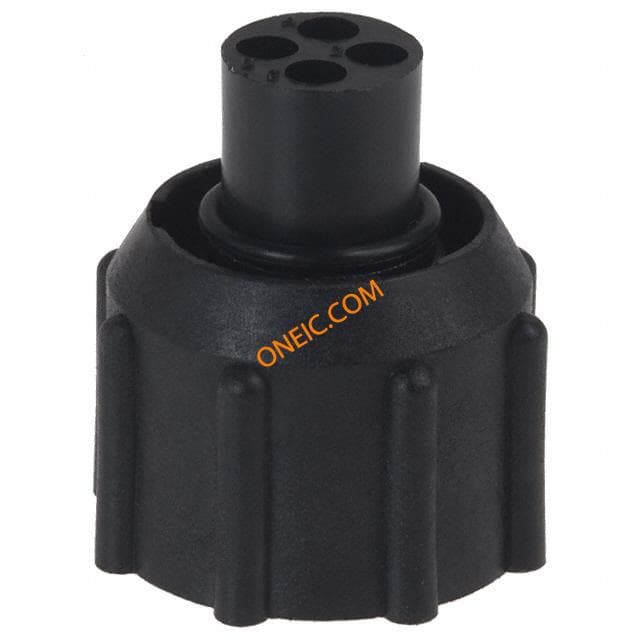

UTP6104P
Souriau
Standard Circular Connector 4P Straight Pin Plug Shell Size 10 CONN PLUG CABLE MALE 4POS 4 Way Male Cable Mount Connector,Male Contacts,Shell Size 10 PLUG, FREE, 4WAY connector,circularplastic,strcableplug,size10,for4size16pincontact Souriau 4路 电缆安装 连接器 卡口耦合 插头 , 公触点, 外壳尺寸10
SC16ML-1D70
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD connector component;stamped and formed crimp socket cont;size 16;18-16awg wire connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;GoldPlate
UTFD12B
Souriau
Circular MIL Spec Tools, Hardware & Accessories Receptacle Seal Wall Mount Size 10 CONN SEALING FOR WALL RCPT #10 Circular Connector Seal Receptacle Wall Mount Connector Accessories Receptacle Wall Mounting Seal 10 Shell Size SquareGasketSeal-UT SQUARE SEAL 24mm

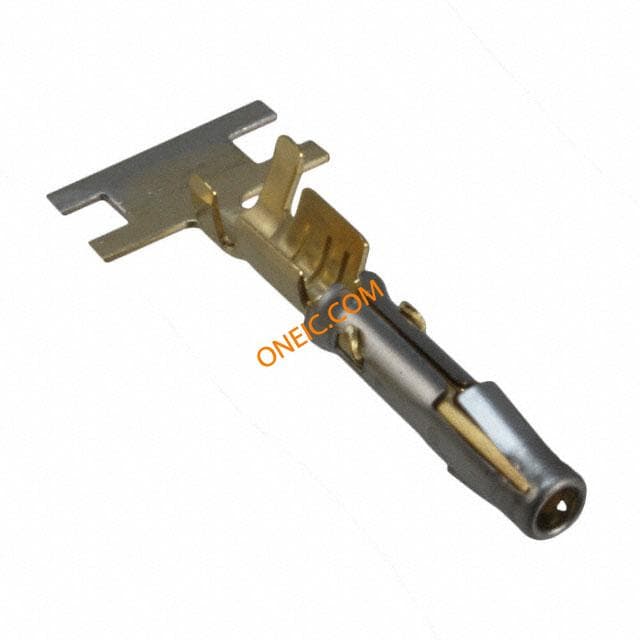

SC16M11S6
