点击放大查看

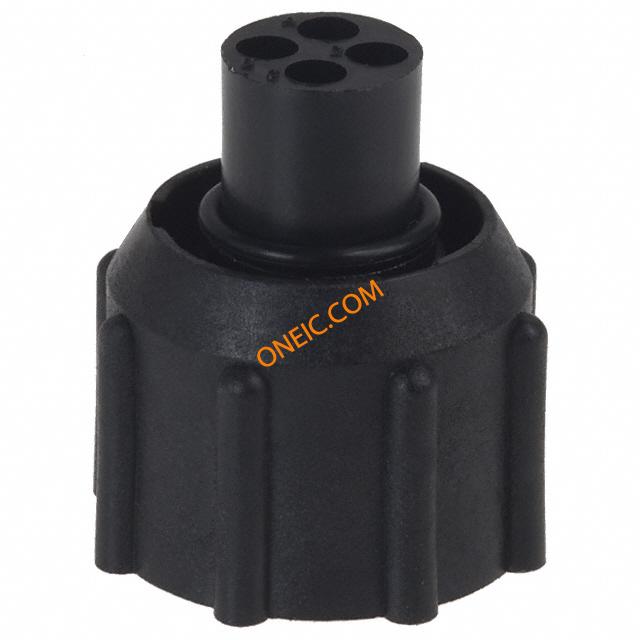

UTP6104P
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 4P Straight Pin Plug Shell Size 10 CONN PLUG CABLE MALE 4POS 4 Way Male Cable Mount Connector,Male Contacts,Shell Size 10 PLUG, FREE, 4WAY connector,circularplastic,strcableplug,size10,for4size16pincontact Souriau 4路 电缆安装 连接器 卡口耦合 插头 , 公触点, 外壳尺寸10 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1156 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | :750V | 工作电压 | :750V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.01 | 包装方式 | Bulk |
| 外壳尺寸 | 10 | 导线线规 | 16 |
| 方向 | Keyed | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug for Male Contacts | 紧固类型 | Bayonet Lock |
| 外壳材料（壳体） | Thermoplastic | 插入角度 | :10-4 |
| 本体材料 | :Glass Filled Thermoplastic | 第一触头极性 | Male |
| 连接器颜色 | :Black | 配接方向 | Bayonet |
| 触点数 | 4 | 位数 | 4 |
| 外壳尺寸-插件 | 10-4 | 外壳材料及表面处理 | Thermoplastic, Glass Filled |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Male |
| 系列 | UTP | 产品子类型 | Cable Plugs |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | +125°C |
