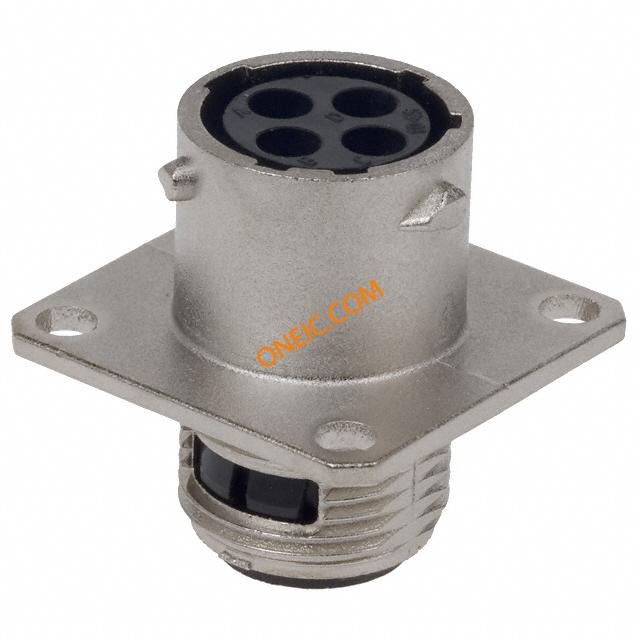

UT00104SH
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 4P Sckt Receptacle Wall Mount Size 10 Conn Metal Circular SKT 4 POS Crimp ST Wall Mount 4 Terminal 1 Port Bag CONN RCPT FEMALE 4POS WALL MNT connector;metal circ;wall recept;for 4 size 16 socket cont;ip68/ip69k sealing UTO0104SH female square flange receptacle, IP67 and 48h salt spray connector,metalcirc,wallrecept,for4size16socketcont,ip68/ip69ksealing |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1000 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 额定电压 | 250 V | ||
机械参数
| 深度 | 23.8 | 高度 | 23.8 |
| 重量 | 0.018 | 包装方式 | Bag |
| 出线方向 | No | 外壳尺寸 | 10 |
| 方向 | N (Normal) | 外壳样式 | Square Flange |
| 端接方式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | 4Signal | 安装类型 | Wall Mount |
| 外壳镀层 | Nickel | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Wall |
| 外壳材料（壳体） | Zinc Alloy | 插入角度 | 10-4 |
| 总长度 | 24.3 | 第一触头极性 | Without Socket Contacts |
| 触点数 | 4 | 位数 | 4 |
| 外壳尺寸-插件 | 10-4 | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 外壳尺寸-插入件（转换至） | 10-4 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Circular |
| 连接器性别 | RCP | 系列 | UT0 |
| 产品特性 | Shielded | 产品子类型 | Receptacles |
环境参数
| 防护等级 | IP 67 | ||
