UTP0104S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 4P Socket Receptacle Wall Mount Size 10 CONN RCPT FEMALE 4POS WALL MNT 4 Way Female Wall Mount Connector,Female Contacts,Shell Size 10 SOCKET, PANEL MOUNT, 4WAY connector,plasticcircular,wallreceptacle,size10,for4size16socketcontact Souriau 4路 壁挂式 连接器 卡口耦合 插座 ,母触芯, 外壳尺寸10 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1139 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | :750V | 工作电压 | :750V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.0703 | 包装方式 | Bulk |
| 外壳尺寸 | 10 | 方向 | Keyed |
| 外壳样式 | Square Flange | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Panel Mount, Flange |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 外壳材料（壳体） | Thermoplastic |
| 插入角度 | 10-4 | 本体材料 | :Glass Filled Thermoplastic |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 触点数 | 4 | 面板开孔形状 | :17.3mm |
| 位数 | 4 | 外壳尺寸-插件 | 10-4 |
| 外壳材料及表面处理 | Thermoplastic, Glass Filled | 第一连接器安装类型 | :Panel |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | UTP | 产品子类型 | Receptacles |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | +125°C |
文档与媒体
相关型号
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau
UT06104PH
Souriau
Standard Circular Connector 4P Straight Pin Plug Size 10 CONN PLUG CABLE 4POS MALE PIN HOUSING, FREE, 4WAY CONN HSG PLUG 4POS INLINE PIN connector,metalcircular,strplug,for4size16pincontact,ip68/ip69ksealing Cable plug UT0 4-pin Trim Trio UT0 4P Male 10, UT06104PH, Souriau
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate

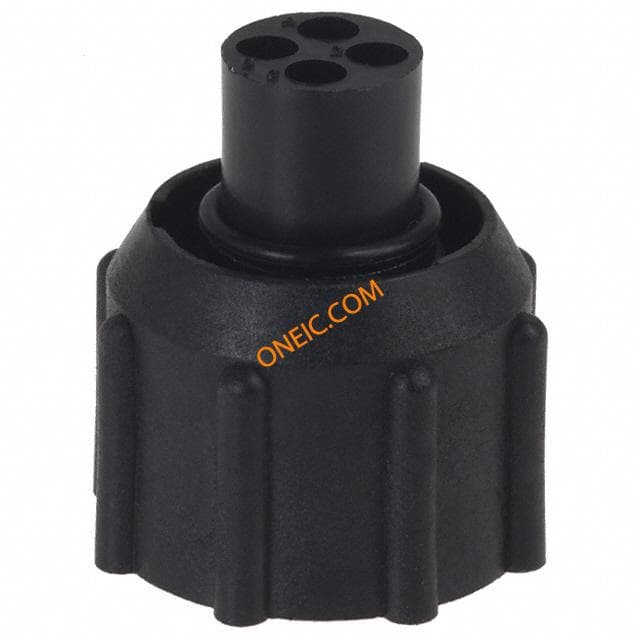

UTP6104P
Souriau
Standard Circular Connector 4P Straight Pin Plug Shell Size 10 CONN PLUG CABLE MALE 4POS 4 Way Male Cable Mount Connector,Male Contacts,Shell Size 10 PLUG, FREE, 4WAY connector,circularplastic,strcableplug,size10,for4size16pincontact Souriau 4路 电缆安装 连接器 卡口耦合 插头 , 公触点, 外壳尺寸10
SC16ML-1D70
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD connector component;stamped and formed crimp socket cont;size 16;18-16awg wire connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;GoldPlate
UTFD12B
Souriau
Circular MIL Spec Tools, Hardware & Accessories Receptacle Seal Wall Mount Size 10 CONN SEALING FOR WALL RCPT #10 Circular Connector Seal Receptacle Wall Mount Connector Accessories Receptacle Wall Mounting Seal 10 Shell Size SquareGasketSeal-UT SQUARE SEAL 24mm
SC16M11S6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG GOLD CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP

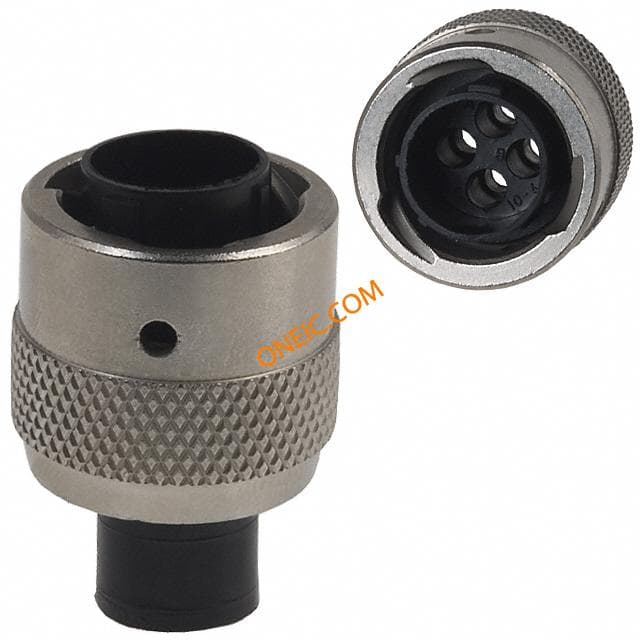

UTG610-4PN
