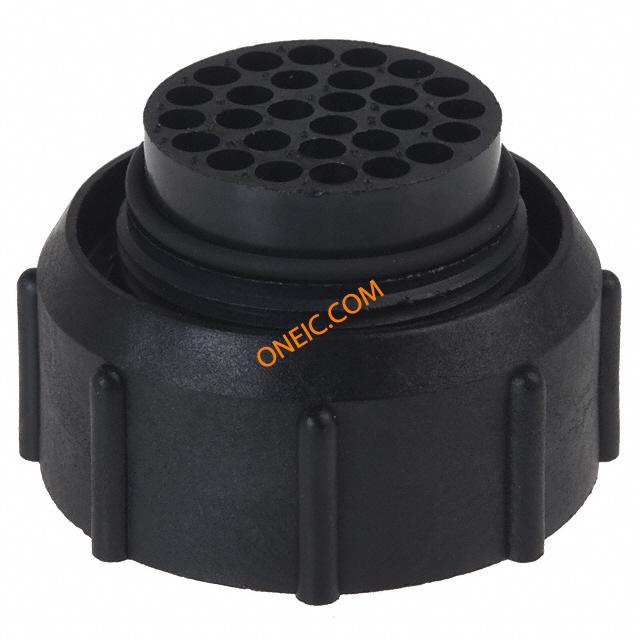

UTP62028P
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 28P Strt Pin Plug Shell Size 20 CONN PLUG CABLE MALE 28POS 28 Way Male Cable Mount Connector,Male Contacts,Shell Size 20 PLUG, FREE, 28WAY connector,circularplastic,strcableplug,size20,for28size16pincontact Souriau 28路 电缆安装 连接器 卡口耦合 插头 , 公触点, 外壳尺寸20 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1166 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | :750V | 工作电压 | :750V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.028 | 包装方式 | Bulk |
| 外壳尺寸 | 20 | 方向 | Keyed |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug for Male Contacts |
| 紧固类型 | Bayonet Lock | 外壳材料（壳体） | Thermoplastic |
| 插入角度 | 20-28 | 本体材料 | :Glass Filled Thermoplastic |
| 第一触头极性 | Male | 连接器颜色 | :Black |
| 触点数 | 28 | 位数 | 28 |
| 外壳尺寸-插件 | 20-28 | 外壳材料及表面处理 | Thermoplastic, Glass Filled |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Male |
| 系列 | UTP | 产品子类型 | Cable Plugs |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | +125°C |
文档与媒体
相关型号
UT002028SH
Souriau
Standard Circular Connector 28P Sckt Receptacle Wall Mount Size 20 CONN RCPT FEMALE 28POS WALL MNT CONNECTOR, CIRCULAR, RCPT, 28POS, PANEL Souriau UT0 系列 28路 壁挂式 直向 圆形连接器 插座 , 母触点, 卡口式接合
UT072028SH
Souriau
Standard Circular Connector 28P Sckt Receptacle Jam Nut Size 20 CONN RCPT FEMALE 28POS JAM NUT
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格

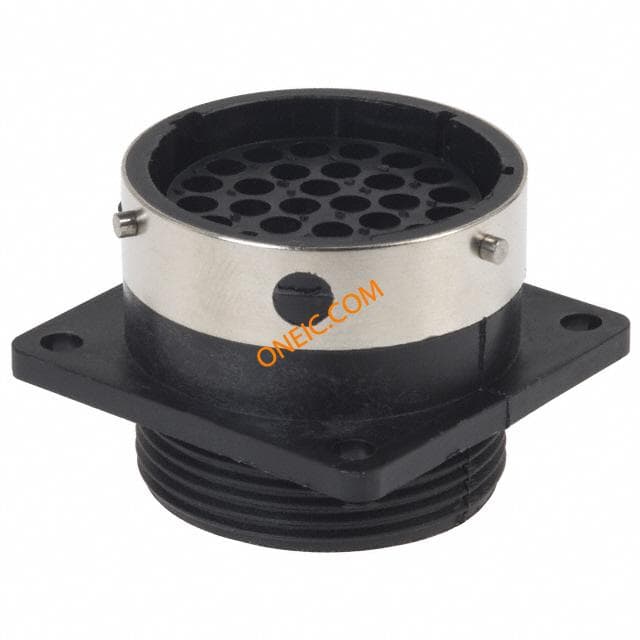

UTG020-28S
Souriau
Standard Circular Connector 28P Sckt Receptacle Wall Mount Size 20 Conn CPC With Metal Coupling SKT 28 POS Crimp ST Wall Mount 28 Terminal 1 Port Bag CONN RCPT FEMALE 28POS WALL MT connector,plasticcircular,metalcouplingring,wallrecept,size20,for28socket Female receptacle Trim Trio 28-pin Trim Trio UTG 28P Female 20, UTG020-28S, Souriau

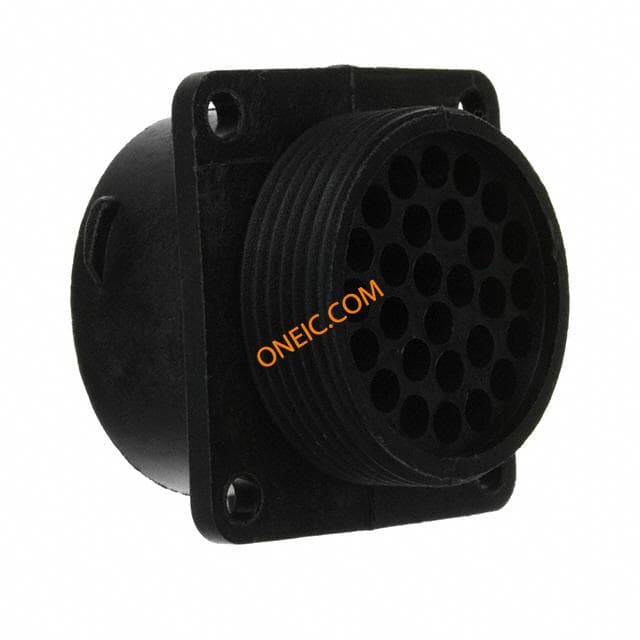

UTP02028S
Souriau
Standard Circular Connector 28P Sckt Receptacle Wall Mount Size 20 CONN RCPT FEMALE 28POS WALL MNT 28 Way Female Wall Mount Connector,Female Contacts,Shell Size 20 SOCKET, PANEL MOUNT, 28WAY WALLMTRECEPT-ALLPLA Souriau 28路 壁挂式 连接器 卡口耦合 插座 ,母触芯, 外壳尺寸20

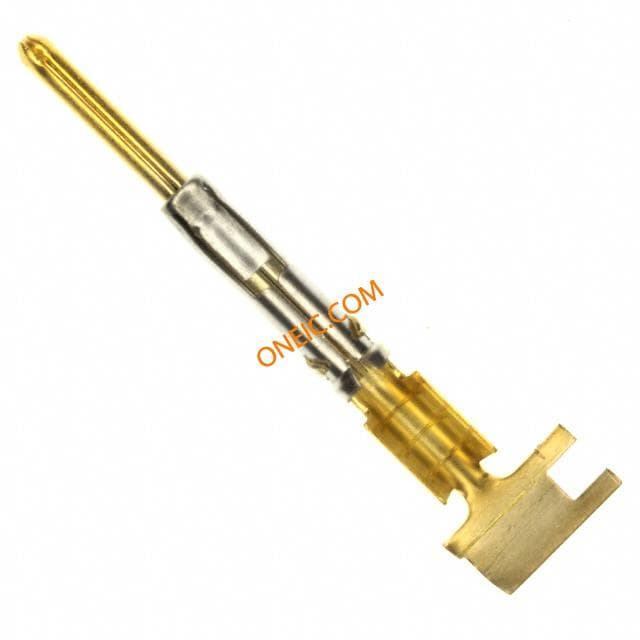

SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格

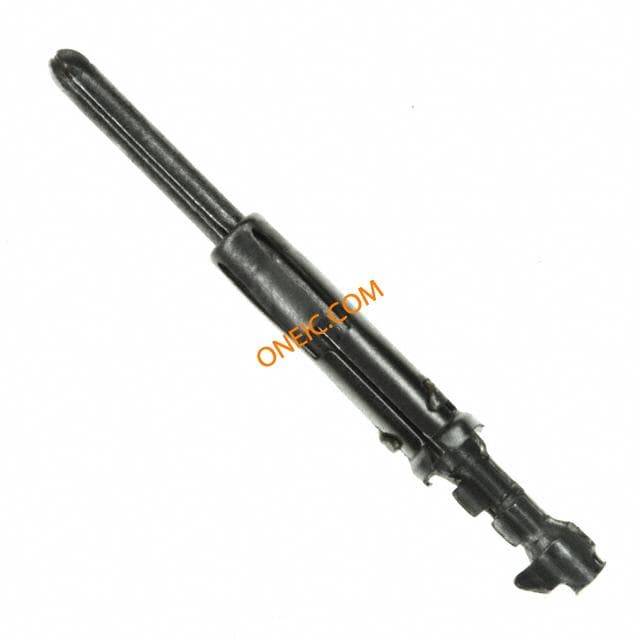

SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts
SM16M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 16 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 16-18AWG TIN CIRCULAR CONTACT, PIN, 16AWG, CRIMP Male #16 Stamped and formed crimp contact 2PCSTRIPHYFPIN#18-16

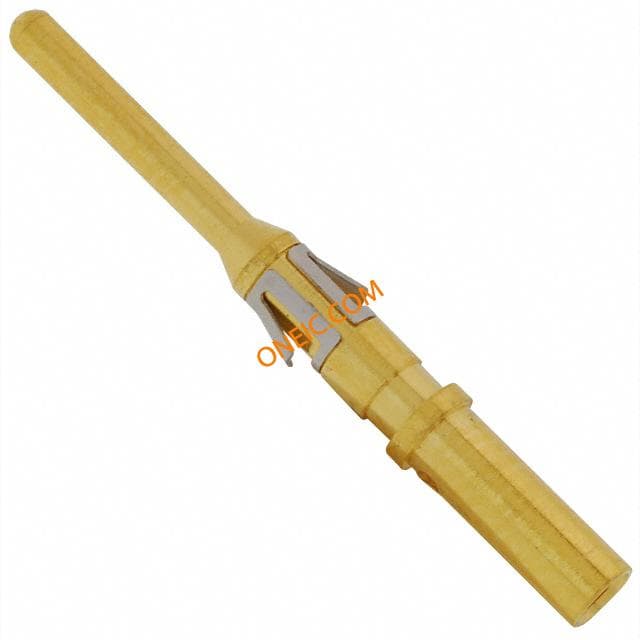

RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP

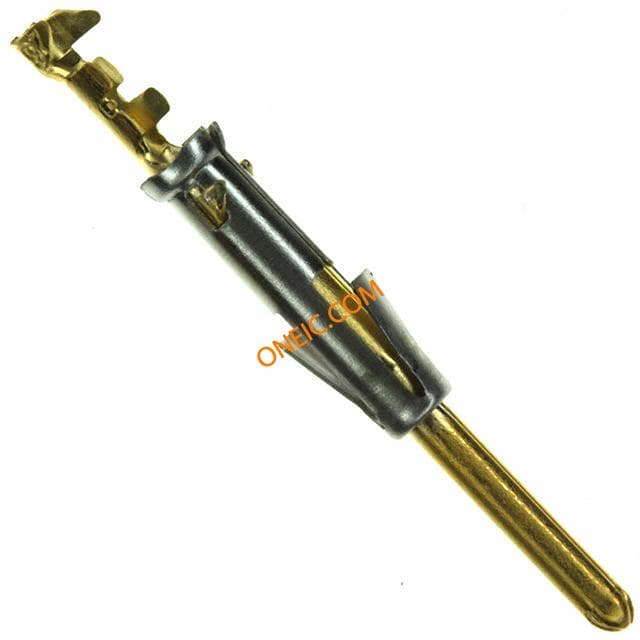

SM24M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG GOLD

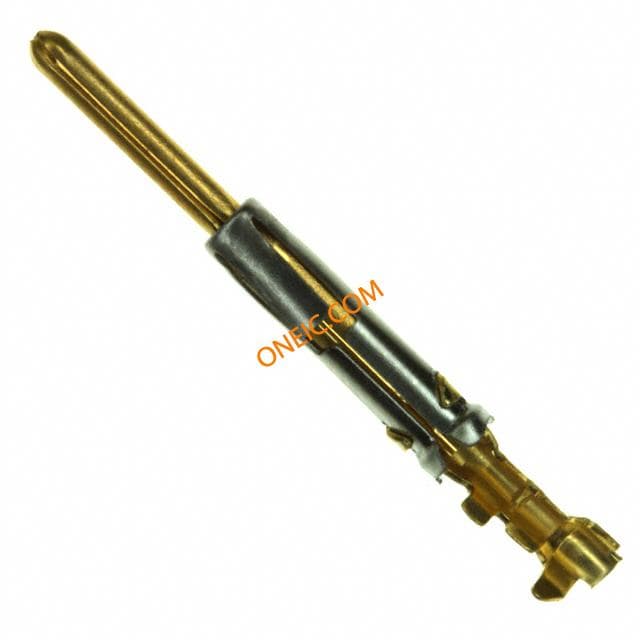

SM20M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG GOLD 2PCSTRIPHYFPIN#22-20

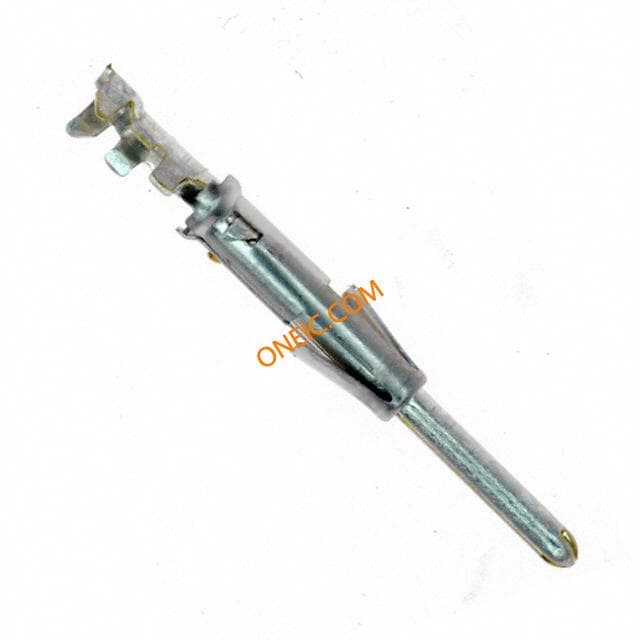

SM20ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 20-22AWG TIN Tin plate crimp pin contact,22-20awg connectorcomponent,stampedandformedcrimpcontact,size16,for22-20awgwire Contact;Pin;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格

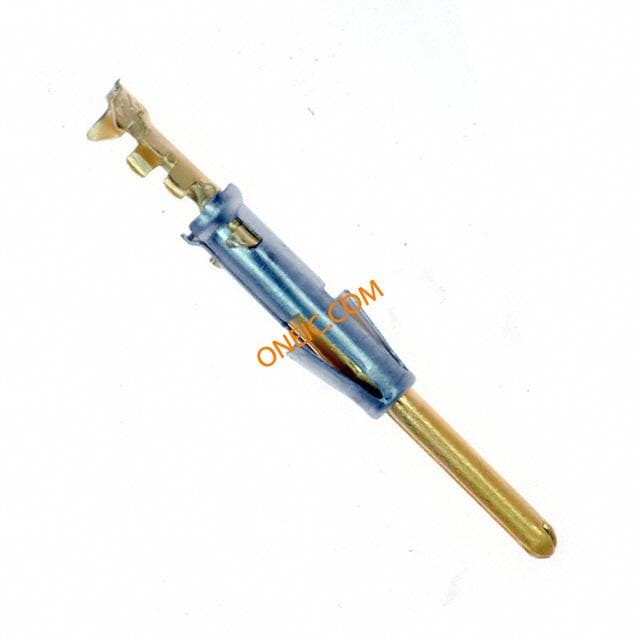

SM24ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimppincontact,size16,26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldFlashAll
SM14ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 14AWG TIN Souriau G-Bantamate, MBG, SMS Qikmate, UT-Bantam, UTG, UTGS, UTP SeriesSize 16 Tin Plated Crimp Pin Connector, 14AWG connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 14 AWG 线规格

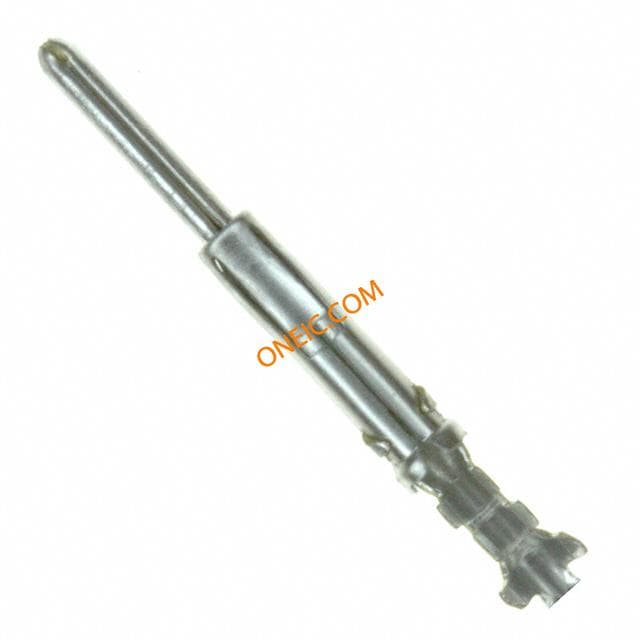

SM20M-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG TIN tapeandreelcontacts

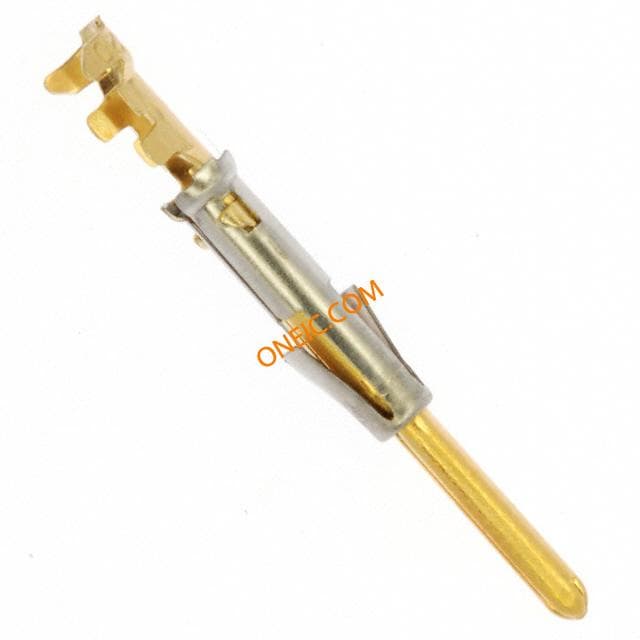

SM20ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for22-20awgwire Contact;Pin;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSMSer;GoldFlashAll

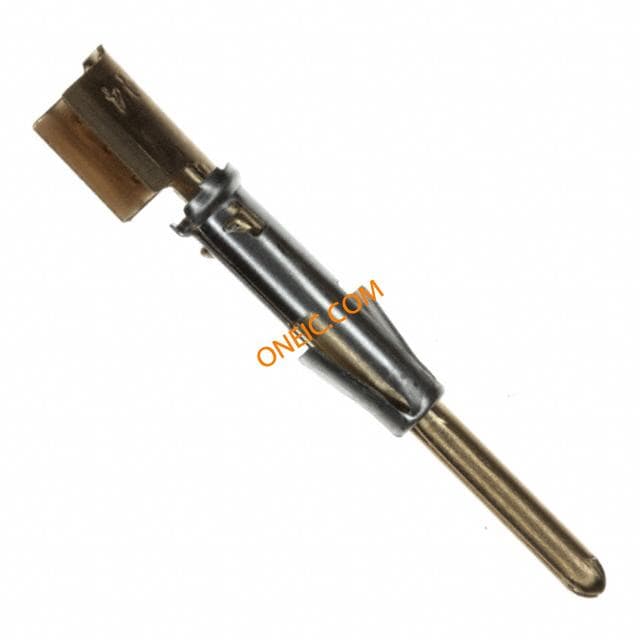

SM14ML-1S6
