UTG020-28S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 28P Sckt Receptacle Wall Mount Size 20 Conn CPC With Metal Coupling SKT 28 POS Crimp ST Wall Mount 28 Terminal 1 Port Bag CONN RCPT FEMALE 28POS WALL MT connector,plasticcircular,metalcouplingring,wallrecept,size20,for28socket Female receptacle Trim Trio 28-pin Trim Trio UTG 28P Female 20, UTG020-28S, Souriau |
| 分类 |
商业参数
| 商标名 | Trim Trio | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 36.3 | 额定电压 | 500 |
| 极数 | 28 | 最大额定电流 | 13 A |
机械参数
| 深度 | 36.5 | 高度 | 36.5 |
| 包装方式 | Bag | 出线方向 | No |
| 外壳尺寸 | 20 | 方向 | Keyed |
| 外壳样式 | Square Flange | 端接方式 | Crimp |
| 触点尺寸 | 16 | 触头类型 | 28Signal |
| 安装类型 | Wall Mount | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Wall |
| 外壳材料（壳体） | Thermoplastic | 连接器样式 | with flange |
| 插入角度 | 20-28 | 锁定特性 | Bayonet locking |
| 触头材料 | CuNi+Au | 壳体材料 | Metal |
| 总长度 | 27 | 端接样式 | Crimp Connection |
| 第一触头极性 | SKT | 外径 | 31.7 |
| 触点数 | 28 | 位数 | 28 |
| 外壳尺寸-插件 | 20-28 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Thermoplastic, Glass Filled | 外壳尺寸-插入件（转换至） | 20-28 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC With Metal Coupling |
| 连接器性别 | RCP | 系列 | UTG |
| 产品子类型 | Receptacles | 放大器类型 | 27 |
环境参数
| 工作温度 | -55...+125 °C | ||
文档与媒体
相关型号
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau
UT062028PH
Souriau
Standard Circular Connector 28P Strt Pin Plug Size 20 Conn Metal Circular PIN 28 POS Crimp ST Cable Mount 28 Terminal 1 Port Bag CONN PLUG CABLE 28POS MALE PIN HOUSING, FREE, 28WAY CONN HSG PLUG 28POS CABLE PIN Cable plug UT0 28-pin Trim Trio UT0 28P Male 20, UT062028PH, Souriau Souriau UT0 系列 28路 电缆安装 直向 圆形连接器 插头 , 公触点, 卡口式接合
UTFD17B
Souriau
Circular MIL Spec Tools, Hardware & Accessories Receptacle Seal Wall Mount Size 20 CONN SEALING FOR WALL RCPT #20 UTFD系列 法兰 密封填料, 外壳尺寸20, 31.8mm直径, 使用于UTP-UTG-UT0-UT0W, -40 → +105 °C
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate
SC16ML-1D70
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD connector component;stamped and formed crimp socket cont;size 16;18-16awg wire connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;GoldPlate
SC16M11S6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG GOLD CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP

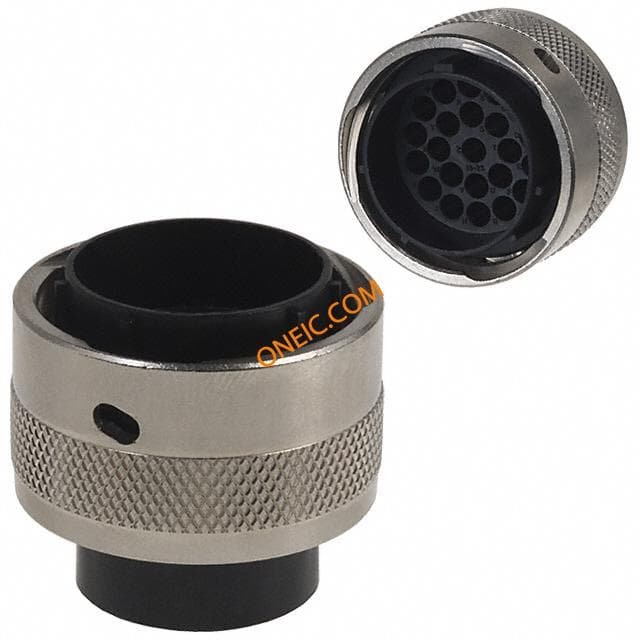

UTG620-28PN
Souriau
Standard Circular Connector 28P Strt Pin Plug Shell Size 20 Conn Metalok Bantam PIN 28 POS Crimp ST Cable Mount 28 Terminal 1 Port CONN PLUG CABLE MALE 28POS connector,plasticcircular,metalcouplingring,strplug,size20,for28pincont CONN HSG PLUG 28POS CABLE PIN Cable plug, Trim Trio 28-pin Male 20, UTG620-28PN, Souriau
SC20ML-1S6
Souriau
Standard Circular Contacts Trim Trio Socket 20 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size16,22-20awgwire Contact;Socket;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSCSer;GoldFlashAll
SC16M1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG TIN CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP Female #16 Stamped and formed crimp contact tapeandreelcontacts
SC16ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 16-18AWG TIN G-Bantamate, MBG, SMS Qikmate, Series Size 16 13A Female Circular Connector Contact, Crimp,Wire size 18 to 16AWG connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;TinPlate Souriau 13A 母 压接端接 圆形 连接器 触芯, 18 → 16 AWG 线规格

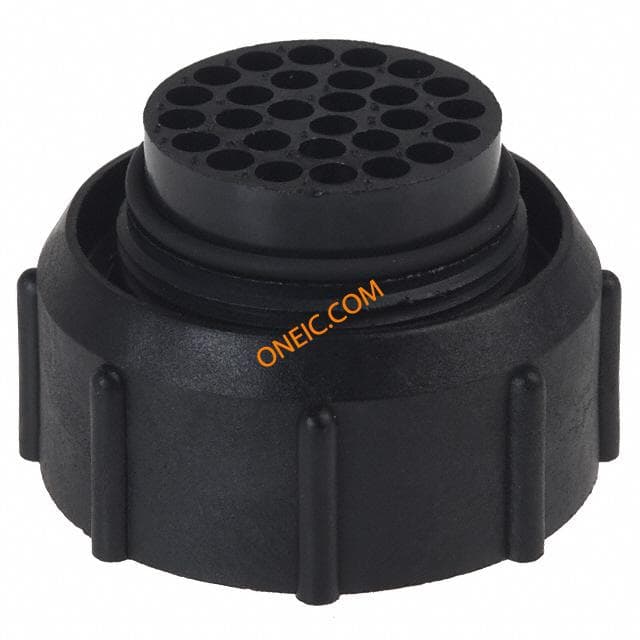

UTP62028P
