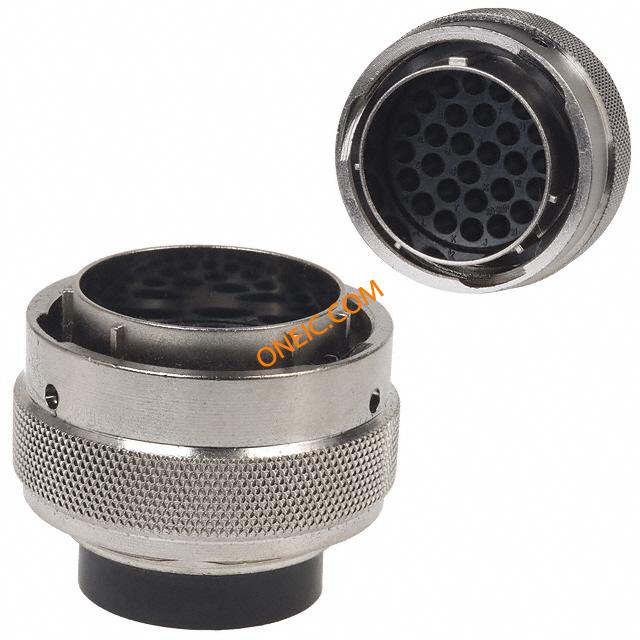

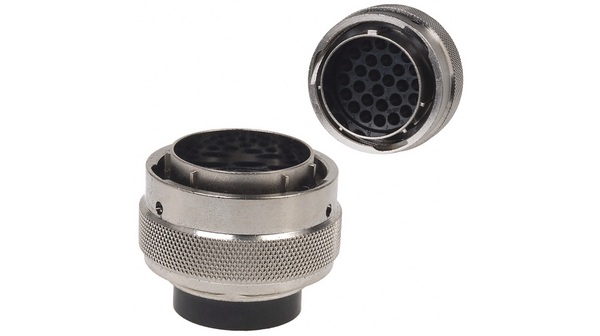

UT062028PH
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 28P Strt Pin Plug Size 20 Conn Metal Circular PIN 28 POS Crimp ST Cable Mount 28 Terminal 1 Port Bag CONN PLUG CABLE 28POS MALE PIN HOUSING, FREE, 28WAY CONN HSG PLUG 28POS CABLE PIN Cable plug UT0 28-pin Trim Trio UT0 28P Male 20, UT062028PH, Souriau Souriau UT0 系列 28路 电缆安装 直向 圆形连接器 插头 , 公触点, 卡口式接合 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1043 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 测试电压 | :2000V | 额定电压 | 250 V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.03757 | 直径 | 37.5 mm |
| 包装方式 | Bag | 出线方向 | No |
| 外壳尺寸 | 20 | 方向 | N (Normal) |
| 端接方式 | Crimp | 触点形式 | 28Signal |
| 触点尺寸 | 16 | 触头类型 | 28Signal |
| 安装类型 | Cable Mount | 外壳镀层 | Nickel |
| 连接器类型 | Plug for Male Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Cable | 外壳材料（壳体） | Zinc Alloy |
| 插入角度 | 20-28 | 本体材料 | :Zinc Alloy |
| 总长度 | 31.8 mm | 第一触头极性 | Without Pin Contacts |
| 触点数 | 28 | 位数 | 28 |
| 外壳尺寸-插件 | 20-28 | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 第一连接器安装类型 | :Cable | 外壳尺寸-插入件（转换至） | 20-28 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Circular |
| 连接器性别 | PL | 系列 | UT0 |
| 产品特性 | Shielded | 产品子类型 | Cable Plugs |
| 射频系列/标准 | UT0 | ||
环境参数
| 插拔次数 | :500 | NEMA 机架尺寸 | :IP67, IP68, IP69K |
| 防护等级 | IP 67 | 工作温度 | -40C to 105C |
