点击放大查看

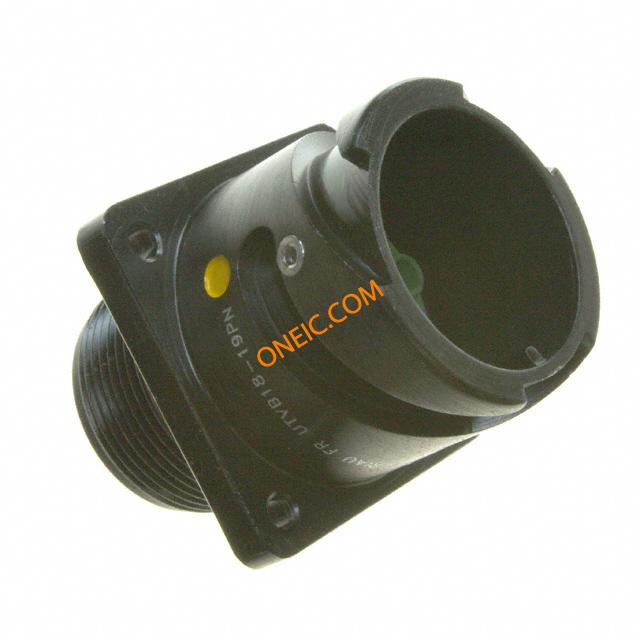

UTVB18-19PN
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 10P Reverse Bayonet Pin Receptacle Sz 18 CONN RCPT REAR MT 10POS #16 PIN |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1273 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 18 |
| 方向 | N (Normal) | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Panel Mount, Flange |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 插入角度 | 18-19 |
| 第一触头极性 | Socket (Female) | 触点数 | 19 |
| 位数 | 10 | 外壳尺寸-插件 | 18-19 |
| 外壳材料及表面处理 | Aluminum, Black Zinc Cobalt Plated | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | UTV |
| 产品子类型 | Receptacles | ||
环境参数
| 防护等级 | IP68/69 - Dust Tight, Waterproof | ||
文档与媒体
相关型号
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格

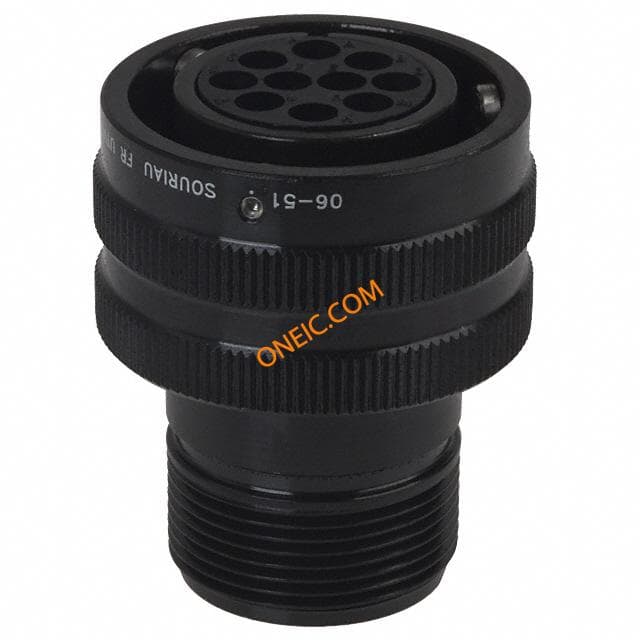

UTVD18-19SN
Souriau
Standard Circular Connector 19P Reverse Bayonet Socket Plug Size 18 CONN PLUG 10POS #16 SOCKET
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts
SM16M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 16 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 16-18AWG TIN CIRCULAR CONTACT, PIN, 16AWG, CRIMP Male #16 Stamped and formed crimp contact 2PCSTRIPHYFPIN#18-16
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP

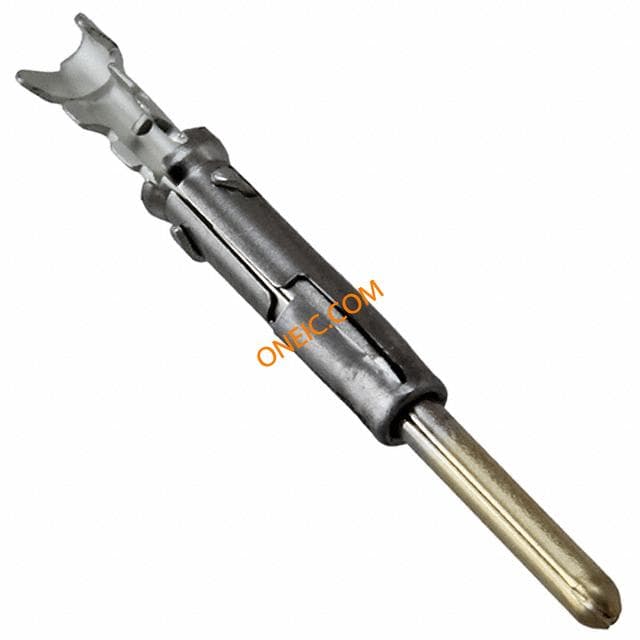

SM20ML1S31
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 20 AWG Contact Sz 16 CONTACT PIN CRIMP 20-22AWG GOLD Male #16 Stamped-formed crimp contact CONTACT, PIN, S&F, 20-22 AWG, PK 25 Contact;Pin;16Size1.6mm(0.0625);20AWG;TRIMTRIO Crimp pin Male 22...20 AWG, SM20ML1S31, Souriau Souriau UTS 系列 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格

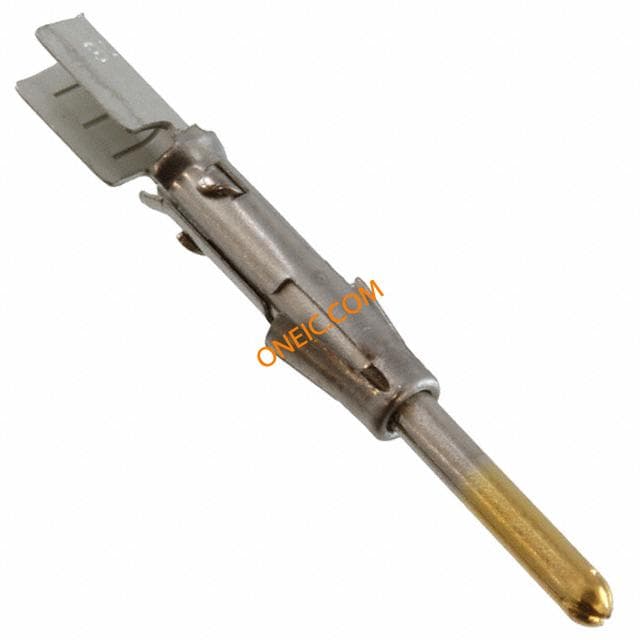

SM16ML1S31
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 16 AWG Contact Sz 16 CONTACT PIN CRIMP 16-18AWG GOLD CONTACT, PIN, S&F, 16-18 AWG, PK 25 Contact;Pin;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp pin Male 18...16 AWG, SM16ML1S31, Souriau
SM24M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG GOLD
SM20M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG GOLD 2PCSTRIPHYFPIN#22-20
SM20ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 20-22AWG TIN Tin plate crimp pin contact,22-20awg connectorcomponent,stampedandformedcrimpcontact,size16,for22-20awgwire Contact;Pin;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格
SM24ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimppincontact,size16,26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldFlashAll
SM14ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 14AWG TIN Souriau G-Bantamate, MBG, SMS Qikmate, UT-Bantam, UTG, UTGS, UTP SeriesSize 16 Tin Plated Crimp Pin Connector, 14AWG connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 14 AWG 线规格
SM20M-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG TIN tapeandreelcontacts

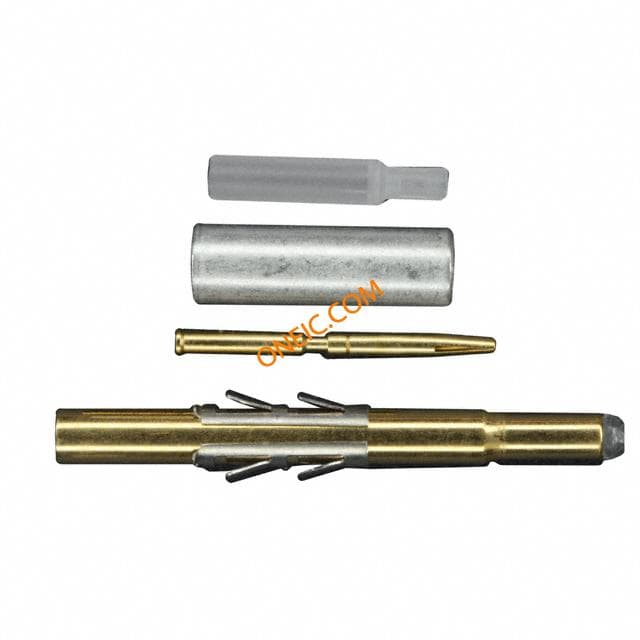

RMDXK-10D28
SOURIAU
Connector Accessories Male Coaxial Contact Kit Bag CONTACT PIN COAX #16 SUBMINI KIT Male #16 coax crimp contact connectorcomp,size16pincontactkit,forcoaxialandtwistedpaircable
SM16M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 16-18AWG GOLD
SM20ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for22-20awgwire Contact;Pin;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSMSer;GoldFlashAll

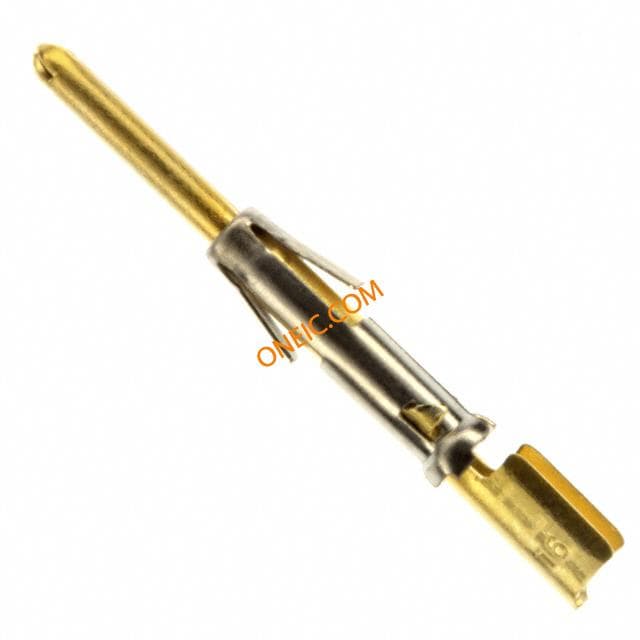

SM16ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 16-18AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for18-16awgwire connectorcomp,size16stamped&formedcrimppincont,for18-16awgwire,gold
SM14ML-1S6
Souriau Connection Technology
CONTACT PIN CRIMP 14AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;GoldFlashAll
