点击放大查看

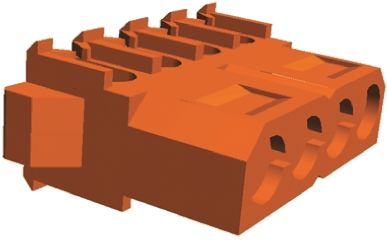

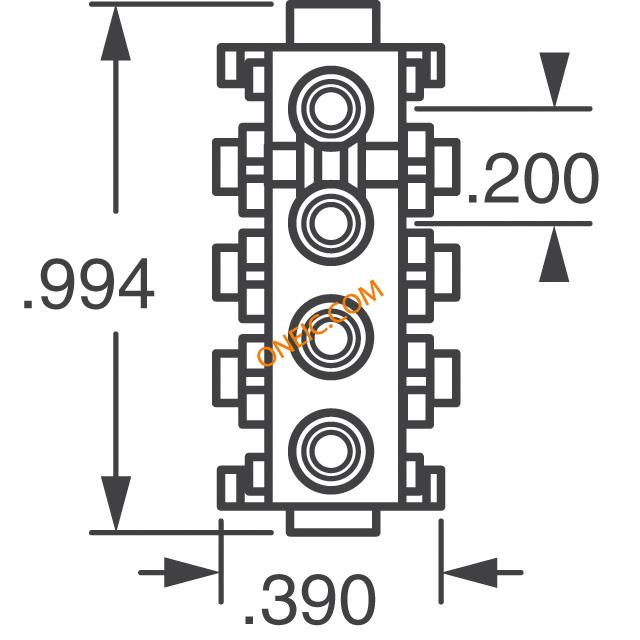

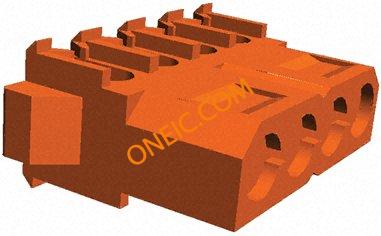

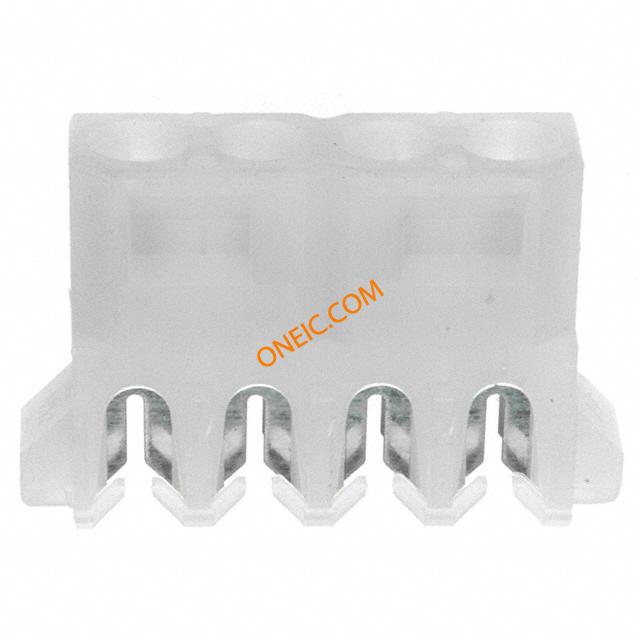

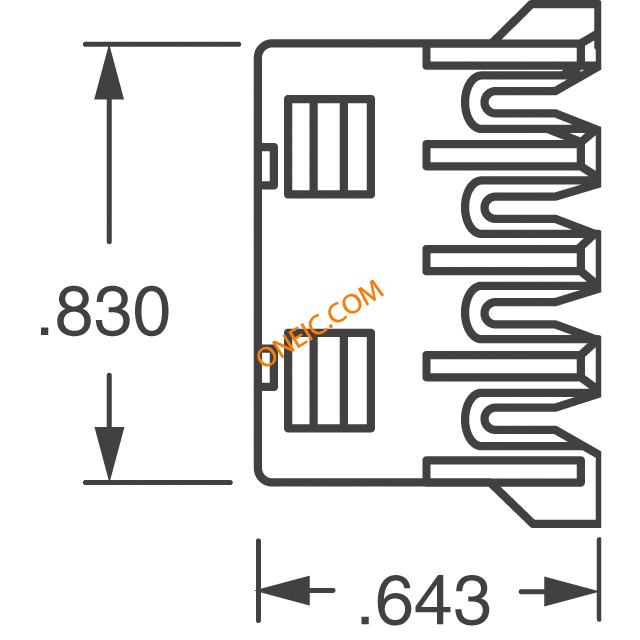

770156-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 18AWG Housing FH IDC 4 way Rec CMNL Power to the Board 4 CKT IDC ORANGE Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;250VAC;13A;4;0.084in.;0.095in.;Nylon;0.200in. TE Connectivity Commercial MATE-N-LOK 系列 4路 5.08mm节距 直角 公 IDC 连接器 , 电缆安装 4P CMNL IDC PLUG 18AWG ORG V2 |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR16455 |
| 标准编号 | CSA, UL | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 是 | ||
电气参数
| 额定电压 | 250 V ac | 供电电压 | 250 |
| 连接器阻抗 | 刺破式压接 (IDC) | 最大额定电流 | 13A |
机械参数
| 颜色 | Orange | 间距 | 5.08 mm |
| 宽度 | 6.225 | 长度 | 20.93 |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 导线类型 | Discrete | 壳体颜色 | 橙色 |
| 电缆类型 | Discrete | 导线线规 | 18 AWG |
| 方向 | 直角 | 端接方式 | IDT |
| 触点形式 | Male Pin | 触头类型 | Male Pin |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 接触镀层 | Tin | 安装样式 | Free Hanging |
| 引脚数 | 4 | 排数 | 1 |
| 封装形式 | Plug | 高度（英寸） | 20.93 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 包装数量 | 1000 | 端接排数 | IDC |
| 电缆端接方式 | IDC | 端接样式 | Wire |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 接触件端接 | Locking Lance | 绝缘直径 | 2.41 mm [ .095 in ] |
| 位数 | 4 | 兼容外壳尺寸（如TM-700等） | 公端, 插针（盖帽）护套 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 直插式 | 线规或范围 - AWG | 18 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | PL |
| 系列 | Commercial MATE-N-LOK, AMP | 产品特性 | Feed Through |
| 主要用途 | Feed Through | 产品子类型 | Connectors |
| 输出配置 | Free Hanging (In-Line) | 应用细节 | Power |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | +85°C |
相关型号
350211-1
te connectivity / amp
Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Bag .200" Centerline, 250 V, 13 A max. CONN HEADER 4 POS TIN PCB TE Connectivity 5.08mm 4 Way Straight Through Hole Male 4 Way Connector Power to the Board CONN PCM 4 POS TIN Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Bag Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HEADER, VERTICAL, SOLDER, 1 ROW, 4WAY Connector,Shell;CommercialMATE-N-LOK;Pin;4;13;250VAC;Nylon;Natural Socket; wire-board; Commercial MATE-N-LOK; male; PIN:4; THT; 250V Pin header, straight Pitch5.08 mm Poles 1 x 4 MATE-N-LOK Commercial, 350211-1, TE Connectivity TE Connectivity PCB 管座引脚 04P CMNL HDR ASSY PC UL94VO
1-480426-0
te connectivity / amp
Conn Housing RCP 4 POS 5.08mm Crimp ST Individual Conn Housing RCP 4 POS 5.08mm Crimp ST Box .200" Centerline, 250 V, 13 A max. CONN RECEPT/CAP 4 POS MATE-N-LOK Housing,rcpt,free hanging,5.08mm,4way Power to the Board PIN PANEL 4 CIRCUITS Conn Housing RCP 4 POS 5.08mm Crimp ST Box Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PIN HOUSING, 4WAY Connector,SoftShell;CommercialMATE-N-LOK;4;Nylon;0.084;Receptacle(Cap) Plug; wire-board; male; w/o terminals; 5.08mm; PIN:4; UL94V-2; 250V Pin housing 5.08 mm Poles 1 x 4 MATE-N-LOK Commercial, 1-480426-0, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 1 行 5.08mm 节距 4 路 直 母 PCB 壳体 04P CMNL CAP HSG F/H NATL
174552-1
te connectivity / amp
Conn Power HDR 4 POS 5.08mm Solder RA Thru-Hole 4 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 4POS R/A MATE-N-LOK Power to the Board 4P R/A HEADER Conn Power HDR 4 POS 5.08mm Solder RA Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 4P C-MNL PIN HDR R/A

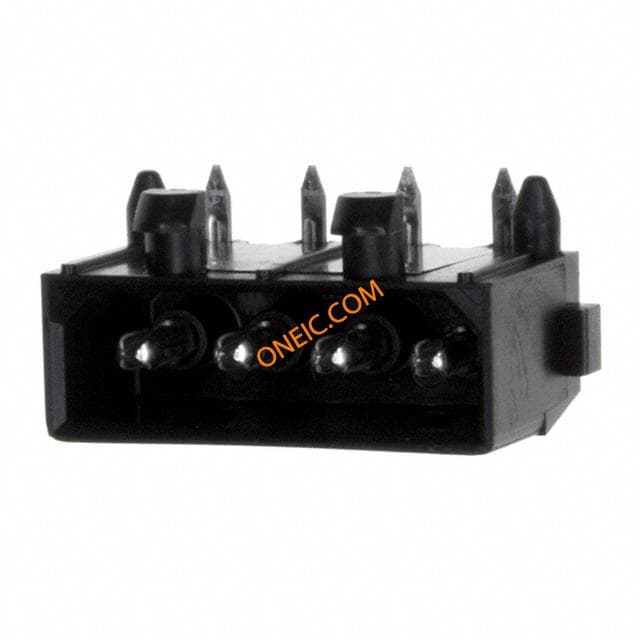

770846-1
te connectivity / amp
Conn Wire to Board HDR 4 POS 5.08mm Solder RA Thru-Hole .200" Centerline, 250 V, 13 A max. CONN HEADER PIN RT/ANG 4POS TIN Pin & Socket Connectors 04P CMNL HDR ASSY R/ Conn Wire to Board HDR 4 POS 5.08mm Solder RA Thru-Hole Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 04P CMNL HDR ASSY R/A BLK HT

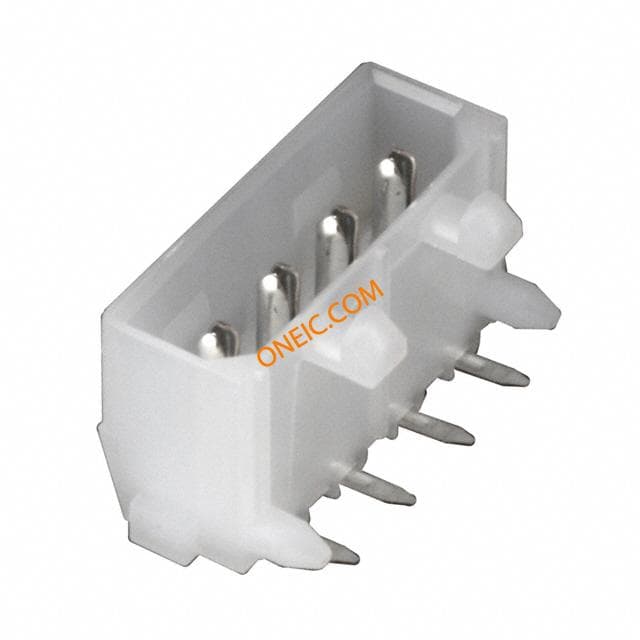

641737-1
te connectivity / amp
Conn Wire to Board HDR 4 POS 5.08mm Solder RA Thru-Hole .200" Centerline, 250 V, 13 A max. CONN HEADER PIN RT/ANG 4POS TIN TE Connectivity MATE-N-LOK Series 5.08mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 13A Power to the Board 4 PIN HDR R/A Conn Wire to Board HDR 4 POS 5.08mm Solder RA Thru-Hole Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HEADER, 90DEG, PIN, 4P HEADERASSEMBLY,SOFTSHELL,MATE-N-LOK,4POSITION,PIN,NYLON,NATURAL Socket; wire-board; male; 5.08mm; PIN:4; UL94V-2; Mat: polyamide TE Connectivity Commercial MATE-N-LOK 系列 5.08mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 13A , 通孔 04P CMNL HDR ASSY R/A PC NATL

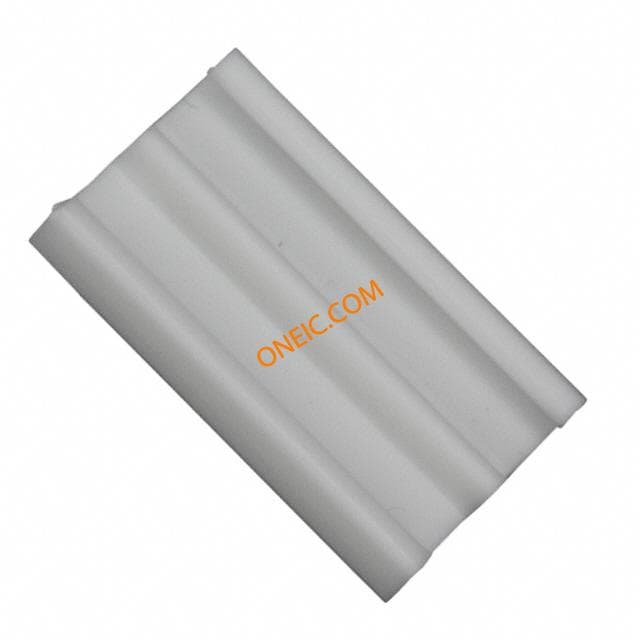

770233-1
te connectivity / amp
Connector Accessories 4 POS Dust Cover Polyester White Soft Shell - Accessories CONN DUST COVER 4POS WHITE Dust Cover IDC 4 way CMNL feed through Pin & Socket Connectors DUST COVER Connector Accessories 4 POS Dust Cover Polyester White Product Highlights:Dust CoverCommercial MATE-N-LOKPolyester Housing MaterialColor = WhiteNumber of Circuits = 4Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP DUSTCOVER,MATE-N-LOK,4POSITION,WHITE,FORFEEDTHROUGHWIRING TE Connectivity Commercial MATE-N-LOK 系列 4路 IDC 连接器 CMNL IDC COVER

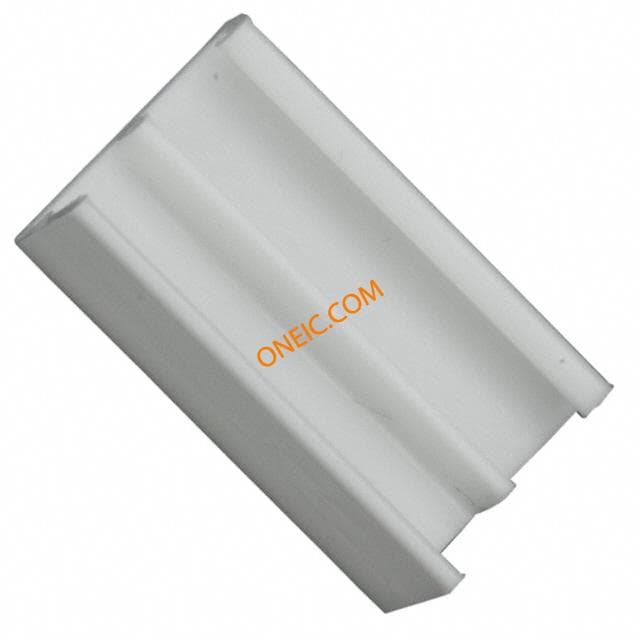

770232-1
te connectivity / amp
Connector Accessories 4 POS Dust Cover Polyester White Soft Shell - Accessories CONN DUST COVER 4POS WHITE Dust Cover IDC 4 way CMNL feed to wiring Pin & Socket Connectors DUST COVER Connector Accessories 4 POS Dust Cover Polyester White Product Highlights:Dust CoverCommercial MATE-N-LOKPolyester Housing MaterialColor = WhiteNumber of Circuits = 4Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP DUSTCOVER,MATE-N-LOK,4POSITION,WHITE,FORFEEDTOWIRING TE Connectivity MATE-N-LOK 白色 灰尘 外罩 770232 CMNL IDC COVER
350424-2
te connectivity / amp
Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Bag .200" Centerline, 250 V, 13 A max. CONN HEADER 4POS VERT .200 AU Pin & Socket Connectors 04P CMNL HDR ASSY PC 100 Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Bag Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = PinThrough Hole Contact Termination TypeSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP

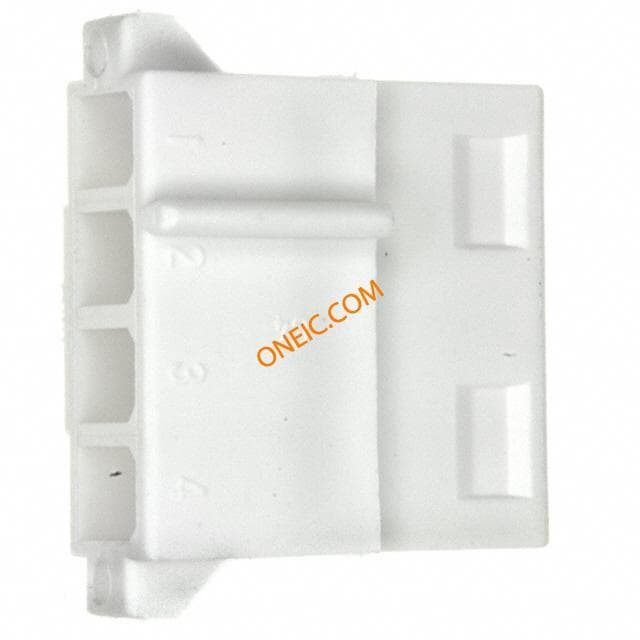

770827-1
te connectivity / amp
Conn Housing PL 4 POS 5.08mm Crimp ST Loose Piece .200" Centerline, 250 V, 13 A max. CONN PLUG 4POS MATE-N-LOK Mate-n-lok,housing,plug,4way skt contact Pin & Socket Connectors PLUG HOUSING 4P Conn Housing PL 4 POS 5.08mm Crimp ST Loose Piece Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONNECTOR,SOFTSHELL,MATE-N-LOK,4POSITION,PLUG,NYLON,WHITE TE Connectivity Commercial MATE-N-LOK 系列 1 行 5.08mm 节距 4 路 直 公 PCB 壳体 04P CMNL PLUG HSG 94-VO
1-641737-1
te connectivity / amp
Conn Wire to Board HDR 4 POS 5.08mm Solder RA Thru-Hole .200" Centerline, 250 V, 13 A max. CONN HEADER PIN RT/ANG 4POS TIN TE Connectivity MATE-N-LOK Series 5.08mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 13A Power to the Board 4 CKT R/A HEADER Conn Wire to Board HDR 4 POS 5.08mm Solder RA Thru-Hole Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP MATE-N-LOKHEADERASY,04PCMNLHDRASSYR/AV0 TE Connectivity Commercial MATE-N-LOK 系列 5.08mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 13A , 通孔 04P CMNL HDR ASSY R/A V0
350424-1
te connectivity / amp
Conn Mate N Lock RCP 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Bag .200" Centerline, 250 V, 13 A max. CONN HEADER 4POS VERT .200 TIN TE Connectivity Commercial MATE-N-LOK Series 5.08mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 13A Power to the Board CONN PCM 4 POS TIN Conn Mate N Lock RCP 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Bag Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONNECTOR, HEADER, MATE-N-LOK, 4WAY HEADER4WAYRECEPT TE Connectivity Commercial MATE-N-LOK 系列 5.08mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 13A , 通孔 04P CMNL HDR ASSY PC NATL

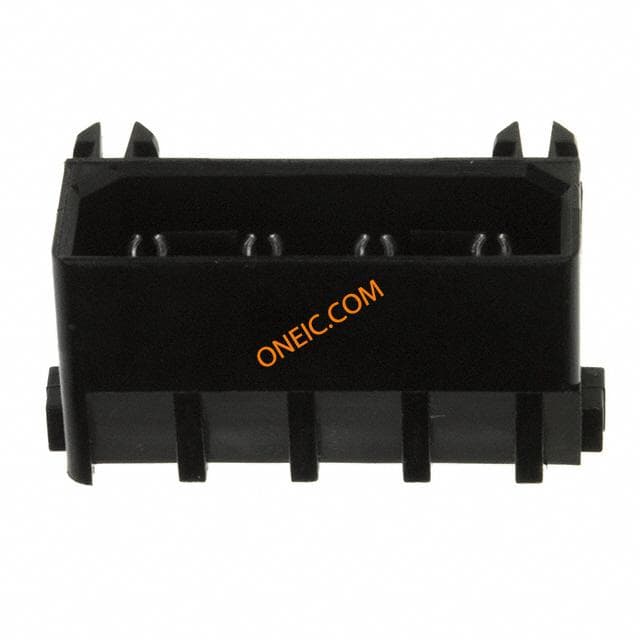

770829-1
