3-480426-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 5.08mm Crimp ST Loose Piece .200" Centerline, 250 V, 13 A max. CONN RECEPT/CAP 4 POS MATE-N-LOK Pin & Socket Connectors 04P CMNL CAP HSG (125 C) .200" Centerline, 250 V, 13 A max. Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 04P CMNL CAP HSG (125 C) |
| 分类 |
商业参数
| 标准包装规格 | 1 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR16455 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 供电电压 | 250 | 中心频率 | 带有 |
| 连接器类型 - 电压输入 | Commercial MATE-N-LOK | ||
机械参数
| 颜色 | Natural | 间距 | 5.08 mm |
| 密封型 | Not Sealed | 锁定类型 | Detent Lock |
| 包装方式 | Bulk | 导线线规 | 14-30 AWG |
| 触头类型 | Male Pin | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Without |
| 紧固类型 | Friction Lock | 排数 | 1 |
| 封装形式 | Receptacle (Cap) | 壳体材料 | Nylon |
| 包装数量 | One Piece Housing | 面板安装类型 | 不带 |
| 端接样式 | 插针 | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
| 兼容外壳尺寸（如TM-700等） | 插座（插头）外壳 | 中心触点材料 | 5.08 [.200] |
| 典型触点布局 | In-Line | 接触镀层厚度 | 2.13 [0.084] |
产品信息
| 备注 | Housing material has 125°C temperature rating. | 类型 | Housing |
| 连接器性别 | RCP | 产品子类型 | Housing |
| 电路数 | 4 | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
相关型号

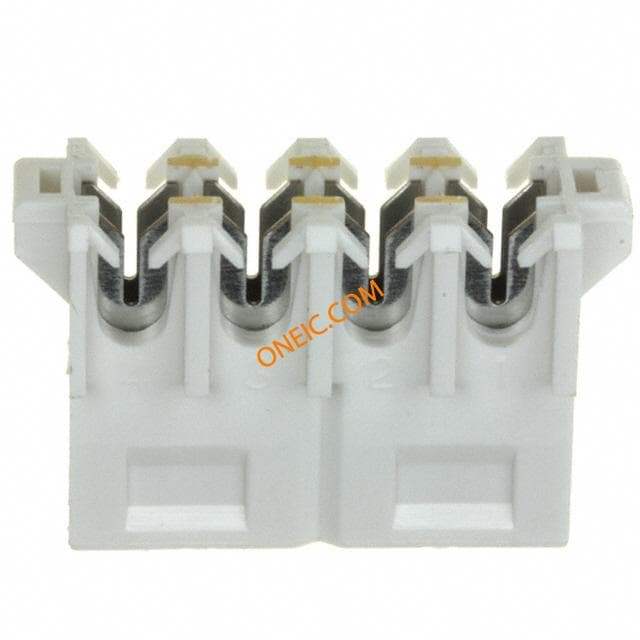

794036-2
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-0 20AWG Pin & Socket Connectors 4P PLUG ASSY IDC YELLOW Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 4P CMNL IDC PLUG 20AWG YEL V0
770156-4
te connectivity / amp

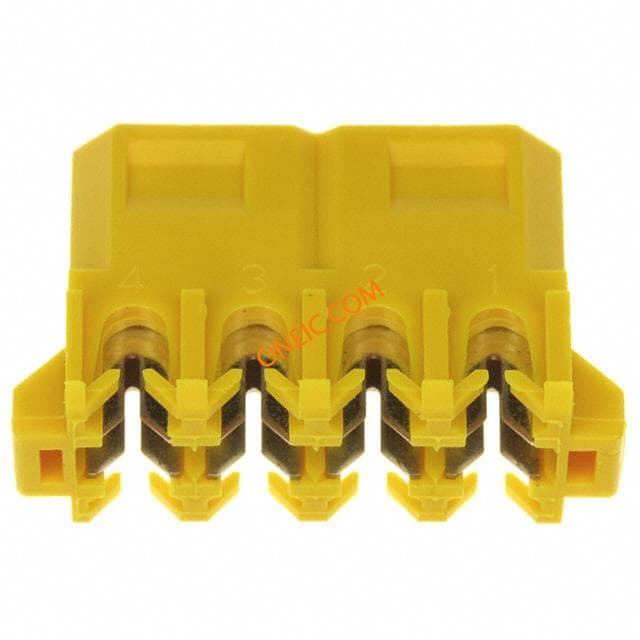

Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 20AWG Power to the Board 4 CKT IDC YELLOW Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 4P CMNL IDC PLUG 20AWG YEL V2
770156-2
te connectivity / amp

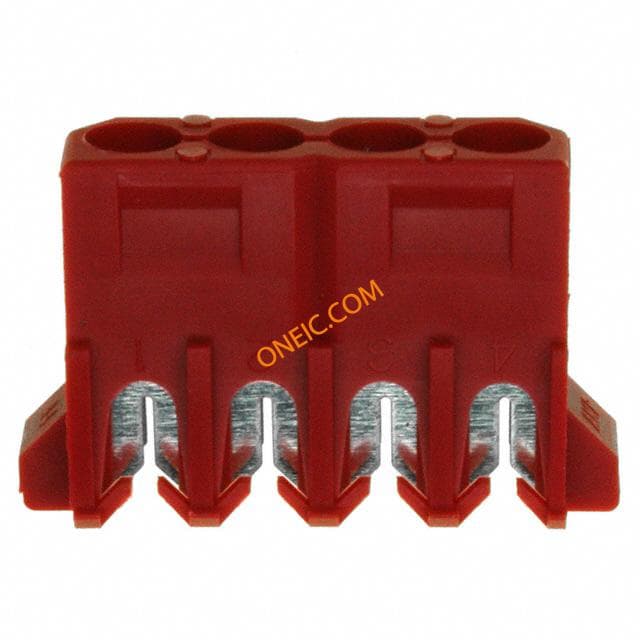

Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 22AWG Power to the Board 4 CKT IDC RED Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;250VAC;13A;4;0.084in.;0.095in.;Nylon;0.200in. 4P CMNL IDC PLUG 22AWG RED V2
794036-3
te connectivity / amp

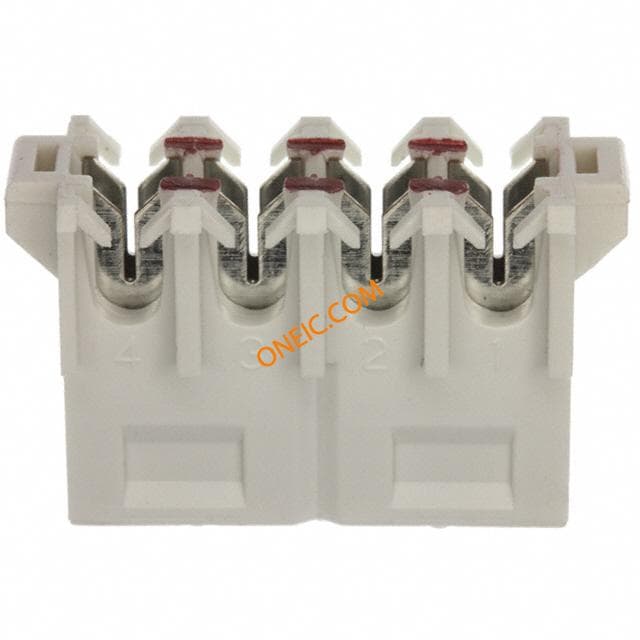

Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-0 22AWG Pin & Socket Connectors 4P PLUG CONN IDC 22AWG Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 04PCMNLIDCPLUGCONN22AWG 4P CMNL IDC PLUG 22AWG RED V0
350079-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 22-30AWG TIN CRIMP Power to the Board PIN CONTACT 30-22 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = PinWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Commercial Mate-N-Lok Pre-Tin 30-22 AWG Pin Contact MNL PIN 30-22 PTPBR
794287-1
te connectivity / amp

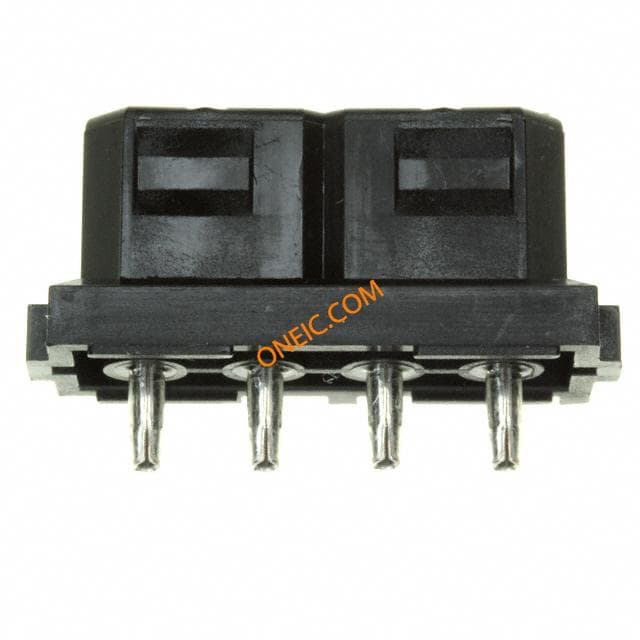

Conn Power SKT 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER SOCKET VERT 4POS TIN Power to the Board HDR SKT 1X04C VRT V2 HTMP Conn Power SKT 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP MATE-N-LOKHEADERASY,04PCMNLHDRASSYBLKHT MATE-N-LOK 4 Position Through-Hole Single Row Straight Pin Header 04P CMNL HDR ASSY BLK HT
3-480425-0
te connectivity / amp
Conn Housing PL 4 POS 5.08mm ST Loose Piece .200" Centerline, 250 V, 13 A max. CONN PLUG 4POS MATE-N-LOK NAT Pin & Socket Connectors 04P CMNL PLG HSG (125 C) 04P CMNL PLG HSG (125 C) 04P CMNL PLG HSG (125 C) Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP
794036-4
te connectivity / amp

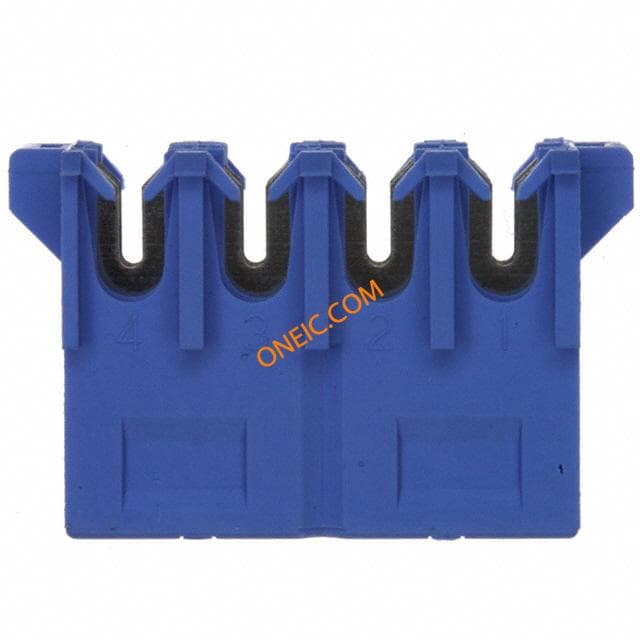

Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-0 16AWG Pin & Socket Connectors 04P CMNL IDC PLUG CO Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 4P CMNL IDC PLUG 16AWG BLU V0
770997-1
te connectivity / amp

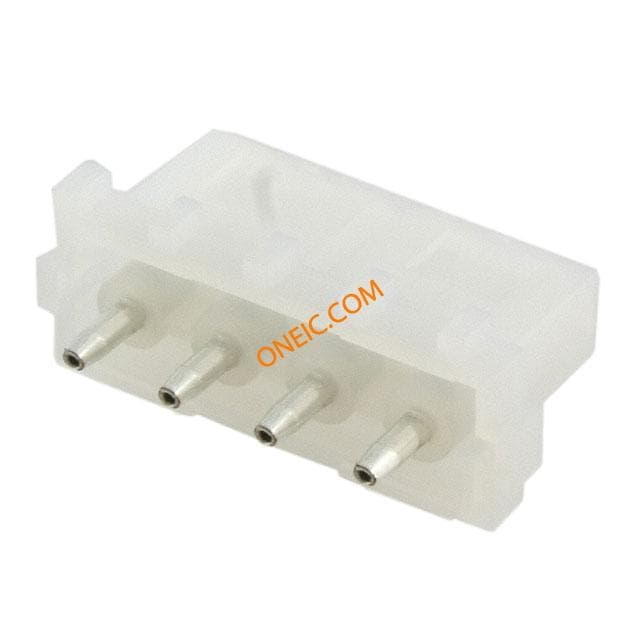

Conn Wire to Board SKT 4 POS 5.08mm Solder ST Thru-Hole .200" Centerline, 250 V, 13 A max. PC BOARD VERTICAL SOCKET HEADERS TE Connectivity MATE-N-LOK Series 5.08mm 4 Way 1 Row Straight PCB Socket Through Hole Wire to Board Pin & Socket Connectors SOCKET HDR ASSEM 4P Conn Wire to Board SKT 4 POS 5.08mm Solder ST Thru-Hole Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HEADER, SOCKET, VERTICAL, 4WAY MATE-N-LOKHEADERASY,04PCMNLSOKHDRASSY TE Connectivity Commercial MATE-N-LOK 系列 4路 直 5.08mm节距 通孔 印刷电路板插座, 线对板 04P CMNL SOK HDR ASSY
770156-3
te connectivity / amp

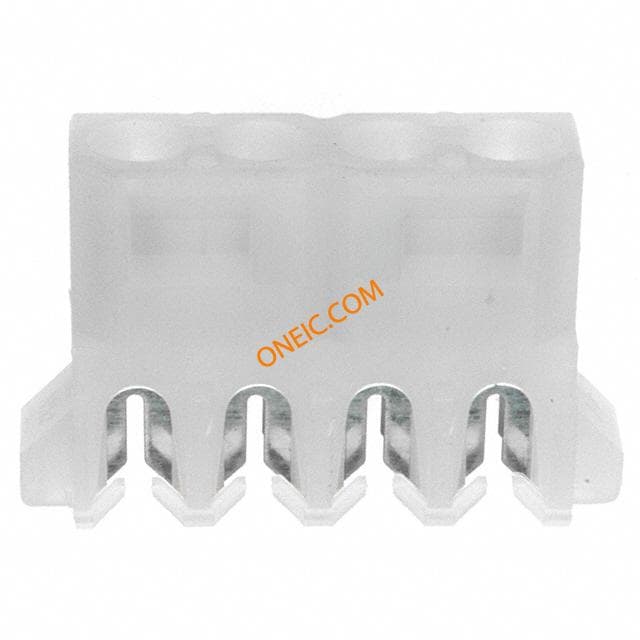

Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 18AWG Housing FH IDC 4 way Rec CMNL Power to the Board 4 CKT IDC ORANGE Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;250VAC;13A;4;0.084in.;0.095in.;Nylon;0.200in. TE Connectivity Commercial MATE-N-LOK 系列 4路 5.08mm节距 直角 公 IDC 连接器 , 电缆安装 4P CMNL IDC PLUG 18AWG ORG V2
61174-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 22-30AWG GOLD CRIMP Power to the Board 30-22 CONTACT PIN Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = PinWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP MNLPINL/P CMNL PIN L/P AUNIBR
794285-1
te connectivity / amp

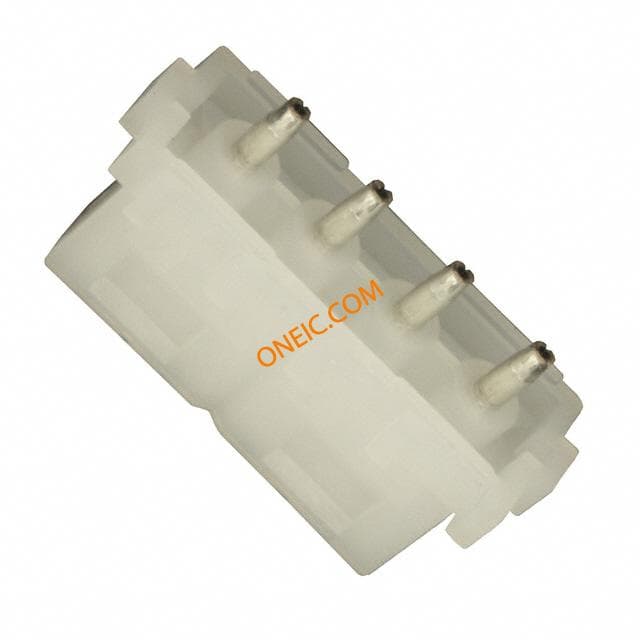

Conn Power SKT 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER VERT 4POS C-MNL TIN Pin & Socket Connectors HDR SKT 1X04C VRT V2 Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Conn Power SKT 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONNECTOR, HEADER, THT, 5.08MM, 4WAY PLUG & SOCKET CONN, HEADER, 4POS, 4.95MM 04P CMNL SOK HDR ASSY
61118-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Power to the Board CMNL PIN 20-14 BR PIN 20-14 AWG BR .200" Centerline, 250 V, 13 A max. CONN PIN 14-20AWG CRIMP TERM 61118-2 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PIN 20-14 BR
350079-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Pin & Socket Connectors MNL PIN 30-22 .0126 .200" Centerline, 250 V, 13 A max. CONN PIN 22-30AWG GOLD CRIMP 350079-5 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmPackaging Method = StripContact Type = PinWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PIN 30-22 AUBR
61118-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 14-20AWG GOLD CRIMP Power to the Board MNL PIN S/F 20-14 .0 5000 61118-5 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Gender = PinCrimp Contact Termination TypeApplies To WireCrimp Termination MethodSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PIN 20-14 AUNIBR
350558-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Power to the Board MNL PIN 20-14 .0126 .200" Centerline, 250 V, 13 A max. CONN PIN 16-18AWG TIN CRIMP Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP
770156-5
te connectivity / amp

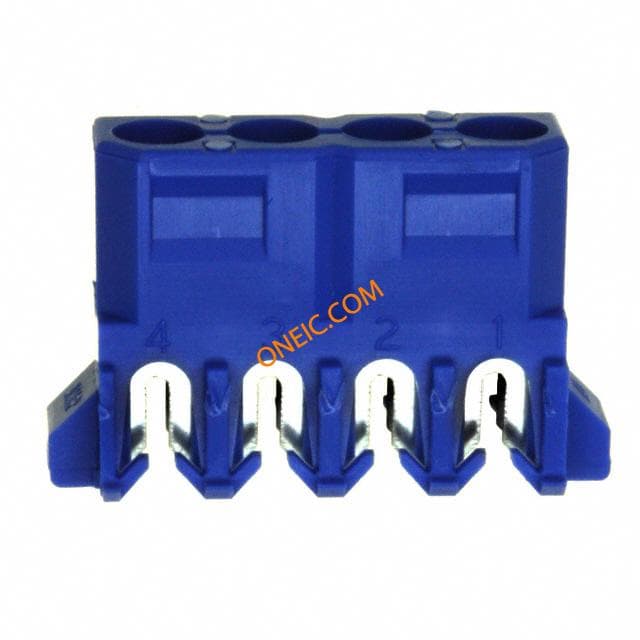

Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 16AWG Power to the Board IDC PLG 1X04C 16G V2 BLU Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 04P CMNL IDC PLUG 16 AWG BLU V
60618-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN PIN 18-24AWG TIN CRIMP Mate-N-Lok Com contact pin 24-18awg Power to the Board PIN 24-18 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 24-18 AWG, CRIMP CMNLPINPTPBRL/P Crimp pin 13 A Male 24...18 AWG, 60618-1, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 CMNL PIN PTPBR L/P
1-480425-0
te connectivity / amp
Conn Housing PL 4 POS 5.08mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 4 POS MATE-N-LOK Housing,plug,cm Mate-n-lok,4 Way,Natural Jones Plugs & Sockets SOCKET PANEL 4 CRKTS Conn Housing PL 4 POS 5.08mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;CommercialMATE-N-LOK;4;Nylon;0.084;Plug;13A TE Connectivity Commercial MATE-N-LOK 系列 1 行 5.08mm 节距 4 路 直 公 PCB 壳体 04P CMNL PLUG HSG P/M NATL
794036-1
te connectivity / amp

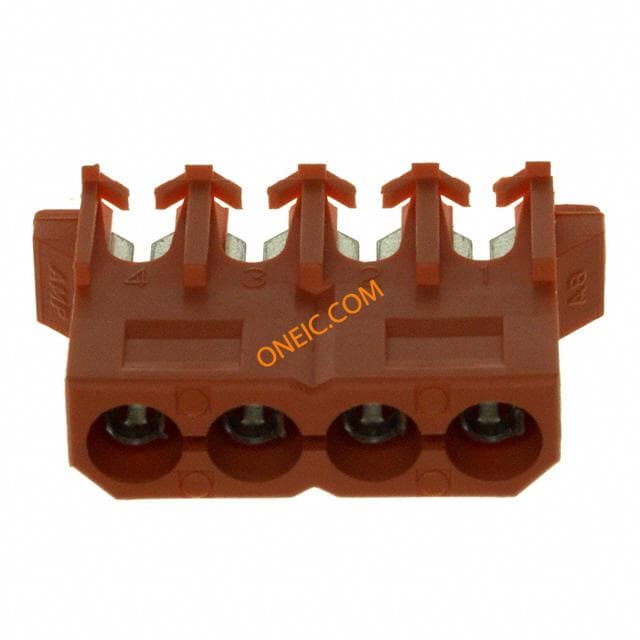

Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-0 18AWG Pin & Socket Connectors 04P CMNL PLUG ASSY I Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, PLUG, 4POS, 5.08MM 4P CMNL IDC PLUG 18AWG ORG V0
