点击放大查看

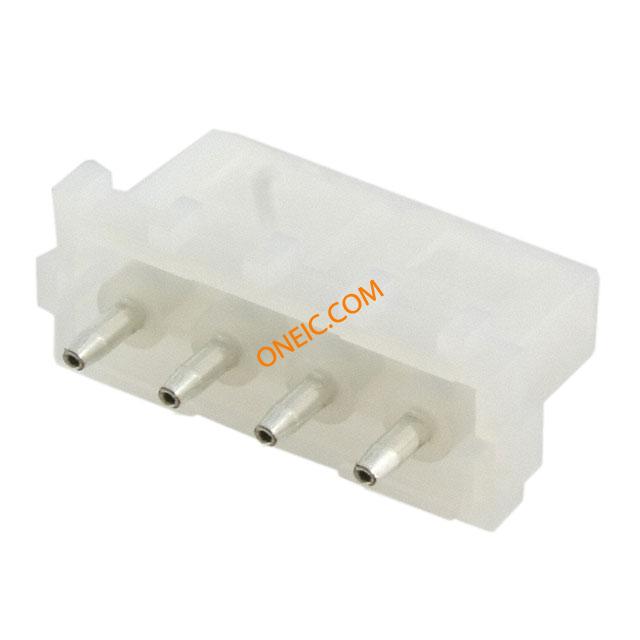

770997-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board SKT 4 POS 5.08mm Solder ST Thru-Hole .200" Centerline, 250 V, 13 A max. PC BOARD VERTICAL SOCKET HEADERS TE Connectivity MATE-N-LOK Series 5.08mm 4 Way 1 Row Straight PCB Socket Through Hole Wire to Board Pin & Socket Connectors SOCKET HDR ASSEM 4P Conn Wire to Board SKT 4 POS 5.08mm Solder ST Thru-Hole Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HEADER, SOCKET, VERTICAL, 4WAY MATE-N-LOKHEADERASY,04PCMNLSOKHDRASSY TE Connectivity Commercial MATE-N-LOK 系列 4路 直 5.08mm节距 通孔 印刷电路板插座, 线对板 04P CMNL SOK HDR ASSY |
| 分类 |
商业参数
| 其他名称 | 7709971 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-2 | ||
电气参数
| 量程（°/s） | :TE - Commercial MATE-N-LOK Series | 额定电压 | 250 V ac |
| 最大额定电流 | 13A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Natural | 深度 | 9.65 mm |
| 间距 | 5.08 mm | 宽度 | :25.40mm |
| 高度 | 11.56 mm | 长度 | 25.4 mm |
| 重量 | 0.001 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Female Socket | 外壳颜色 | Natural |
| 安装类型 | Through Hole | 连接器类型 | Header |
| 接触镀层 | Pre-Tin | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 总长度 | 25.4 mm |
| 主要材料 | InterconnectSystem | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Clear |
| 触点数 | 4 | 接触件端接 | :Through Hole Vertical |
| 位数 | 4 | 安装孔直径 | :1.78mm |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | SKT |
| 系列 | MATE-N-LOK | CAD图纸 | 3D CAD Model |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Headers |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 85C | ||
