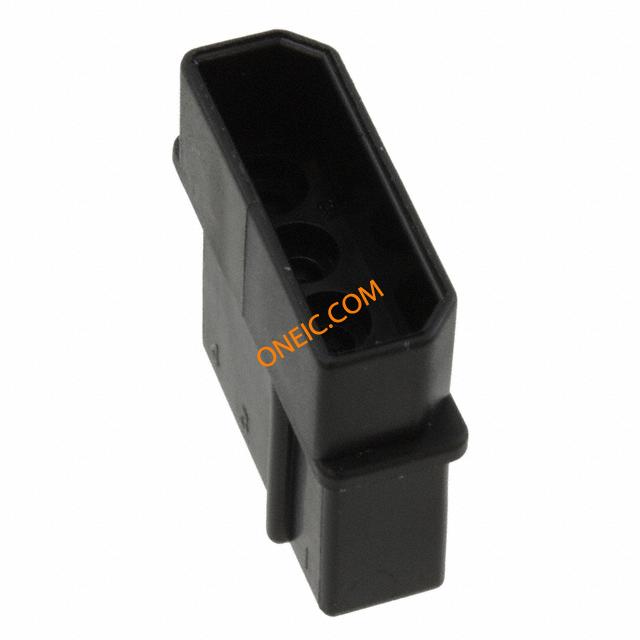

1-480426-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 5.08mm Crimp ST Loose Piece .200" Centerline, 250 V, 13 A max. CONN CAP 4POS MATE-N-LOK BLACK Pin & Socket Connectors 04P CMNL CAP HSG F/H BLK Conn Housing RCP 4 POS 5.08mm Crimp ST Loose Piece Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 04P CMNL CAP HSG F/H BLK |
| 分类 |
商业参数
| 其他名称 | 14804269 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR16455 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 中心频率 | 带有 | 最大额定电流 | 13 A |
| 连接器类型 - 电压输入 | Commercial MATE-N-LOK | ||
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 密封型 | Not Sealed | 锁定类型 | Detent Lock |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 导线线规 | 14-30 AWG | 触头类型 | Male Pin |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Without | 紧固类型 | Friction Lock |
| 排数 | 1 | 封装形式 | Receptacle (Cap) |
| 壳体材料 | Nylon | 包装数量 | One Piece Housing |
| 面板安装类型 | 不带 | 端接样式 | 插针 |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | 兼容外壳尺寸（如TM-700等） | 插座（插头）外壳 |
| 中心触点材料 | 5.08 [.200] | 典型触点布局 | In-Line |
| 接触镀层厚度 | 2.13 [0.084] | ||
产品信息
| 备注 | Housing accepts double wire applications where individual insulation diameters | 类型 | Housing |
| 连接器性别 | RCP | 产品子类型 | Housing |
| 电路数 | 4 | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
794287-1
te connectivity / amp
Conn Power SKT 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER SOCKET VERT 4POS TIN Power to the Board HDR SKT 1X04C VRT V2 HTMP Conn Power SKT 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP MATE-N-LOKHEADERASY,04PCMNLHDRASSYBLKHT MATE-N-LOK 4 Position Through-Hole Single Row Straight Pin Header 04P CMNL HDR ASSY BLK HT
3-480425-0
te connectivity / amp
Conn Housing PL 4 POS 5.08mm ST Loose Piece .200" Centerline, 250 V, 13 A max. CONN PLUG 4POS MATE-N-LOK NAT Pin & Socket Connectors 04P CMNL PLG HSG (125 C) 04P CMNL PLG HSG (125 C) 04P CMNL PLG HSG (125 C) Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP
770997-1
te connectivity / amp
Conn Wire to Board SKT 4 POS 5.08mm Solder ST Thru-Hole .200" Centerline, 250 V, 13 A max. PC BOARD VERTICAL SOCKET HEADERS TE Connectivity MATE-N-LOK Series 5.08mm 4 Way 1 Row Straight PCB Socket Through Hole Wire to Board Pin & Socket Connectors SOCKET HDR ASSEM 4P Conn Wire to Board SKT 4 POS 5.08mm Solder ST Thru-Hole Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HEADER, SOCKET, VERTICAL, 4WAY MATE-N-LOKHEADERASY,04PCMNLSOKHDRASSY TE Connectivity Commercial MATE-N-LOK 系列 4路 直 5.08mm节距 通孔 印刷电路板插座, 线对板 04P CMNL SOK HDR ASSY
350073-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN SOCKET M-N-L PCB Power to the Board PCB CONTACT SOCKET .200" Centerline, 250 V, 13 A max. Product Highlights:ContactContact Diameter = 2.13 mmMount = Printed Circuit BoardPackaging Method = Loose PieceContact Type = Printed Circuit Board SocketSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PCB SOK PTPPHBZ
794285-1
te connectivity / amp
Conn Power SKT 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER VERT 4POS C-MNL TIN Pin & Socket Connectors HDR SKT 1X04C VRT V2 Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Conn Power SKT 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONNECTOR, HEADER, THT, 5.08MM, 4WAY PLUG & SOCKET CONN, HEADER, 4POS, 4.95MM 04P CMNL SOK HDR ASSY
61527-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONTACT GROUNDING 24-18AWG M-N-L Pin & Socket Connectors GRND PIN 22-18 PTPBR 61527-2 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = Pin - GroundWire Barrel Contact Termination TypeTerminate To WireCrimp Termination MethodSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL GROUDING PIN 22-18 PTPBR
350074-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN PCB COMM MATE-N-LOK Power to the Board PCB PIN PTPHBR Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = PinWire Barrel Contact Termination TypeMount = Printed Circuit BoardTerminate To Printed Circuit BoardSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PCB PIN PTPHBR

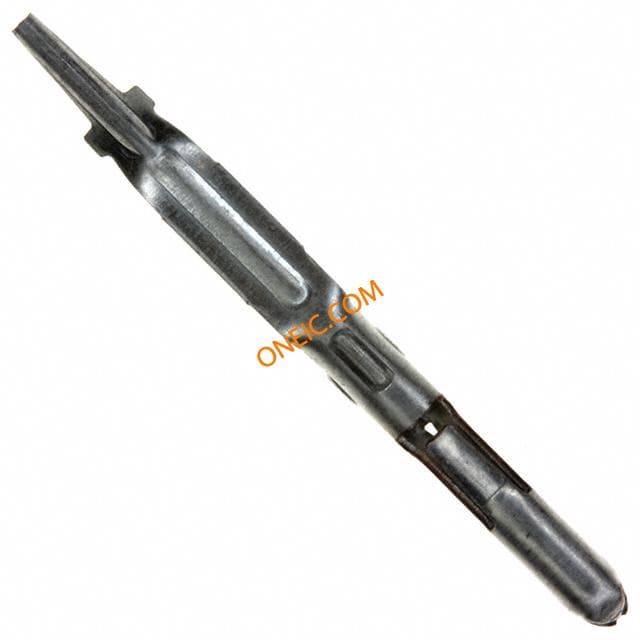

61518-1
