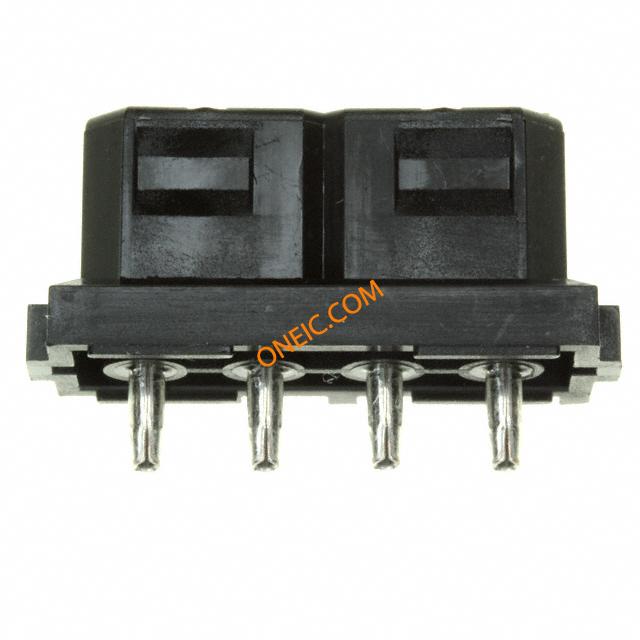

794287-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER SOCKET VERT 4POS TIN Power to the Board HDR SKT 1X04C VRT V2 HTMP Conn Power SKT 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP MATE-N-LOKHEADERASY,04PCMNLHDRASSYBLKHT MATE-N-LOK 4 Position Through-Hole Single Row Straight Pin Header 04P CMNL HDR ASSY BLK HT |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 13 A |
| 最小供电电压 | 250VDC/250VAC | ||
机械参数
| 颜色 | Black | 深度 | 9.65 mm |
| 间距 | 5.08 mm | 高度 | 11.56 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Female Socket | 安装类型 | Through Hole |
| 连接器类型 | Header | 接触镀层 | Tin |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 总长度 | 25.4 mm | 主要材料 | InterconnectSystem |
| 端接样式 | Solder Pin | 第一触头极性 | Socket (Female) |
| 触点数 | 4 | 位数 | 4 |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Headers |
| 端口数 | 1 Port | 加载位置数 | All |
