点击放大查看

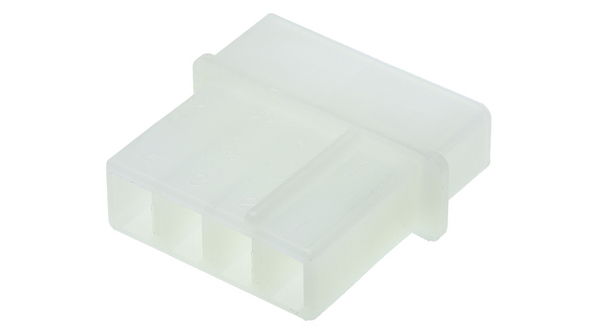

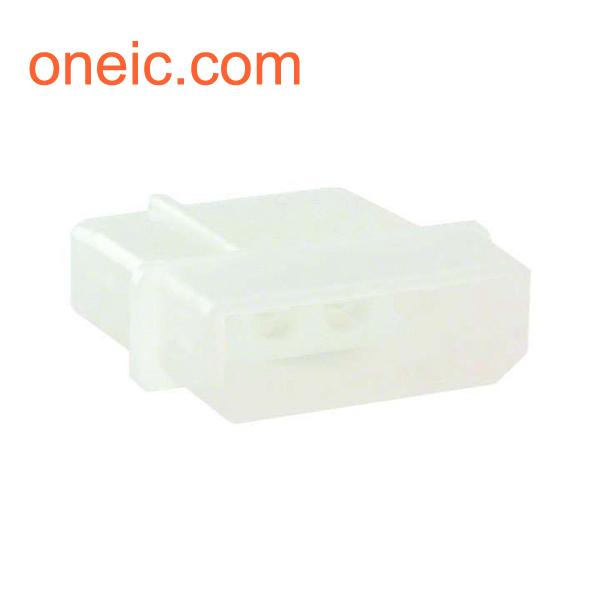

1-480426-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 5.08mm Crimp ST Individual Conn Housing RCP 4 POS 5.08mm Crimp ST Box .200" Centerline, 250 V, 13 A max. CONN RECEPT/CAP 4 POS MATE-N-LOK Housing,rcpt,free hanging,5.08mm,4way Power to the Board PIN PANEL 4 CIRCUITS Conn Housing RCP 4 POS 5.08mm Crimp ST Box Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PIN HOUSING, 4WAY Connector,SoftShell;CommercialMATE-N-LOK;4;Nylon;0.084;Receptacle(Cap) Plug; wire-board; male; w/o terminals; 5.08mm; PIN:4; UL94V-2; 250V Pin housing 5.08 mm Poles 1 x 4 MATE-N-LOK Commercial, 1-480426-0, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 1 行 5.08mm 节距 4 路 直 母 PCB 壳体 04P CMNL CAP HSG F/H NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :CSA, UL | RoHS/ELV合规状态 | Always was RoHS compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 工作电压 | :250V | 接触电阻 | :4mohm |
| 介电强度 | :1500V | 最大额定电流 | 13 A |
| 绝缘电阻 | :500Mohm | 最小输入电压 | 250VAC |
| 最小供电电压 | 250VAC | 连接器类型 - 电压输入 | Commercial MATE-N-LOK |
机械参数
| 颜色 | Natural | 深度 | 23.62mm |
| 间距 | 5.08 mm | 宽度 | 8.38mm |
| 高度 | 8.38 mm | 长度 | 25.65mm |
| 重量 | 0.01 | 材料（通用） | :Nylon |
| 锁定类型 | Detent Lock | 包装方式 | Box |
| 导线线规 | 14-30 | 重量（g） | 10.95 |
| 触头类型 | Male Pin | 柱间距 | 5.08 [.200] |
| 基体材料 | polyamide | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Friction Lock | 安装样式 | Panel Mount, Free Hanging |
| 排数 | 1 | 封装形式 | Receptacle (Cap) |
| 锁定特性 | :2 Lever | 本体材料 | :Nylon (Polyamide) |
| 壳体材料 | Nylon | 总长度 | 25.65 mm |
| 包装数量 | One Piece Housing | 连接器 - 电缆 | plug |
| 端接样式 | Wire | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Clear | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
| 典型触点布局 | In-Line | 接触镀层厚度 | 2.13 [0.084] |
| 线规或范围 - AWG | 30-14 | 第一连接器安装特征 | 1x4 |
产品信息
| SPG | 350 | 名称 | 塑壳 |
| 备注 | Housing accepts double wire applications where individual insulation diameters | 类型 | Housing |
| 单位 | PCS | 连接器性别 | RCP |
| 系列 | MATE-N-LOK | 数量 | 4500.0 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Housing |
| 适配器系列 | Commercial MATE-N-LOK | 单元数量 | 1 |
| 电路数 | 4 | 制造国家 | 中国 |
| 设备部件号 | 1-480426-0.pdf | 最小起订量 | 1 |
| 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector | ||
环境参数
| 插拔次数 | :50 | 工作温度 | :105°C |
