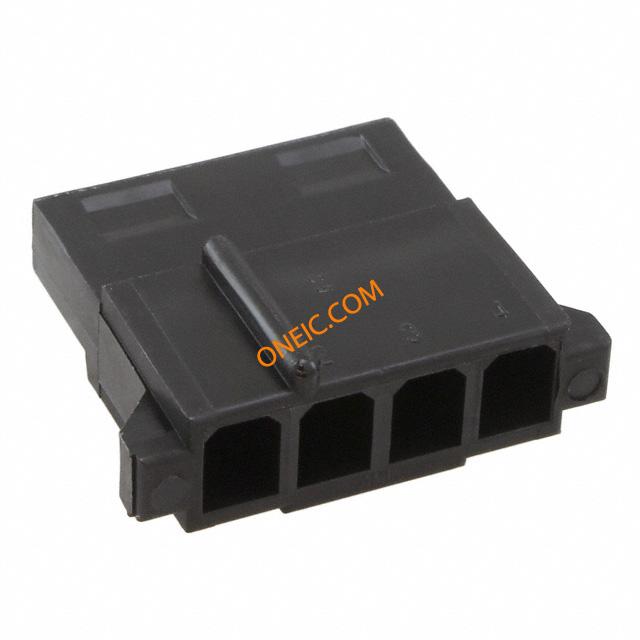

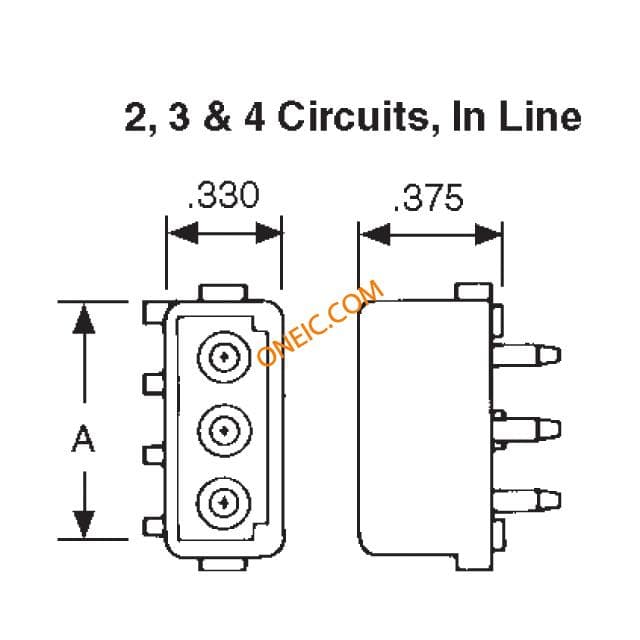

1-480424-9

点击放大查看

1-480424-9

制造商
TE Connectivity Ltd.
描述Conn Housing PL 4 POS 5.08mm Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN PLUG 4 POS BLK MATE-N-LOK Pin & Socket Connectors 04P PLUG HSG F/H BLK Conn Housing PL 4 POS 5.08mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingHousing Type = PlugAccepts Contact Type = PinIn-Line Contact Layout5.08 mm CenterlineSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 04P CMNL PLUG HSG F/H BLK
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级已认证, 获得认可
零件状态E28476无铅定义Not relevant for lead free process
CSA档案号LR16455标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliantUL阻燃等级UL 94V-2
认证机构标志否材料阻燃等级UL 94V-2

电气参数

额定电压250 V供电电压250
中心频率带有最大额定电流13 A
最小供电电压250VAC连接器类型 - 电压输入Commercial MATE-N-LOK

机械参数

颜色Black深度21.6 mm
间距5.08 mm密封型Not Sealed
锁定类型Detent Lock包装方式Bulk
壳体颜色黑色导线线规14-30 AWG
触头类型Female Socket外壳颜色Black
安装类型Straight连接器类型Plug
接触镀层Without紧固类型Detent Lock
安装样式PCB排数1
封装形式Plug壳体材料Nylon
总长度26.39 mm包装数量One Piece Housing
面板安装类型不带端接样式Crimp
第一触头极性Pin (Male)触点数4
接触件端接Crimp位数4
兼容外壳尺寸（如TM-700等）插针（盖帽）护套中心触点材料5.08 [.200]
典型触点布局In-Line接触镀层厚度2.13 [0.084]
线规或范围 - AWG30-14第一连接器安装类型Panel

产品信息

备注Housing accepts double wire applications where individual insulation diameters类型Housing
连接器性别PL系列Mate-N-Lok
产品子类型Housing电路数4

环境参数

测试温度标准件 - 非灼热丝工作温度-55C to 105C
