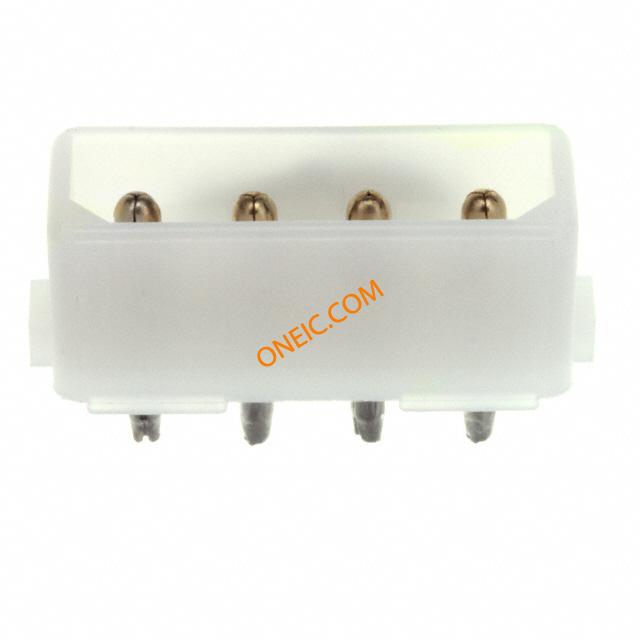

1586525-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 1 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER PIN VERT 4POS GOLD Power to the Board 4P HDR ASSY PC NATL LF Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 1 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 12 A |
机械参数
| 颜色 | Natural | 间距 | 5.08 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 位数 | 4 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 产品子类型 | Connectors | 加载位置数 | All |
环境参数
| 工作温度 | - 55 C to + 105 C | ||
