350211-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Bag Pin & Socket Connectors REORD 571-3502111 .200" Centerline, 250 V, 13 A max. CONN HEADER 4 POS GOLD PCB Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Bag Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 04P CMNL HDR ASSY PC UL94VO |
| 分类 |
商业参数
| 其他名称 | A1213 | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | No | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR16455 |
| 标准编号 | CSA, UL | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | ||
电气参数
| 供电电压 | 250 | 最大额定电流 | 12 |
机械参数
| 颜色 | Natural | 间距 | 5.08 mm |
| 宽度 | 9.53 | 长度 | 25.4 |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 引脚数 | 4 | 排数 | 1 |
| 封装形式 | Receptacle | 高度（英寸） | 8.26 |
| 触头材料 | Phosphor Bronze | 壳体材料 | 尼龙 |
| 包装数量 | 100 | 面板安装类型 | 通孔 - 焊接 |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 触点数 | 4 | 位数 | 4 |
| 兼容外壳尺寸（如TM-700等） | 插座（插头）外壳 | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 典型触点布局 | 直插式 |
| 接触长度 - 配合 | 0.180" (4.59mm) | 端子柱长度 | 3.05 mm [ .12 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Circuit Mate N Lok | 产品子类型 | Headers |
| 应用细节 | Power | 加载位置数 | All |
环境参数
| 机械寿命 | Obsolete | 测试温度 | 标准件 - 非灼热丝 |
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | 封装热阻 | 1.57 mm [ .062 in ] |
文档与媒体
相关型号

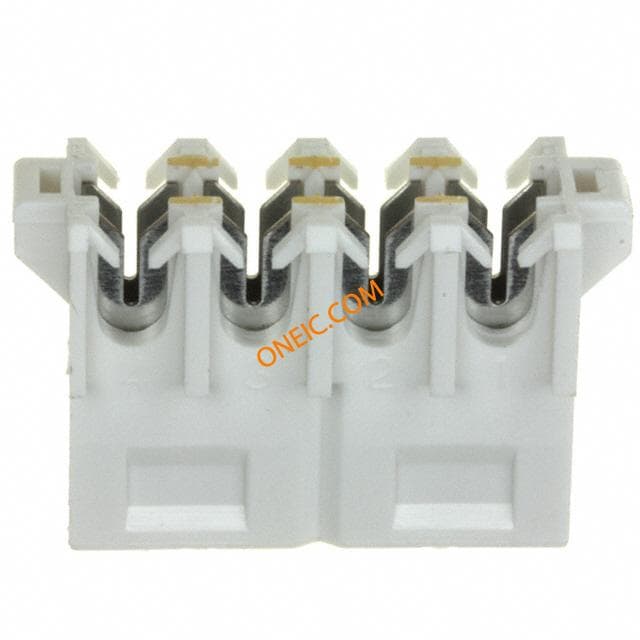

794036-2
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-0 20AWG Pin & Socket Connectors 4P PLUG ASSY IDC YELLOW Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 4P CMNL IDC PLUG 20AWG YEL V0
770156-4
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 20AWG Power to the Board 4 CKT IDC YELLOW Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 4P CMNL IDC PLUG 20AWG YEL V2
1-480424-9
te connectivity / amp
Conn Housing PL 4 POS 5.08mm Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN PLUG 4 POS BLK MATE-N-LOK Pin & Socket Connectors 04P PLUG HSG F/H BLK Conn Housing PL 4 POS 5.08mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingHousing Type = PlugAccepts Contact Type = PinIn-Line Contact Layout5.08 mm CenterlineSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 04P CMNL PLUG HSG F/H BLK
770156-2
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 22AWG Power to the Board 4 CKT IDC RED Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;250VAC;13A;4;0.084in.;0.095in.;Nylon;0.200in. 4P CMNL IDC PLUG 22AWG RED V2

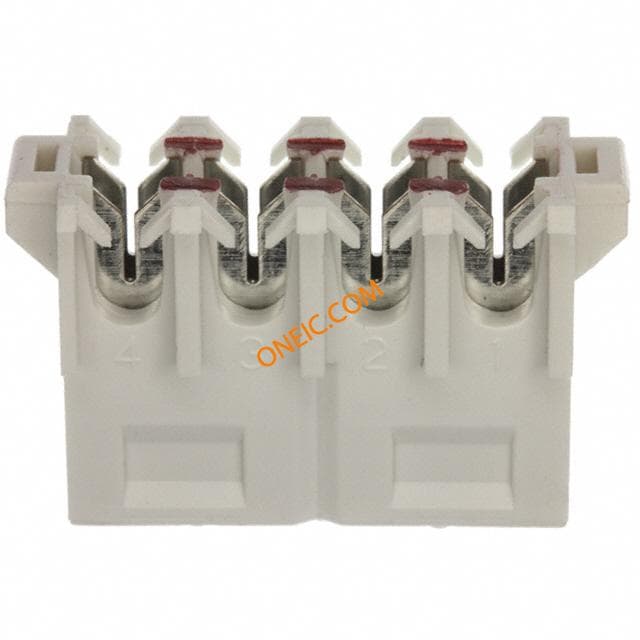

794036-3
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-0 22AWG Pin & Socket Connectors 4P PLUG CONN IDC 22AWG Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 04PCMNLIDCPLUGCONN22AWG 4P CMNL IDC PLUG 22AWG RED V0
1-480424-0
te connectivity / amp
Conn Wire to Board PL 4 POS 5.08mm Solder ST Thru-Hole Loose Piece .200" Centerline, 250 V, 13 A max. CONN PLUG 4 POS MATE-N-LOK Power to the Board 4 CKT HOUSING Conn Wire to Board PL 4 POS 5.08mm Solder ST Thru-Hole Loose Piece Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG & SOCKET HOUSING, NYLON Connector;CommercialMATE-N-LOK;Plug;4;Nylon;13A(Max.);250VAC;0.2in. Plug; wire-board; female; w/o terminals; 5.08mm; PIN:4; UL94V-2 Socket housing 5.08 mm Poles 1 x 4 MATE-N-LOK Commercial, 1-480424-0, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 1 行 4 路 直 公 面板安装 PCB 壳体 04P CMNL PLUG HSG F/H NATL

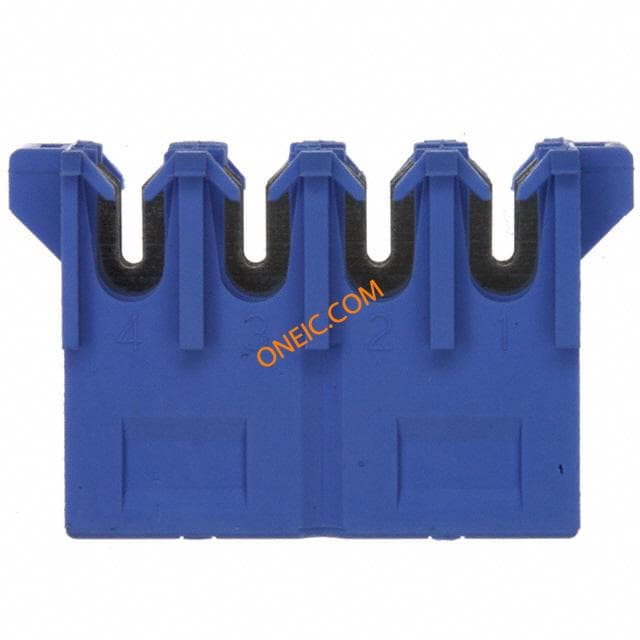

794036-4
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-0 16AWG Pin & Socket Connectors 04P CMNL IDC PLUG CO Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 4P CMNL IDC PLUG 16AWG BLU V0
770156-3
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 18AWG Housing FH IDC 4 way Rec CMNL Power to the Board 4 CKT IDC ORANGE Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;250VAC;13A;4;0.084in.;0.095in.;Nylon;0.200in. TE Connectivity Commercial MATE-N-LOK 系列 4路 5.08mm节距 直角 公 IDC 连接器 , 电缆安装 4P CMNL IDC PLUG 18AWG ORG V2
770156-5
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 16AWG Power to the Board IDC PLG 1X04C 16G V2 BLU Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 04P CMNL IDC PLUG 16 AWG BLU V

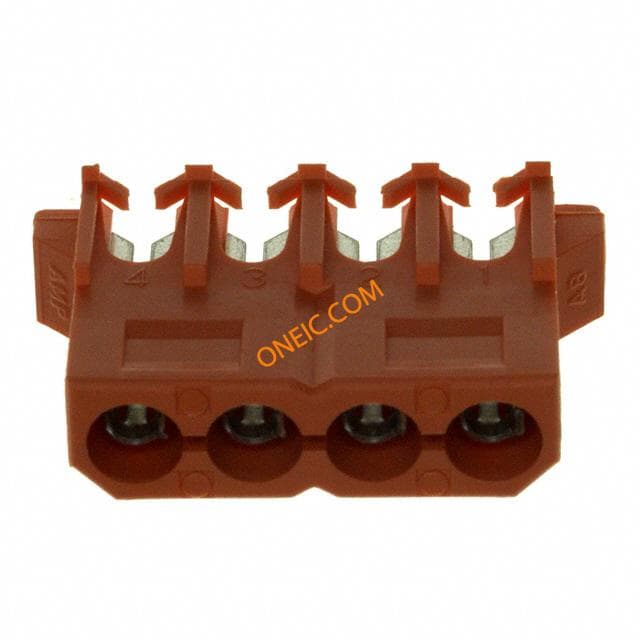

794036-1
