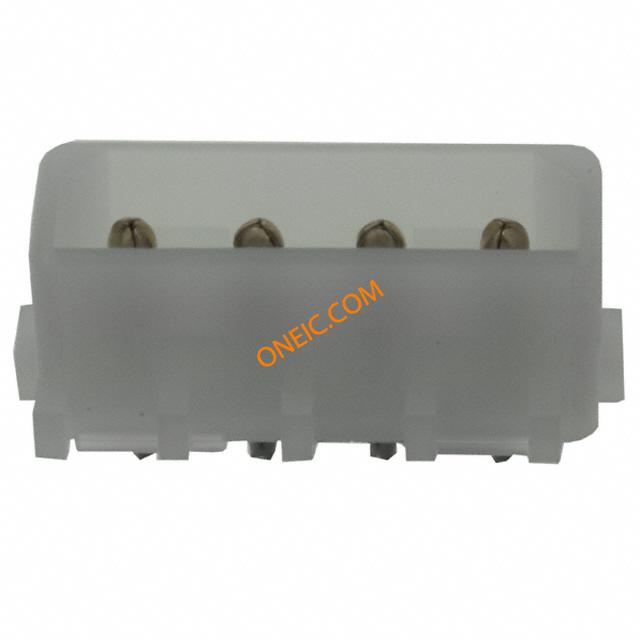

1586515-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 1 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER PIN VERT 4POS GOLD MATE-N-LOK 4 Male Straight Heavy Duty Power Connector, Through Hole 13A,250V ac/dc Pin & Socket Connectors 4P HDR ASSY PC UL94 LF Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 1 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 4POS, 5.08MM HDR,RCP,4WAYPINCONTACT TE Connectivity Commercial MATE-N-LOK 系列 5.08mm节距 4路 直 PCB 针座, 焊接端接, 13A , 通孔 04P CMNL HDR ASSY PC UL94 LF |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 250 V ac/dc | 最大额定电流 | 13A |
| 最小供电电压 | 250VDC/250VAC | ||
机械参数
| 颜色 | Natural | 深度 | 9.65 mm |
| 间距 | 5.08 mm | 高度 | 10.29 mm |
| 重量 | 0.00159 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 总长度 | 25.4 mm |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 接触件端接 | :Through Hole Vertical | 位数 | 4 |
| 接触长度 - 配合 | 0.180" (4.59mm) | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | MATE-N-LOK | 产品子类型 | Header Assemblies |
| 端口数 | 1 Port | 加载位置数 | All |
