174552-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 4 POS 5.08mm Solder RA Thru-Hole 4 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 4POS R/A MATE-N-LOK Power to the Board 4P R/A HEADER Conn Power HDR 4 POS 5.08mm Solder RA Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 4P C-MNL PIN HDR R/A |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189A |
| 标准编号 | CSA, UL | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 13 A | ||
机械参数
| 间距 | 5.08 mm | 宽度 | 11.5 |
| 长度 | 25.3 | 密封型 | Not Sealed |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 安装样式 | Through Hole | 引脚数 | 4 |
| 排数 | 1 | 封装形式 | Receptacle |
| 高度（英寸） | 10.75 | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 安装特性 | 固定式传送带 |
| 包装数量 | 200 | 面板安装类型 | 通孔 - 焊接 |
| 端接样式 | Solder Pin | 第一触头极性 | Pin (Male) |
| 触点数 | 4 | 位数 | 4 |
| 兼容外壳尺寸（如TM-700等） | 插座（插头）外壳 | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 典型触点布局 | 直插式 |
| 端子柱长度 | 4.1 mm [ .161 in ] | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 产品子类型 | Headers | 应用细节 | Power |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -20 – 105 °C [ -4 – 221 °F ] |
| 封装热阻 | .063 mm [ 1.6 in ] | ||
文档与媒体
相关型号

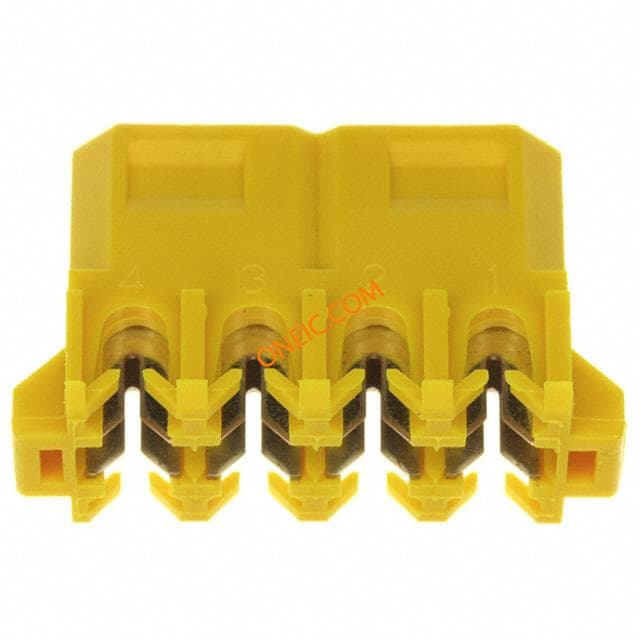

770156-4
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 20AWG Power to the Board 4 CKT IDC YELLOW Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 4P CMNL IDC PLUG 20AWG YEL V2
1-480424-9
te connectivity / amp
Conn Housing PL 4 POS 5.08mm Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN PLUG 4 POS BLK MATE-N-LOK Pin & Socket Connectors 04P PLUG HSG F/H BLK Conn Housing PL 4 POS 5.08mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingHousing Type = PlugAccepts Contact Type = PinIn-Line Contact Layout5.08 mm CenterlineSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 04P CMNL PLUG HSG F/H BLK

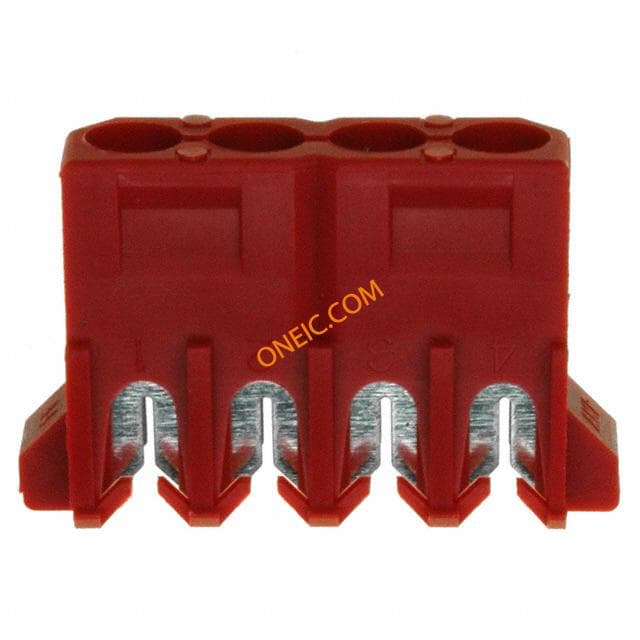

770156-2
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 22AWG Power to the Board 4 CKT IDC RED Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;250VAC;13A;4;0.084in.;0.095in.;Nylon;0.200in. 4P CMNL IDC PLUG 22AWG RED V2
1-480424-0
te connectivity / amp
Conn Wire to Board PL 4 POS 5.08mm Solder ST Thru-Hole Loose Piece .200" Centerline, 250 V, 13 A max. CONN PLUG 4 POS MATE-N-LOK Power to the Board 4 CKT HOUSING Conn Wire to Board PL 4 POS 5.08mm Solder ST Thru-Hole Loose Piece Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG & SOCKET HOUSING, NYLON Connector;CommercialMATE-N-LOK;Plug;4;Nylon;13A(Max.);250VAC;0.2in. Plug; wire-board; female; w/o terminals; 5.08mm; PIN:4; UL94V-2 Socket housing 5.08 mm Poles 1 x 4 MATE-N-LOK Commercial, 1-480424-0, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 1 行 4 路 直 公 面板安装 PCB 壳体 04P CMNL PLUG HSG F/H NATL

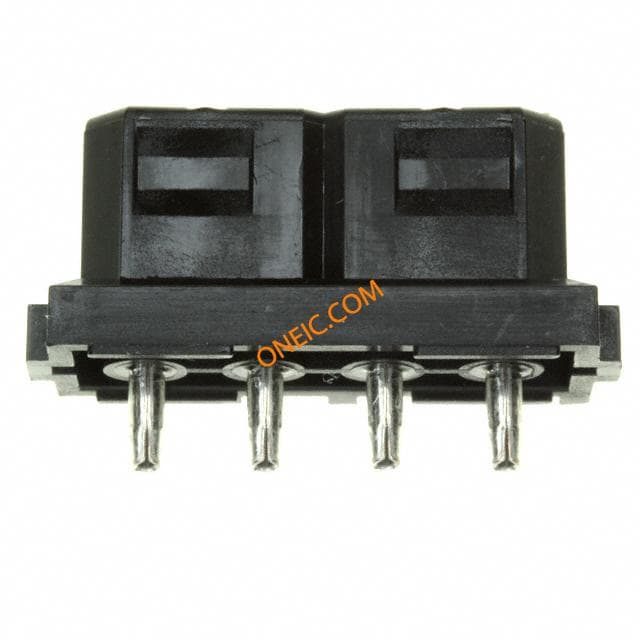

794287-1
te connectivity / amp
Conn Power SKT 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER SOCKET VERT 4POS TIN Power to the Board HDR SKT 1X04C VRT V2 HTMP Conn Power SKT 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP MATE-N-LOKHEADERASY,04PCMNLHDRASSYBLKHT MATE-N-LOK 4 Position Through-Hole Single Row Straight Pin Header 04P CMNL HDR ASSY BLK HT

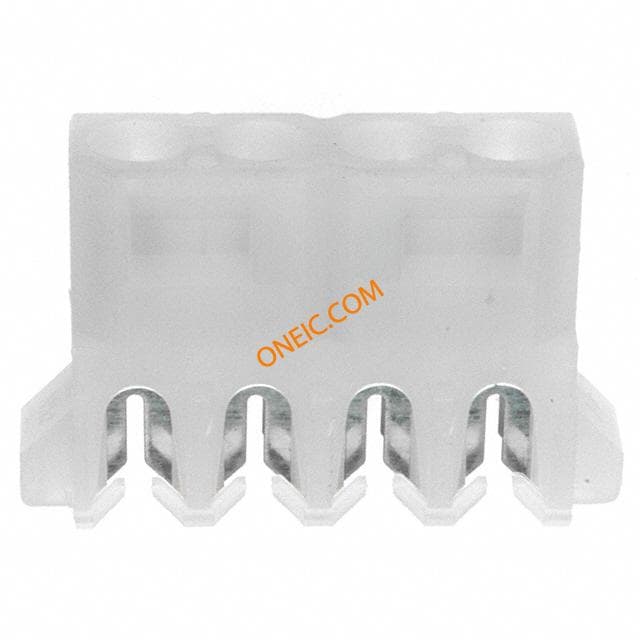

770156-3
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 18AWG Housing FH IDC 4 way Rec CMNL Power to the Board 4 CKT IDC ORANGE Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;250VAC;13A;4;0.084in.;0.095in.;Nylon;0.200in. TE Connectivity Commercial MATE-N-LOK 系列 4路 5.08mm节距 直角 公 IDC 连接器 , 电缆安装 4P CMNL IDC PLUG 18AWG ORG V2

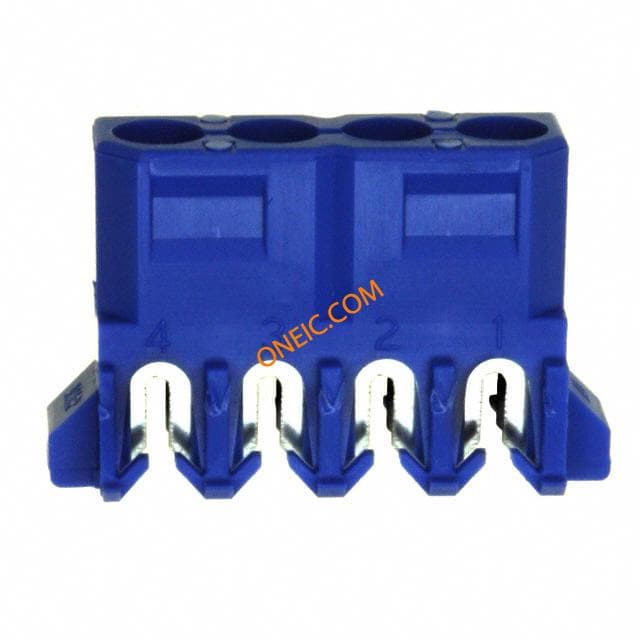

770156-5
