点击放大查看

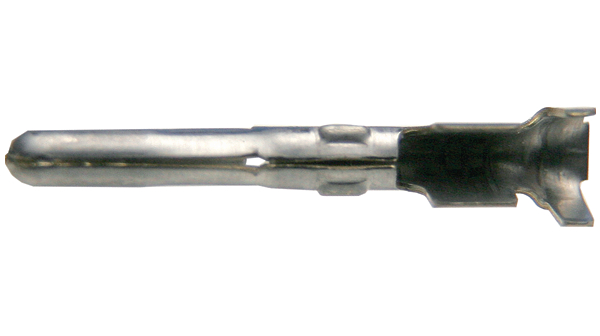

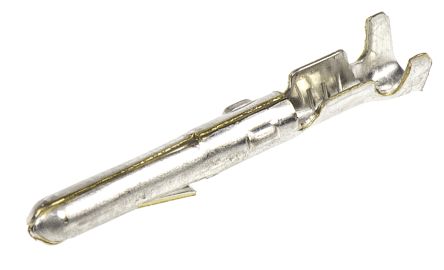

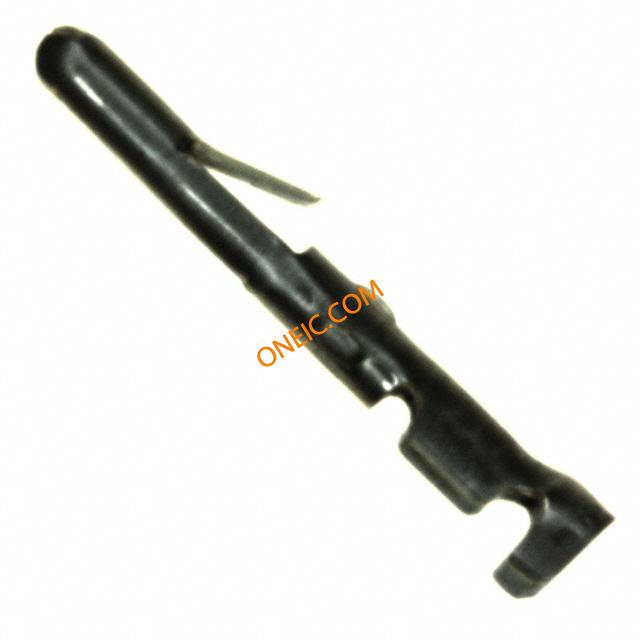

60618-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN PIN 18-24AWG TIN CRIMP Mate-N-Lok Com contact pin 24-18awg Power to the Board PIN 24-18 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = PinWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 24-18 AWG, CRIMP CMNLPINPTPBRL/P Crimp pin 13 A Male 24...18 AWG, 60618-1, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 CMNL PIN PTPBR L/P |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 13 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 3.68 mm | 间距 | Not Required mm |
| 高度 | 3.81 mm | 重量 | 0.001 |
| 包装方式 | Bulk | 导线线规 | 18-24 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 20.44 mm | 端接样式 | Quick Connect |
| 第一触头极性 | Pin (Male) | 触点数 | Not Required |
| 接触件端接 | Crimp | 线规或范围 - AWG | 24-18 |
| 线规或范围 - mm² | :0.8mm² | ||
产品信息
| 类型 | Contact | 连接器性别 | PIN |
| 系列 | :Mate-N-Lok | 产品子类型 | Contacts |
| 适用产品/相关产品 | :Commercial MATE-N-LOK Connectors | ||
