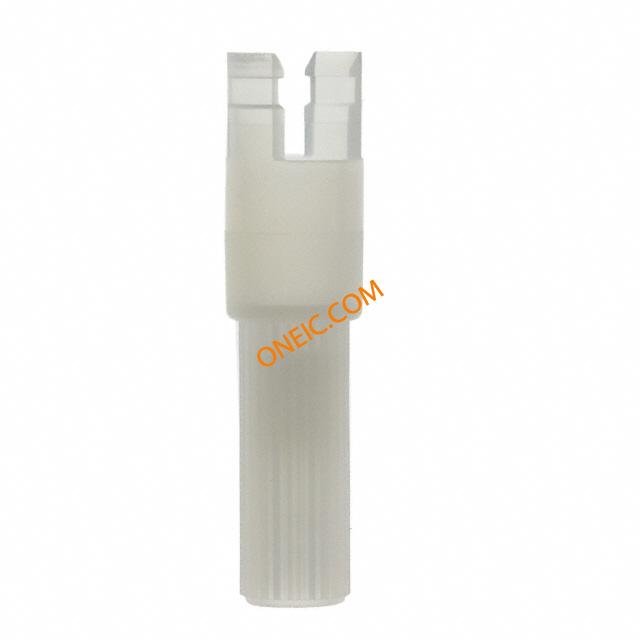

1-480350-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 1 POS ST Individual .200" Centerline, 250 V, 13 A max. CONN RECEPT/CAP 1 POS MATE-N-LOK Female Compact Power Connector Socket,13A 250V ac/dc Power to the Board 1 CKT PIN HOUSING Conn Housing RCP 1 POS ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 1In-Line Contact LayoutHousing Type = Receptacle (Cap)Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PIN HOUSING, 1WAY Connector;CommercialMATE-N-LOK;Receptacle(Cap);1;Nylon;13A(Max.);AMP TE Connectivity Commercial MATE-N-LOK 系列 1 行 1 路 直 母 电缆安装 PCB 壳体 01P CMNL CAP HSG F/H NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 V ac/dc | 供电电压 | 250 |
| 最大额定电流 | 13A | 最小供电电压 | 250VDC/250VAC |
| 连接器类型 - 电压输入 | Commercial MATE-N-LOK | ||
机械参数
| 颜色 | Natural | 深度 | 7.62 mm |
| 间距 | Not Required mm | 长度 | :30.5mm |
| 重量 | 0.049 | 材料（通用） | :Nylon |
| 锁定类型 | Detent Lock | 包装方式 | Bulk |
| 导线线规 | 14-30 AWG | 触头类型 | Male Pin |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Detent Lock |
| 安装样式 | Free Hanging | 排数 | 1 |
| 封装形式 | Receptacle (Cap) | 壳体材料 | Nylon |
| 总长度 | 30.48 mm | 包装数量 | One Piece Housing |
| 端接样式 | Wire | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Clear | 外径 | :7.6mm |
| 触点数 | 1 | 接触件端接 | Crimp |
| 位数 | 1 | 典型触点布局 | In-Line |
| 接触镀层厚度 | 2.13 [0.084] | 线规或范围 - AWG | 30-14 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | :Mate-N-Lok |
| CAD图纸 | 3D CAD Model | 产品子类型 | Housing |
| 电路数 | 1 | 适用产品/相关产品 | :Commercial MATE-N-LOK Connectors |
